TDT RZ2 Manual page 473

System 3
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13

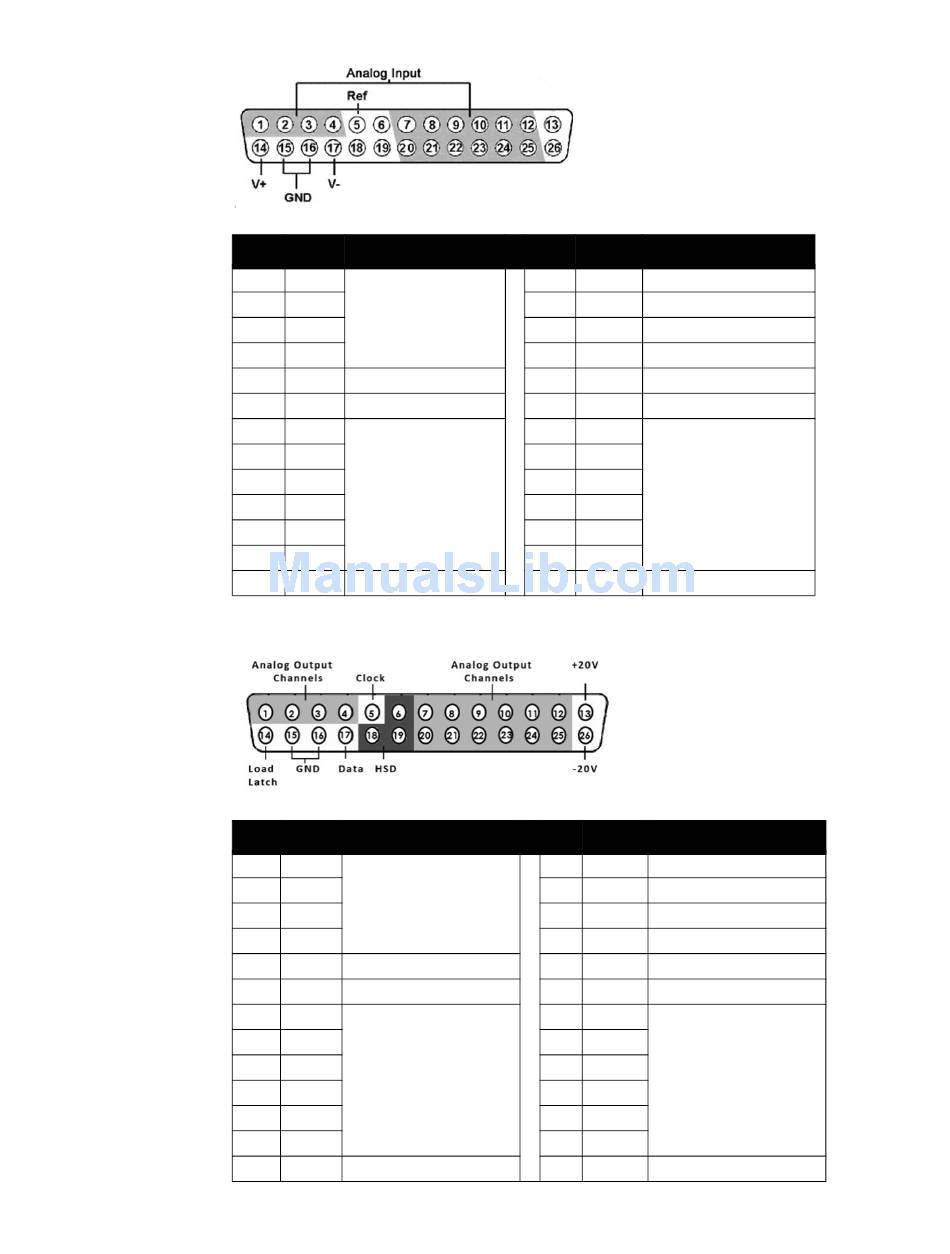

DB26 Stimulator Connector
Pin
1 S1
2 S2
3 S3
4 S4
5 Clock
6 HSD
7 S5
8 S7
9 S9
10 S11
11 S13
12 S15
13 +20V
Name Description
A1 Analog Input Channel
Number Ch 1-4
A2
A3
A4
REF Reference Pin
NA Not Used
A5 Analog Input Channel
Number Ch 5, 7, 9,
A7
11, 13, and 15
A9
A11
A13
A15
NA Not Used
Name Description
Stimulator Channels
Ch 1-4
Digital Clock
Stimulator Detect
Stimulator Channels
Ch 5, 7, 9, 11, 13, and
15
+20V
Pin Name Description
14 V+ Positive Voltage
15 GND Ground
16 GND Ground
17 V- Negative Voltage
18 NA Not Used
19 NA Not Used
20 A6 Analog Input Channel
Number Ch 6, 8, 10,
21 A8
12, 14, and 16
22 A10
23 A12
24 A14
25 A16
26 NA Not Used
Pin Name Description
14 LL Load/Latch
15 GND Ground
16 GND Ground
17 Data Digital Data
18 HSD Stimulator Detect
19 HSD Stimulator Detect
20 S6 Stimulator Channels
Ch 6, 8, 10, 12, 14,
21 S8
and 16
22 S10
23 S12
24 S14
25 S16
26 -20V -20V
SH16 Switchable Headstages
10-59
