TDT RZ2 Manual page 61

System 3
The following table provides a quick overview of the amplifier and analog I/O
features and how they must be accessed during circuit design. When the
RZ5_AmpIn_MC and RZ5_AmpIn macros are not used, reference the table and be
sure to use the appropriate component, channel offset, scale factor and so forth.
Also, see the
Analog I/O
A Inputs
DAC
Outputs
Optical
Amp-A
Optical
Amp-B
Onboard Analog I/O
The RZ5 is equipped with four channels of 16-bit PCM D/A and four channels of
16-bit PCM A/D. All 8 channels can be accessed via front panel BNCs marked A
and DAC or via a 25-pin analog I/O connector. See "RZ5 Technical Specifications"
on page 1-59 for the DB25 pinout.
Fiber Optic Preamplifier Ports
The RZ5 acquires digitized signals from a Medusa preamplifier over a fiber optic
cable. This provides loss-less signal acquisition between the amplifier(s) and the
base station. Two fiber optic ports are provided to support simultaneous acquisition
from up to two preamplifiers. Each port can input up to 16 channels at a maximum
sampling rate of ~25 kHz.
The fiber optic ports can be used with any of the Medusa preamplifiers including the
RA16PA, RA4PA, or RA8GA. The channel numbers for each port begin at a fixed
offset regardless of the number of channels available on the connected device.
Channels are numbered as follows:
Amp-A
Amp-B

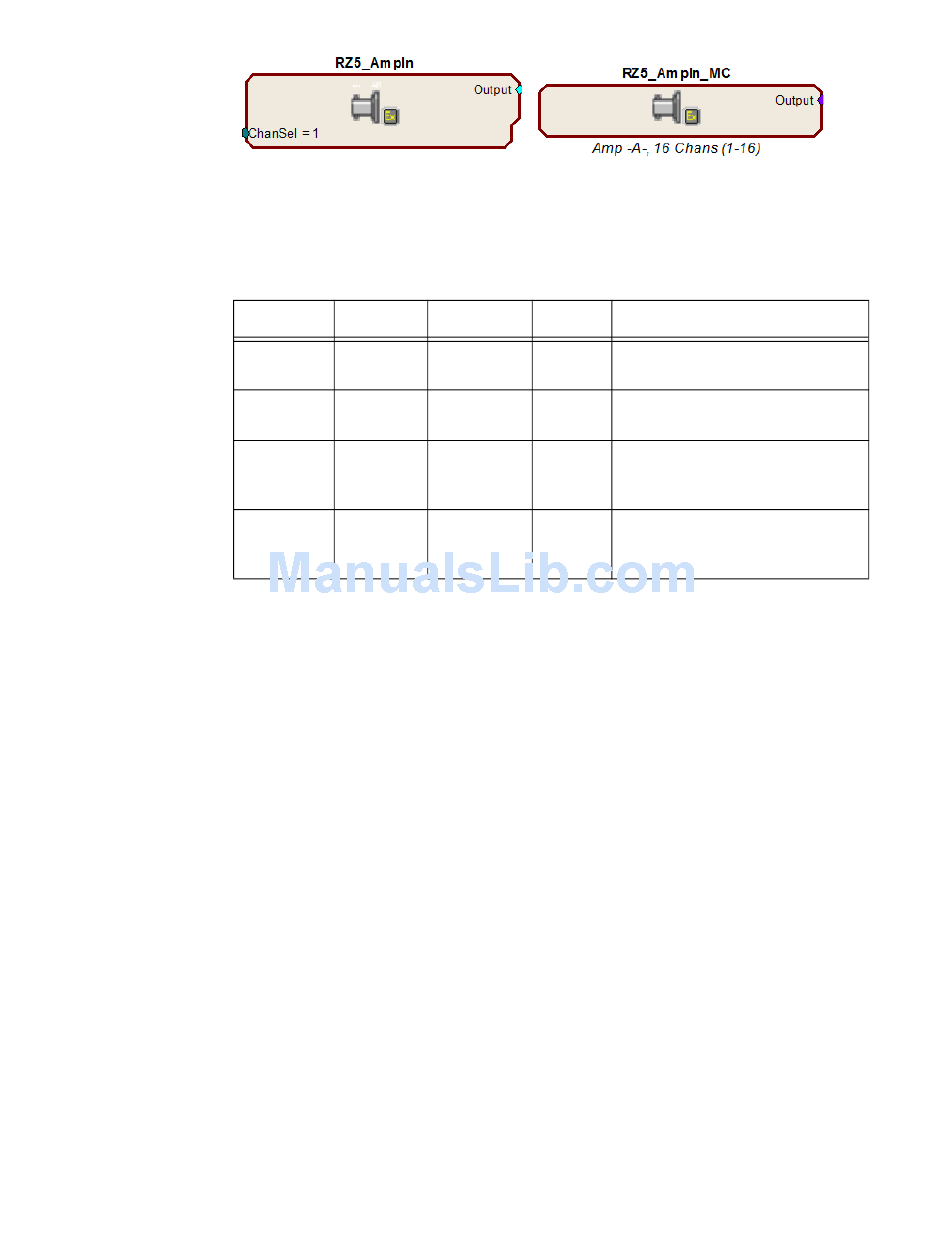

Note: When using the RZ5_AmpIn_MC and RZ5_AmpIn macros, the necessary scale factors
and channel offsets for configuring the fiber optic ports are automatically applied.
RPvdsEx Manual
for more information on circuit design.
Description Components
Analog AIn
Input
Analog DacOut
Output
Medusa AIn
PreAmp
Input
Medusa AIn
PreAmp
Input
17 – 32
33 – 48
Chan. Notes
1 - 4 Accessed through A Input BNCs or
Analog I/O labeled DB25
9 - 12 Accessed through DAC Output
BNCs or Analog I/O labeled DB25
17 - 32 When the RZ5_AmpIn_MC or
RZ5_AmpIn is NOT USED, apply
a scale factor of .000833
33 - 48 When the RZ5_AmpIn_MC or
RZ5_AmpIn is NOT USED, apply
a scale factor of .000833
RZ5 BioAmp Processor
1-55
