Splitters

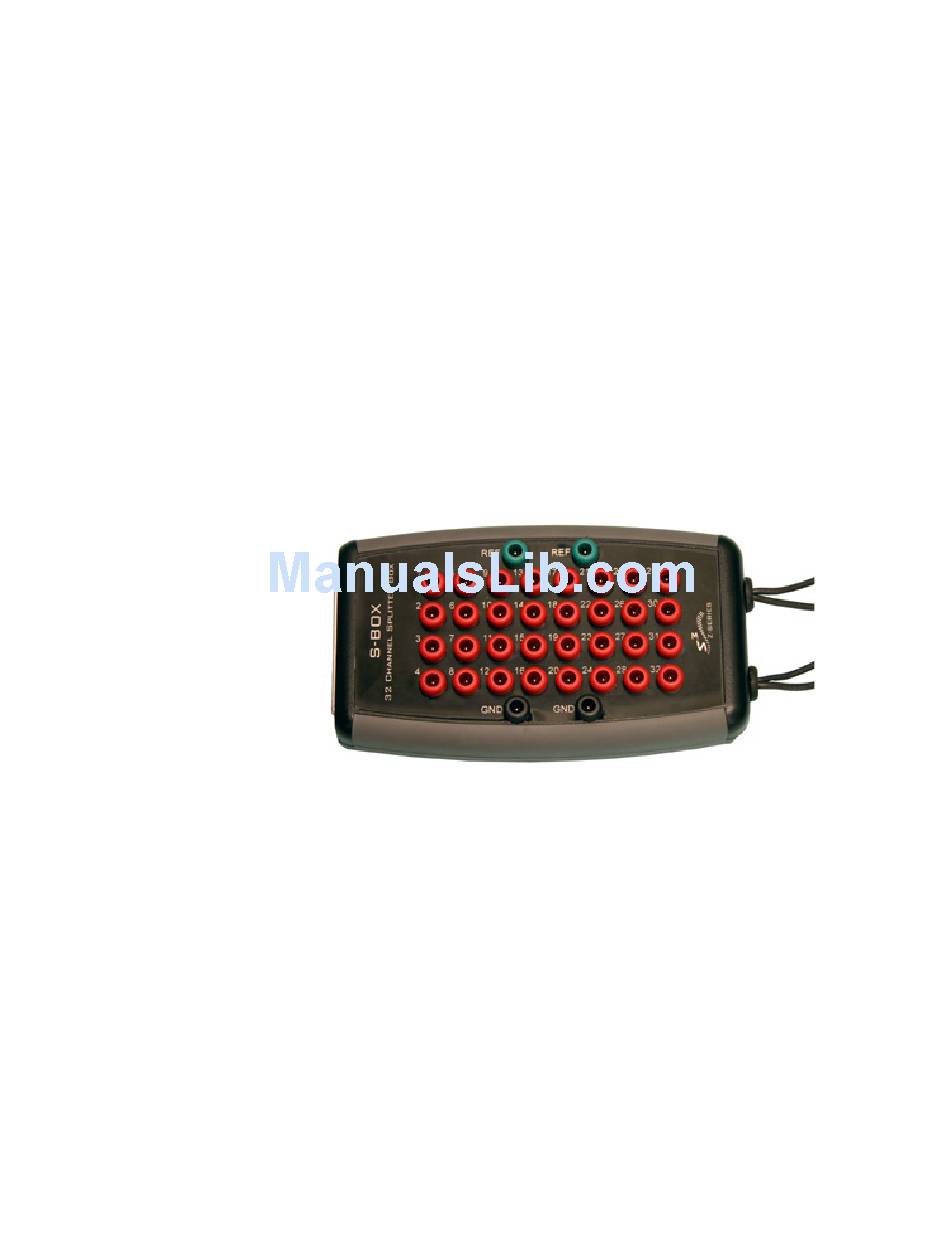

S‐BOX ‐ Amplifier Input Splitter
The S-BOX is a 32-channel passive signal splitter for use with the PZ3 Low
Impedance Amplifier. The splitter provides a simple and effective means of routing
low impedance biological signals to both a TDT acquisition system and a parallel
recording system.
Four DB26 output connectors provide direct connection to a PZ3 amplifier and a
single DB37 provides a parallel output connection. Bank letters as well as channel
number ranges are labeled on all the DB26 connectors (i.e. Bank A Channels 1-
8).
DB37
Connector
Important! The S-BOX is NOT FDA approved.
The splitter uses standard 1.5 mm safety connectors for input from electrodes. Front
panel numbering of these inputs corresponds to TDT amplifier channels in Shared
Differential mode.
Important! The S-BOX DOES NOT support Individual (True) Differential mode. Contact TDT if
differential recording is required.
12-25
DB26
Connectors
