3-14

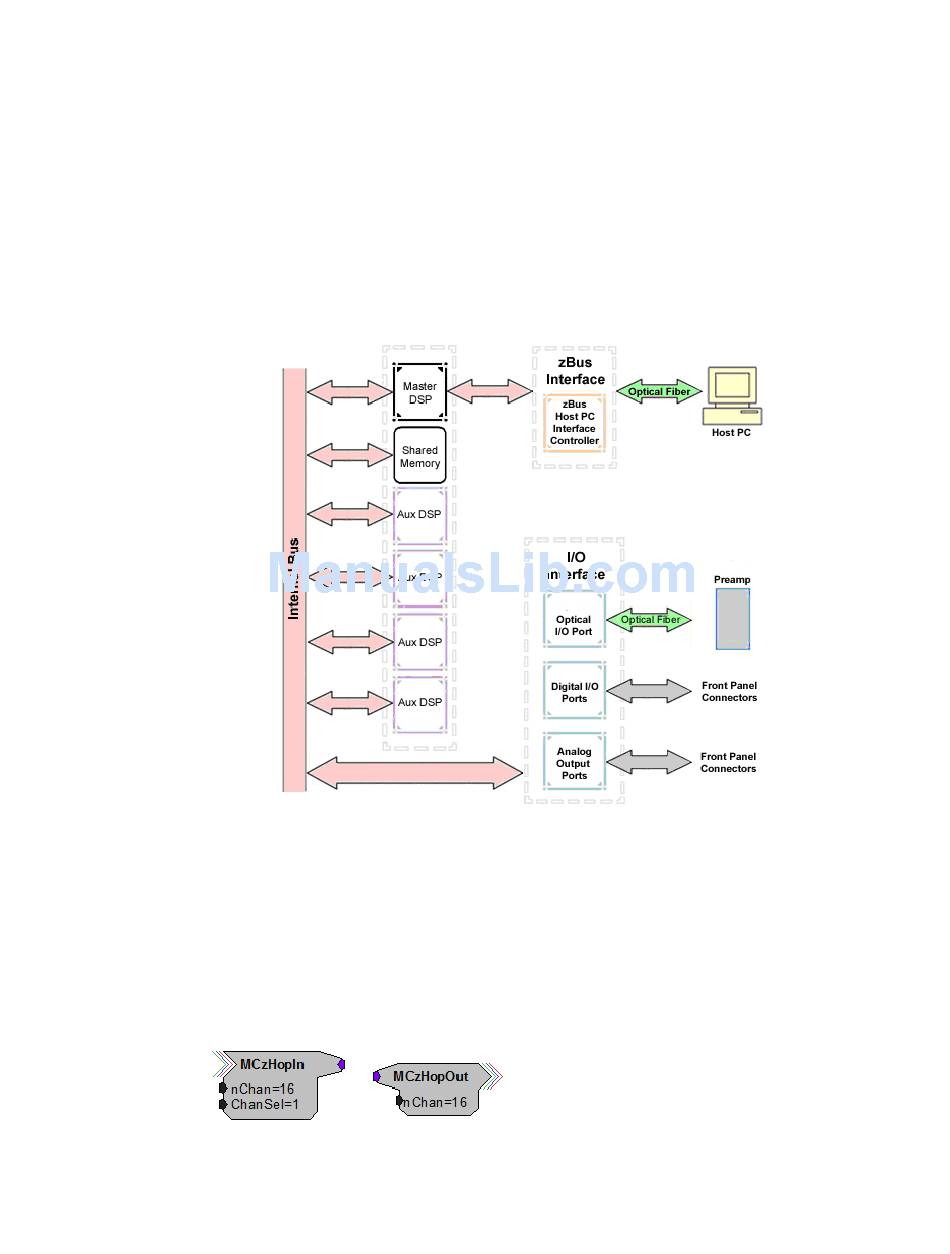

distributed across multiple processors and enables data to be transferred to the PC
quickly and efficiently. The DSPs include one master and one or four auxiliary
DSP(s). 128 MB SDRAM of system memory is shared by all DSPs. When
designing circuits the maximum number of components for each RX DSP is 256.
Each DSP communicates with an internal bus to send and receive information from
the I/O controller and the shared memory.
system boot up and operation. The master DSP also acts as the main data interface
between the zBus (host PC) and the multi-DSP environment.
Because the zBus communicates only with the master processor, these devices
operate most efficiently when the circuit related processing tasks assigned to the
master DSP are minimized, allowing more processor power (cycles) for
communication and overhead tasks.
The RX6 contains a DB25 connector for interfacing with 24 bits of digital I/O and
four BNC connectors for interfacing with four channels of analog I/O. An optional
fiber optic Medusa preamp port enables connections for up to 16 channels of analog
input.
Distributing Data Across DSPs
In RPvdsEx data can be transferred between each of the auxiliary DSPs as well as
the master DSP using zHop components.
RX6 Multifunction Processor
The master DSP supervises overall
System 3
