TDT RZ2 Manual page 53

System 3
Headphone Output
Electrostatic Speaker Output

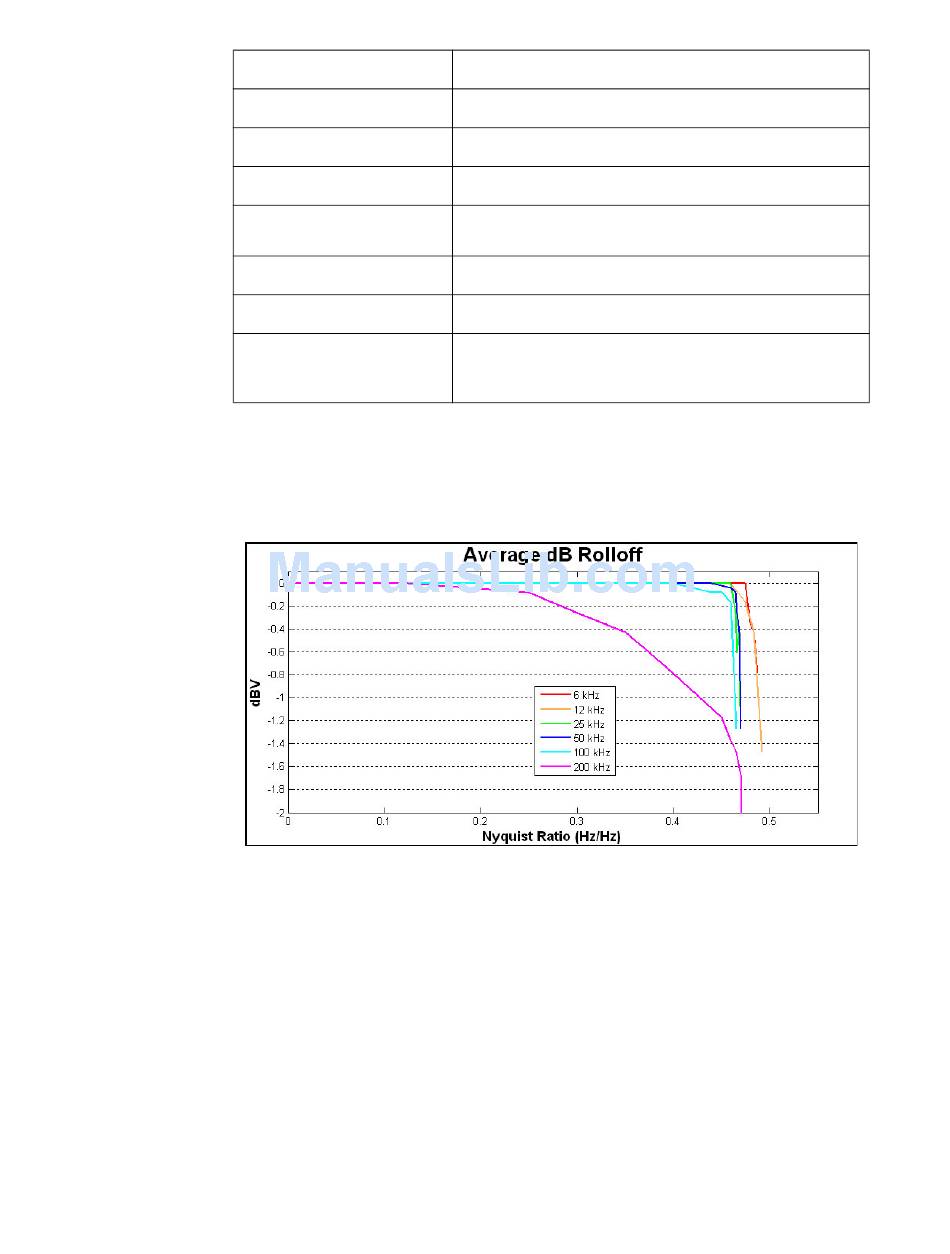

D/A dB Rolloff Diagram
This graph shows the dB rolloff for the RZ6 with varying sampling frequencies for the
D/A. The sample delay remains constant for varying frequencies.
D/A Power Output Diagram
This graph shows the power output for the RZ6 with varying driving frequencies for
the D/As when driving a four Ohm load. Driving higher impedance loads will reduce
spectral variation.
115 dB (20 Hz to 80 kHz)
Signal Noise
< 0.02% at 1 Watt from 50 Hz to 100 kHz
THD
20 μV rms
Noise Floor
10 kOhm
Input Impedance
1 Ohm
Output Impedance
0.5 Ohm ganged
2 channels
1 Ohm
Output Impedance
2 channels
Note: For further information on speaker specifications,
"EC1 Technical Specifications" on page 16-12.
1-47
RZ6 Multi I/O Processor
