TDT RZ2 Manual page 542

13-24

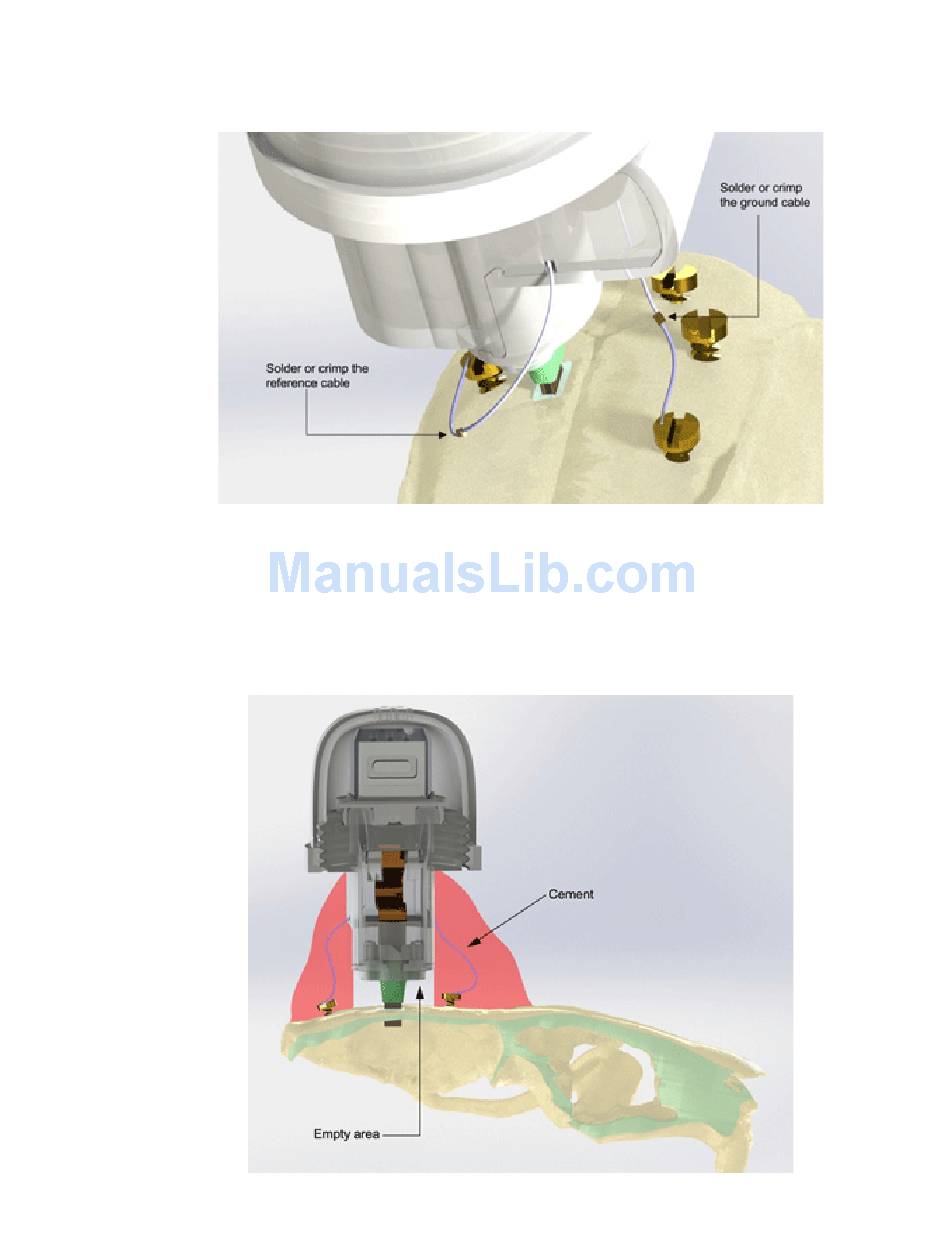

Remove the head and the back, and save only the crimping part, then use it to
carefully crimp together the two wires. Applying too much force will cut the wire;
applying too little will result in a poor and noisy connection.
Step 9 – Apply cement.
With a syringe, apply dental cement (such as SEcure: self-etching dual-cure resin
cement, from Sun Medical) around the microdrive and the screws. Be sure to cover
the ground and reference wires with the cement, but leave an empty space so the
cement won't interfere with the movement of the array holder.
Procedure for zDrive Implantation and Maintenance
System 3
