TDT RZ2 Manual page 265

System 3 6-57

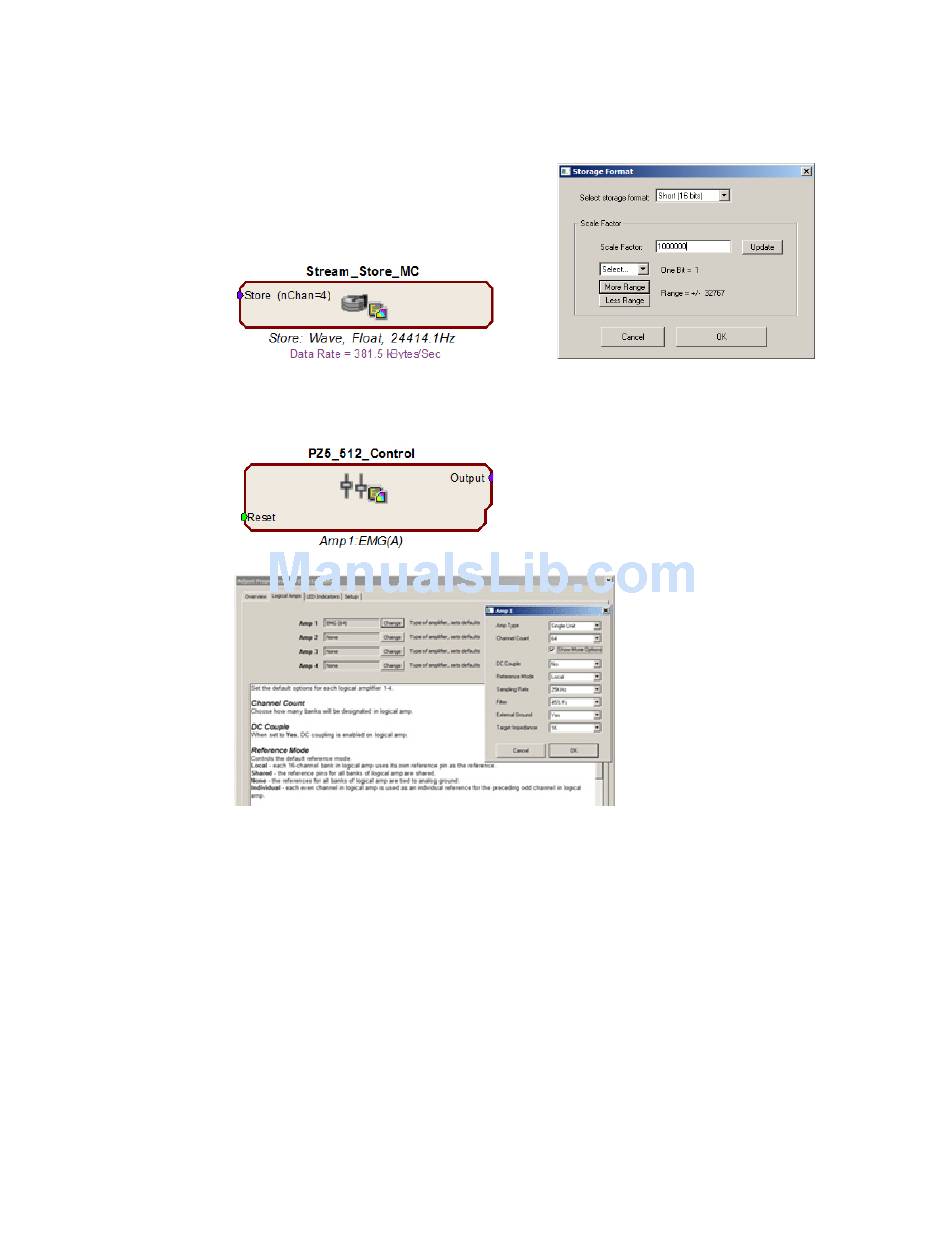

Stream_Store_MC2 if writing into a data tank, and Stream_Server_MC or
Stream_Remote_MC if streaming to an RS4 or PO8e. The configuration options are
available in the macro properties dialog and can be accessed by double-clicking the
macro in the RPvdsEx circuit diagram, then clicking the Store Format button on the
Options tab.
AC coupling can be set using the touch screen configuration options or on the
Logical Amp tab of the PZ5M_Control macro properties dialog.
These changes are required only when recording 128 channels at 50 kHz. In every
other case, the Float (32 bits) format should be used to utilize the full bit
resolution of the PZ5M.
PZ5M Medically Isolated NeuroDigitizer
