ZCA‐UP24 24‐Channel Plextrode® U‐Probe to
ZIF‐Clip headstage

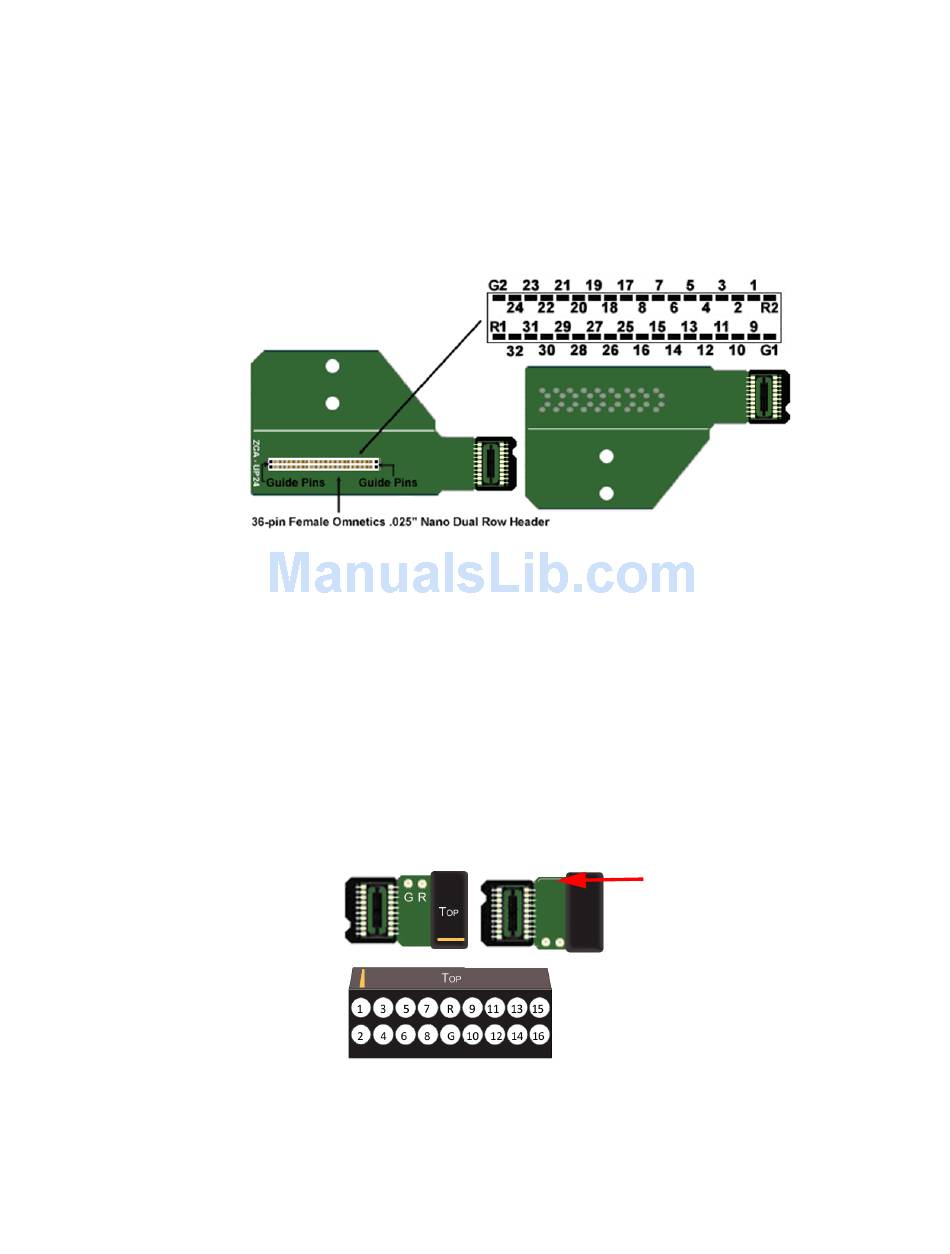

The ZCA-UP24 adapter connects a 24-channel acute Plextrode® U-Probe connector
to a 32-channel ZIF-Clip® headstage. The adapter includes mounting holes for
attachment to a micromanipulator. Configuration for single-ended or differential
operation is provided on the electrode. Refer to the Plextrode documentation for
jumper configurations.
Pinouts are looking into the connector and reflect the preamplifier channels.
ZCA‐MIL16 ZIF‐Clip® Headstage to Mill‐Max con‐
nector (16 Channels)
The ZCA-MIL16 adapter connects a 18-channel Mill-Max based probe to a 16-
channel ZIF-Clip® headstage. By default, the inputs are single ended, with Reference
(R) and Ground (G) tied together. A jumper is provided to give the user the
option of making the inputs differential. To make the inputs differential, sever the
jumper trace on the board between R and G (shown below).
Pinouts are looking into the connector and reflect the preamplifier channels.
Mill-Max Connector Specifications:
Pitch:
Row Spacing:
ZIF-Clip® Headstage Adapters
0.050" (1.27 mm)
0.050" (1.27 mm)
System 3
Jumper
Trace
