Options include:
Channels Drop-Down List

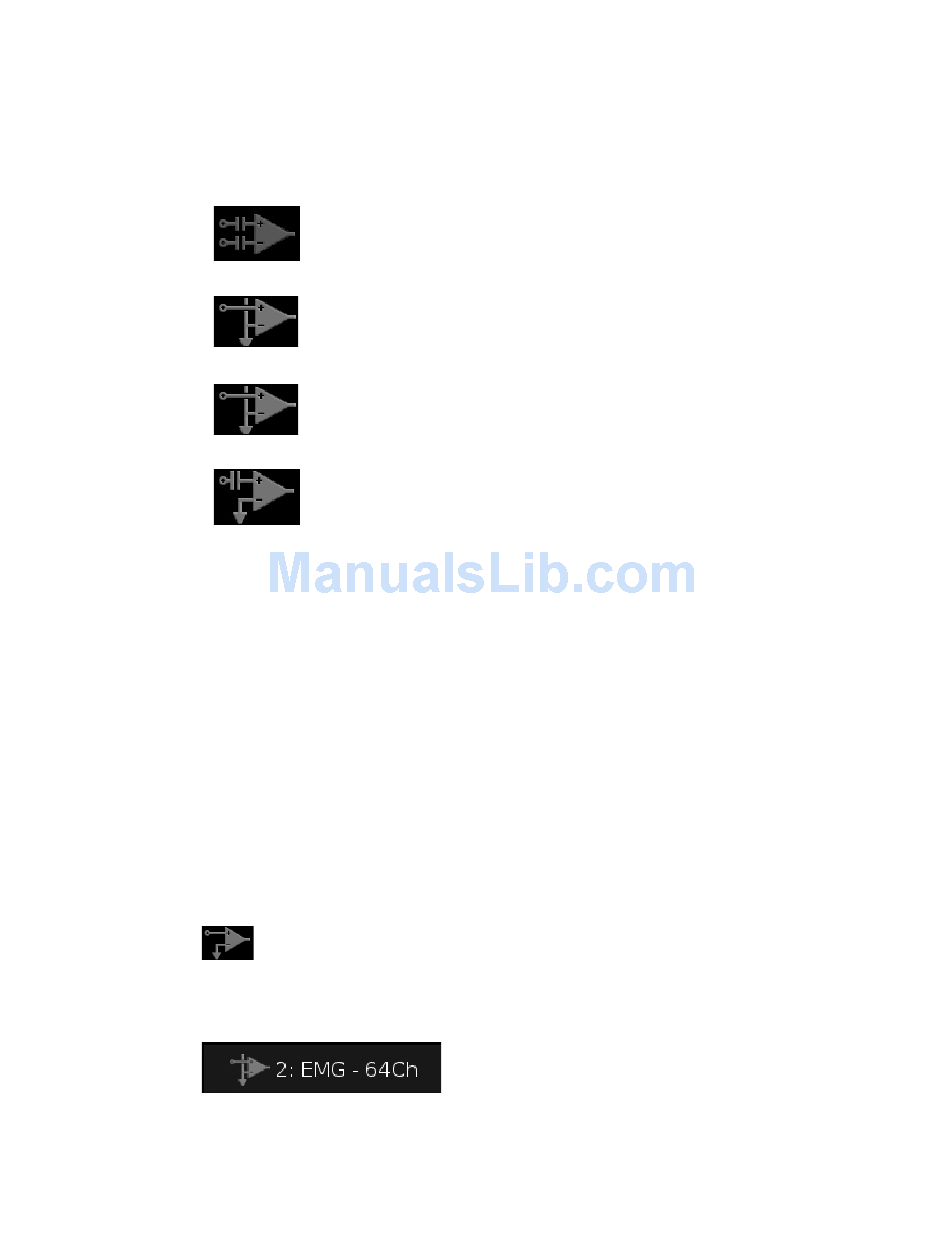

Amp Types
Icon
OK Button
Save selections and open the Configuration Options screen.
Delete Button
Delete the logical amplifier and display a confirmation screen before returning to the
Main Configuration screen.
Note: Only available after a logical amplifier has already been created.
Cancel Button
Return to Main Configuration screen without making changes.
Configuration Options Screen
The Configuration Options screen is displayed after selecting the Amp Type when
adding a new logical amplifier or it can be displayed by touching the
configuration icon on an existing logical amplifier on the Main Configuration
Option screen.
Amp Type Button
The area at the top of the screen displays the Amp Type for the selected/new
logical amplifier and includes the logical amplifier number, configuration type and
number of channels.
PZ5M Medically Isolated NeuroDigitizer
Select the number of channels in the logical amplifier (by
banks of 16 channels).
Label Defaults
Electromyography
Referencing: Diff (true differential)
EMG
Coupling: AC
Sample Rate: 750Hz
Electroencephalography
Referencing: Shared
EEG
Coupling: AC
Sample Rate: 750Hz
Local Field Potentials
Referencing: Shared
LFP
Coupling: AC
Sample Rate: 3kHz
Single Unit
Referencing: Local
SU
Coupling: AC
Sample Rate: 25kHz
