Important! The corresponding channels from each probe connection are tied together, so that
channel 1 of the Chronic connector, the OmCon connector, and the Acute connector
are all tied to channel 1 of the nanoZ™ connector. See pinouts below for more
detail.

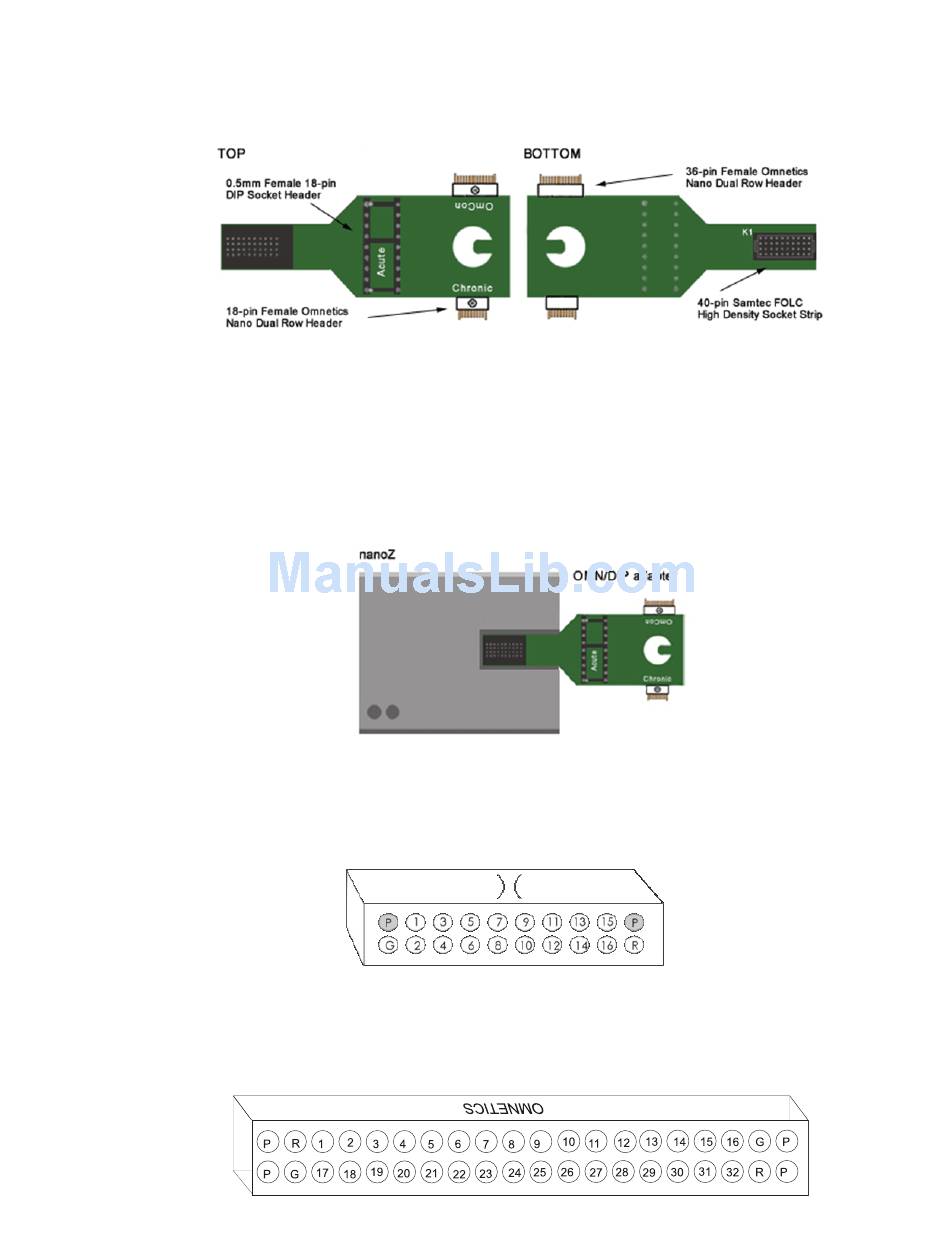

Connecting the Adapter to the nanoZ™
After configuring the nanoZ™ impedance tester as directed in the nanoZ™ User
Manual, connect the adapter to the Samtec connector closest to the center, ensuring
it is firmly seated. The adapter should cover both nanoZ™ Samtec connectors (as
shown below).
Chronic Pinout
18-pin female Omnetics nano dual row header (pinout looking into the connector)
OmCon Pinout
Probe Adapters
System 3
