zBUSmon Interface Testing Software
The zBus Monitor program is a tool used to test the USB, Gigabit, or Optibit
connection to System 3. It is also be used to update the microcode firmware on
programmable devices.
This program is installed in the C:\TDT\zDrv3 directory by default and a shortcut is
added to the Desktop and to the TDT Sys3 Directory in the Start menu.

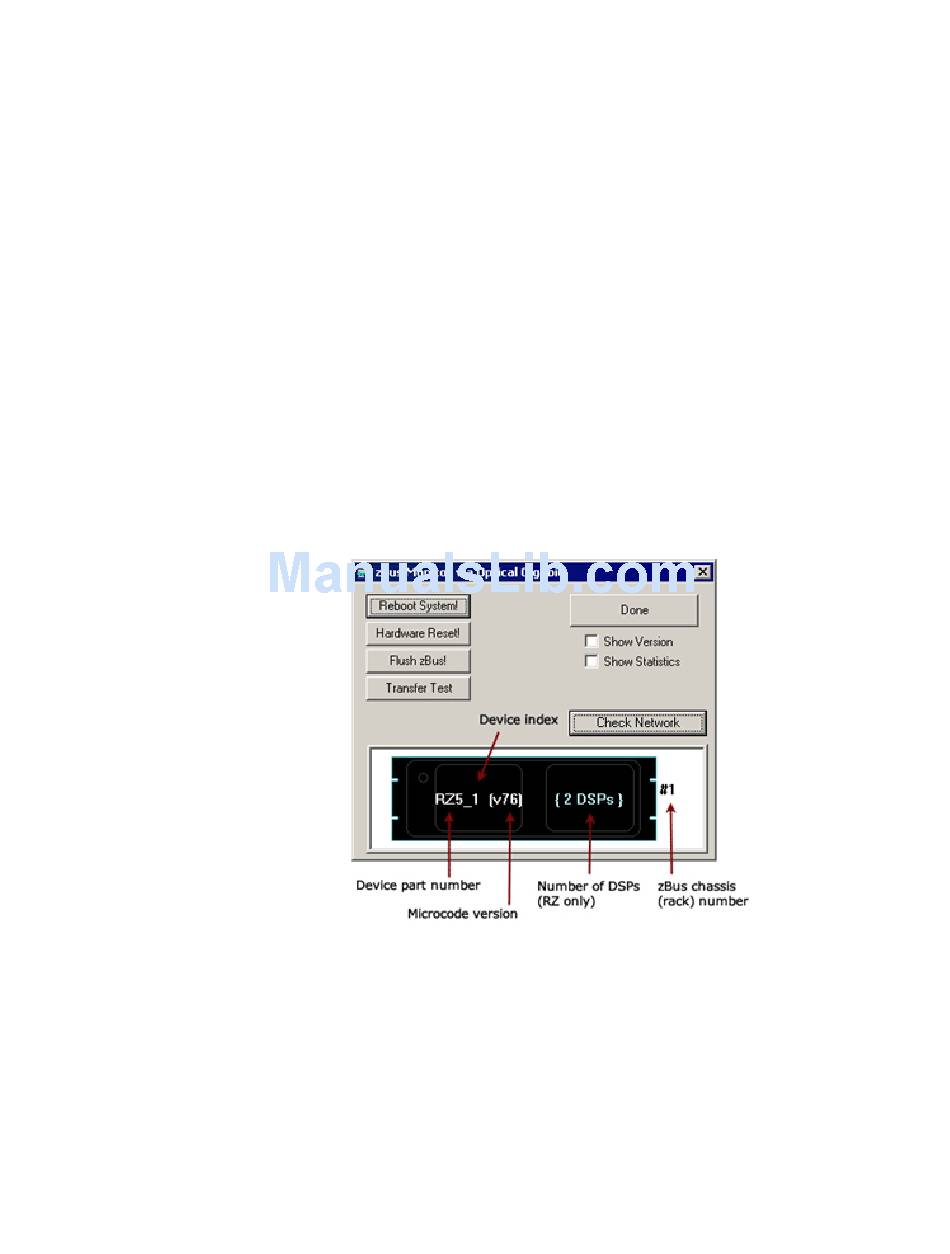

The zBUSmon Window
When the utility is run a small monitor window is opened. All correctly connected
zBus or built-in device chassis housing a programmable device, such as the RZ2
and PA5, are represented in the system diagram. Chassis housing non-programmable
devices, such as the SM5 or HB7, are not displayed.
The device part number and index for each device along with the zBus chassis
numbers are displayed in the system diagram. The version number of each
programmable device's firmware (TDT Microcode) is also displayed within
parentheses next to each device. See "Updating the Microcode " on page 21-6, for
more information about the microcode.
For RZ devices, the number of installed DSPs detected is displayed on the right side
of the device in the diagram. "{DSP ERROR}" is displayed in red if a DSP is
expected but not identified.
