TDT RZ2 Manual page 256

6-48

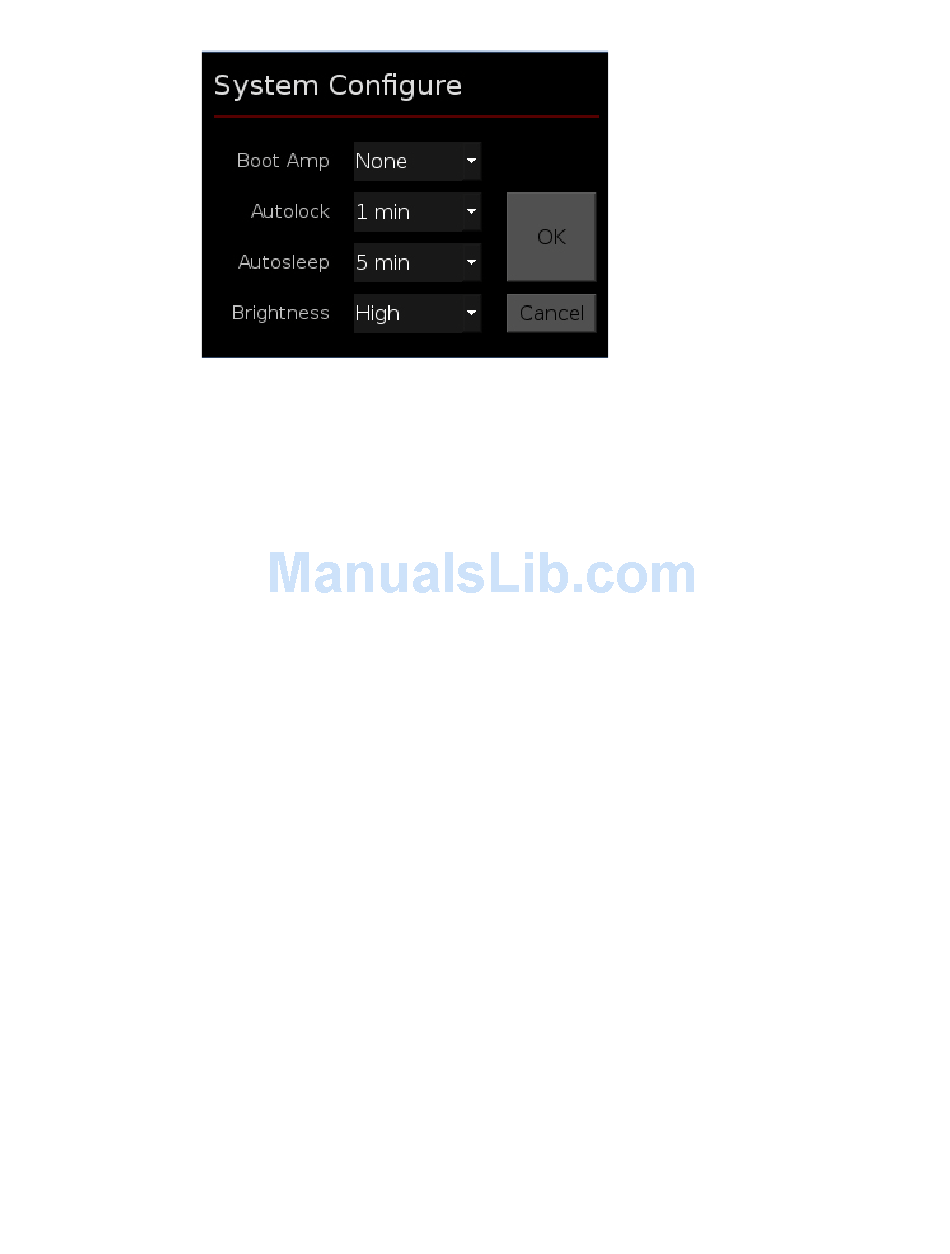

Settings include:
Boot Amp
Autolock
Autosleep
Brightness
Wireless
OK Button
Save changes and return to the System Setup screen.
Cancel Button
Return to the System Setup screen without saving changes.
System Info Screen
The System Info screen is displayed by touching Info on the System Setup screen.
Use the scroll bar to see all of the version numbers.
PZ5M Medically Isolated NeuroDigitizer
Select the default logical amplifier settings when the PZ5M is
first powered on.
None – boots with no logical amplifiers specified.
PZ2 – all banks configured as one Single Unit amplifier.
PZ3 – all banks configured as one EEG amplifier.
PZ3 Diff – all channels configured as one EEG amplifier in
differential referencing mode.
Last – reboots into the last used configuration.
Smart – Does not overwrite any existing logical amplifier
configuration on boot. For example, if you configure the
logical amplifiers via the PZ5M_Control macro before the
PZ5M boots then the PZ5M will NOT overwrite that
configuration. If the PZ5M boots and NO logical amplifiers
are configured it will behave the same as Last.
Select an option to lock the configuration screen after 1, 2
or 5 min of screen inactivity or select Never to turn off
autolocking.
Select an option to turn off the screen after 5, 10 or 30
min of screen inactivity or select Never to turn off autosleep.
Select High, Medium, or Low to set touchscreen brightness.
Enable/disable the wireless connection.
System 3
