TDT RZ2 Manual page 144

3-12

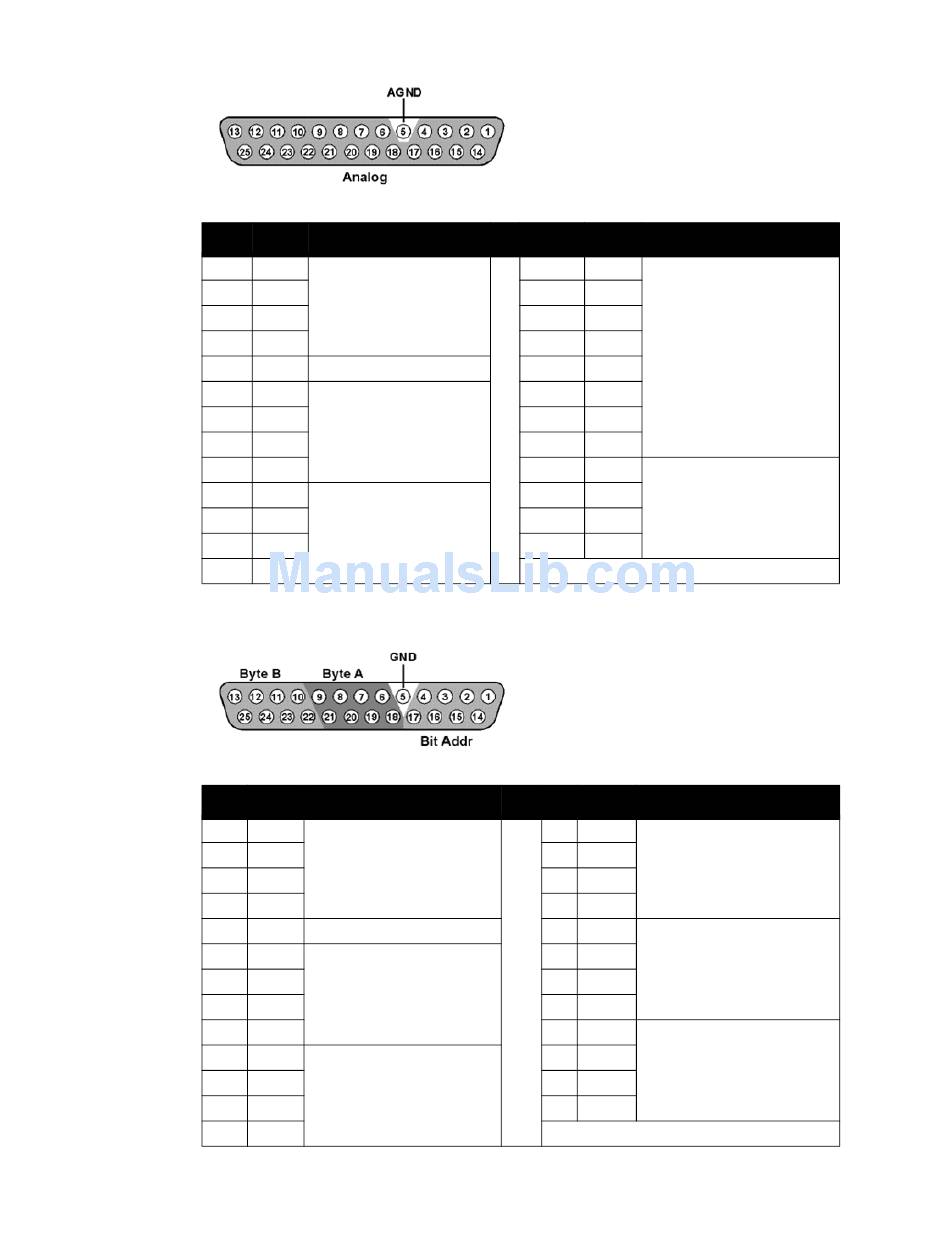

Analog I/O
Pin
1 A1
2 A3
3 A5
4 A7
5 AGND
6 A10
7 A12
8 A14
9 A16
10 A18
11 A20
12 A22
13 A24
Digital I/O
Pin Name
1 BA0
2 BA2
3 BA4
4 BA6
5 GND
6 A1
7 A3
8 A5
9 A7
10 B1
11 B3
12 B5
13 B7
RX8 Multi I/O Processor
Name Description
Analog I/O Channels
Input or Output
Depending on Custom
Configuration
Analog Ground
Analog I/O Channels
Input or Output
Depending on Custom
Configuration
Analog Outputs
Description
Bit Addressable digital I/O
Bits 0, 2, 4, and 6
Digital I/O Ground
Byte A
Word addressable digital I/
O
Bits 1, 3, 5, and 7
Byte B
Word addressable digital I/
O
Bits 1, 3, 5, and 7
Pin Name
14 A2 Analog I/O Channels
Input or Output Depending
15 A4
on Custom Configuration
16 A6
17 A8
18 A9
19 A11
20 A13
21 A15
22 A17 Analog Outputs
23 A19
24 A21
25 A23
Pin Name Description
14 BA1 Bit Addressable digital I/O
Bits 1, 3, 5, and 7
15 BA3
16 BA5
17 BA7
18 A0 Byte A
Word addressable digital I/O
19 A2
Bits 0, 2, 4, and 6
20 A4
21 A6
22 B0 Byte B
Word addressable digital I/O
23 B2
Bits 0, 2, 4, and 6
24 B4
25 B6
System 3
Description
