Data Storage Locations:

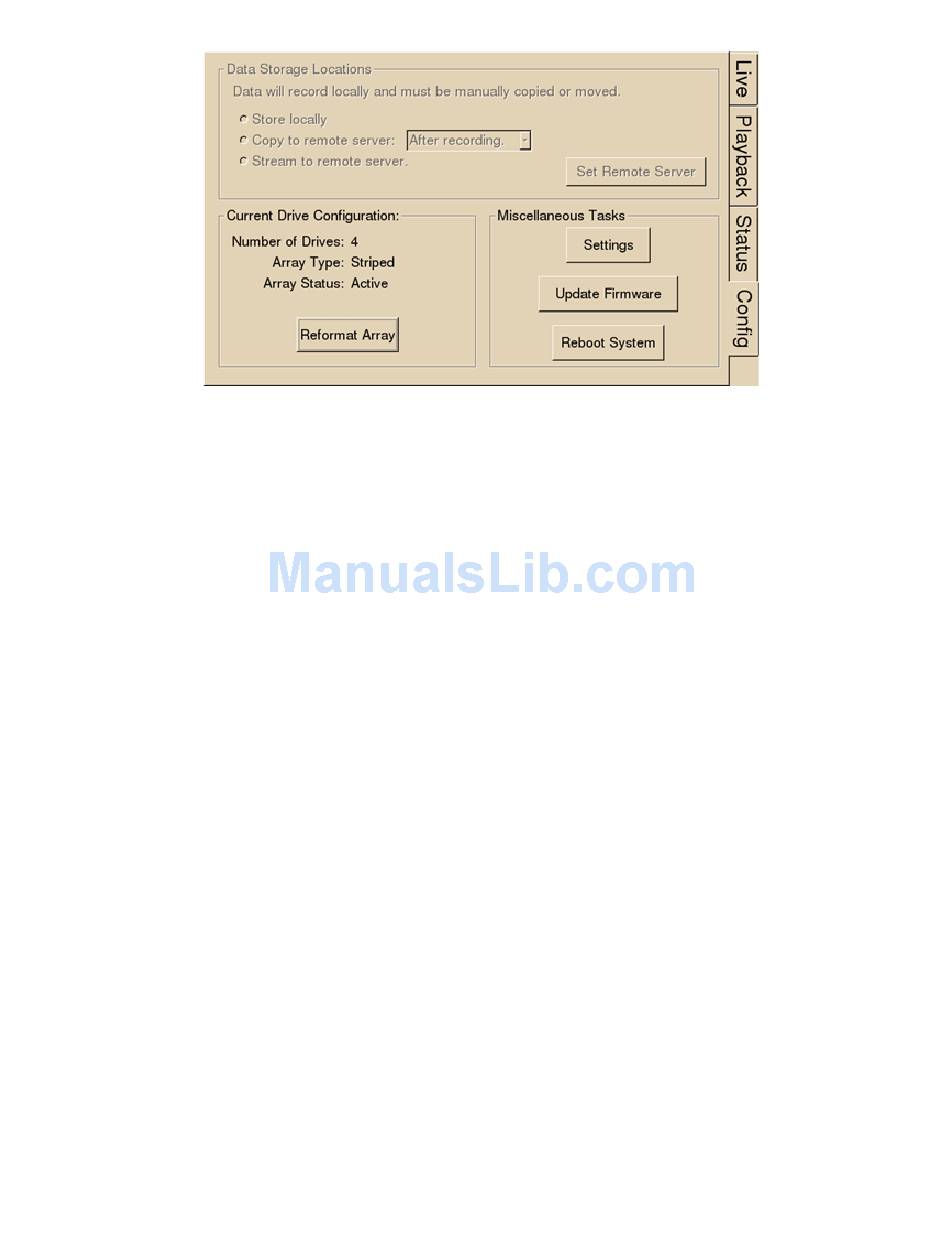

Current Drive Configuration:Displays information about the currently installed data
Number of Drives:
Array Type:
Array Status:
Reformat Array:
Miscellaneous Tasks:
Settings:
Update Firmware:
RV2 Video Processor
Not currently implemented.
Displays the number of drives currently installed.
Displays the currently configured array type and the
Striped: Array type is currently configured as striped.
Mirrored(UU): Array type is currently configured as mirrored. A U
Missing: No array type is detected.
Displays the current status of the array.
Preparing: Storage array is currently being reformatted.
Resyncing: Storage array is being reformatted as a mirrored array
N/A: Storage array is not detected.
Active: Storage array is detected and configured.
Press to prompt the reformat array dialog. This dialog
will ask for confirmation as well as the desired array
type: Striped or Mirrored. Reformatting an array will
erase all data contained in the array. Note: When
reformatting an array, the interface may become
temporarily unresponsive.
Provides options for updating the current RV2 firmware
and rebooting the system.
Press to display the settings window, then set date and
time and select unit of measure for temperature.
Press to update the RV2 firmware. Firmware is
downloaded from the TDT server and automatically
installed on the RV2. Connection to a DHCP enabled
network that has Internet connectivity is required to
retrieve any updates.
drives.
status of the drives.
indicates that a drive is up and running. A
_ indicates a drive failure.
and is currently resyncing the mirrored partitions.
