TDT RZ2 Manual page 10

1-4
The RZ2 is UL compliant, see the
information.
Software Control
TDT Synapse
device configuration.
Device programming is implemented with circuit files developed using TDT's RP Visual
Design Studio (RPvdsEx). Circuits are loaded to the processor through TDT run-
time applications or custom applications. This manual includes device specific
information needed for designing circuits. For circuit design techniques and a complete
reference of the RPvdsEx circuit components, see the

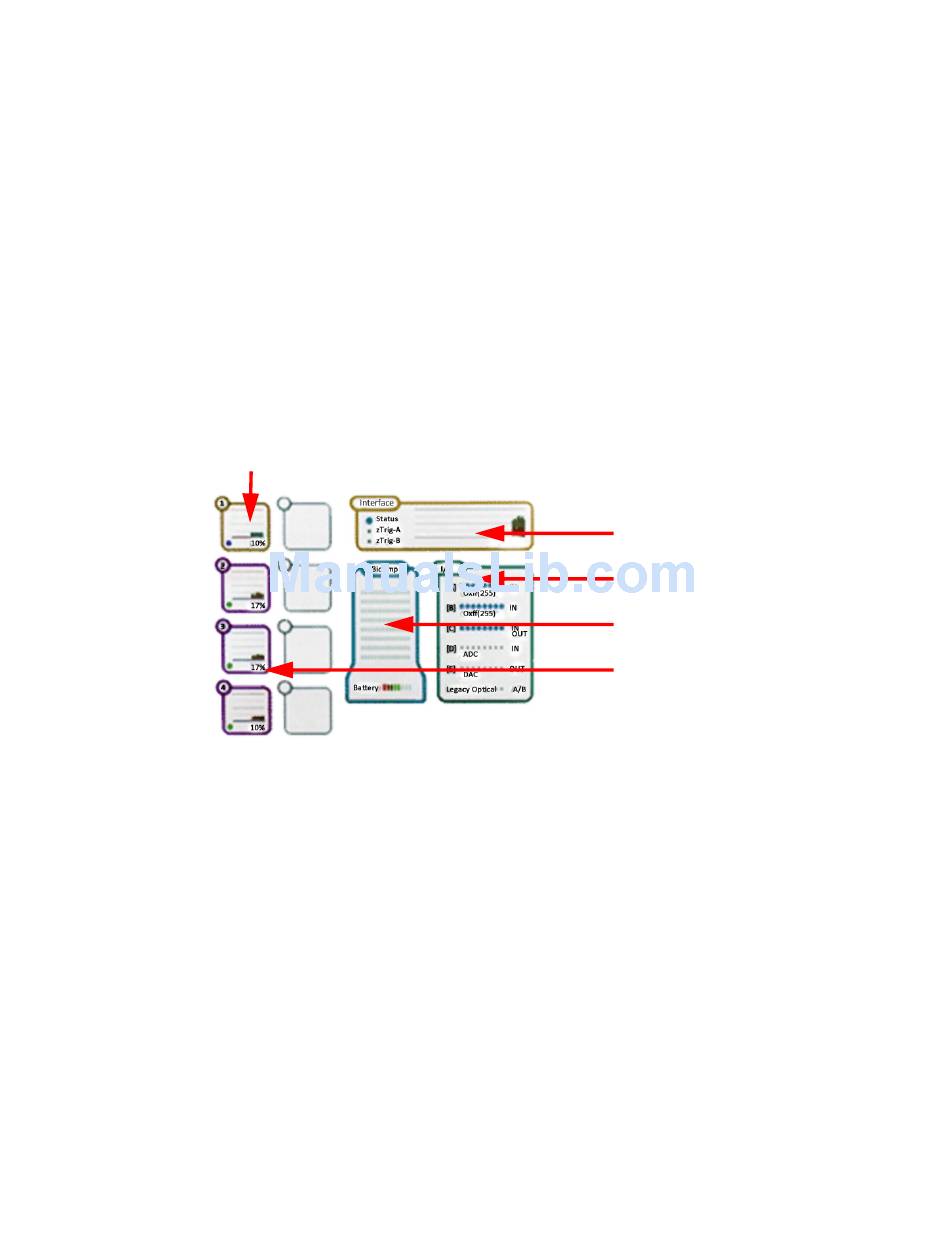

RZ2 TouchScreen
The touchscreen shows information about each DSP, the optical PC interface, a
connected PZ preamplifier, and system I/O.
RQDSP
Touch a section of the screen to display more detailed information.
Screen Element
DSPs
RZ2 BioAmp Processor
RZ2 Operations Manual
software controls the RZ2 and provides users a high level interface for
Information Displayed
A stacked histogram shows cycle usage for each DSP with the
bottom section (blue) showing the cycle usage taken up by
circuit operation and the top section (pink) showing the cycle
usage required for data transfer.
If the cycle usage surpasses 100%, a bar is drawn above the
100% line in the cycle use histogram and will persist until the
RZ2 is rebooted. For quad-core DSPs, the core with the highest
cycle usage is displayed.
System 3
for power and safety
RPvdsEx Manual
.
Interface
I/O
Amplifier Status
DSP Information
