TDT RZ2 Manual page 431

System 3

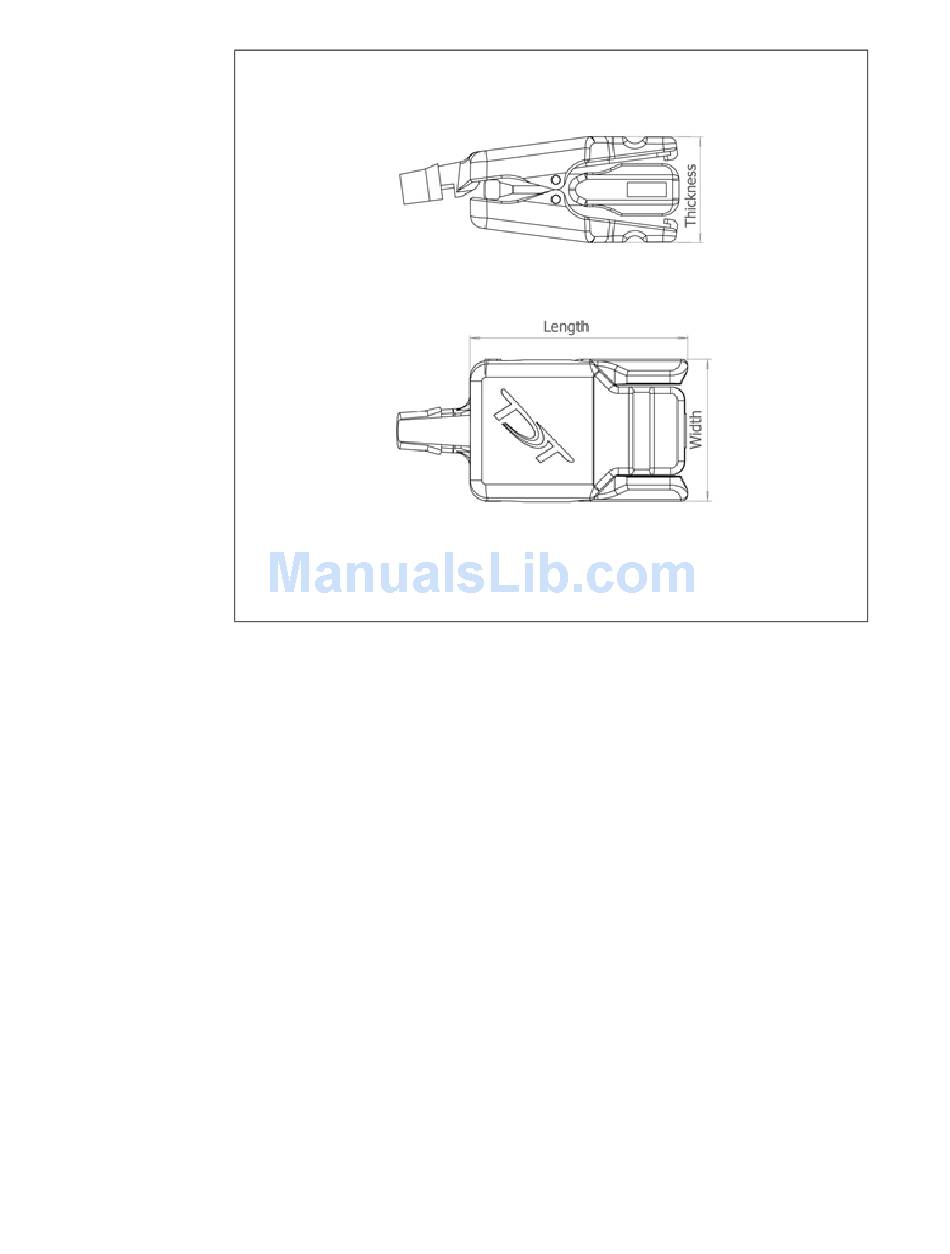

Dimensions (Approx.)
Headstage
ZD32
ZD64
ZD96
Important! When using multiple headstages, ensure that a single ground is used for all
headstages. This will avoid unnecessary noise contamination in recordings. See
"Headstage Connection Guide" on page 6-93, for more information.
Length Length
Open Closed
16.107 mm 16.050 mm
16.446 mm 16.497 mm
17.469 mm 17.562 mm
Width Thickness
Open
10.500 mm 8.137 mm
15.500 mm 12.760 mm
19.000 mm 12.577 mm
ZIF-Clip® ZD Digital Headstages
10-17
Thickness
Closed
7.400 mm
10.400 mm
10.499 mm
