TDT RZ2 Manual page 663

System 3
To cycle through the operating modes:
•
Modes of Operation
NORMAL

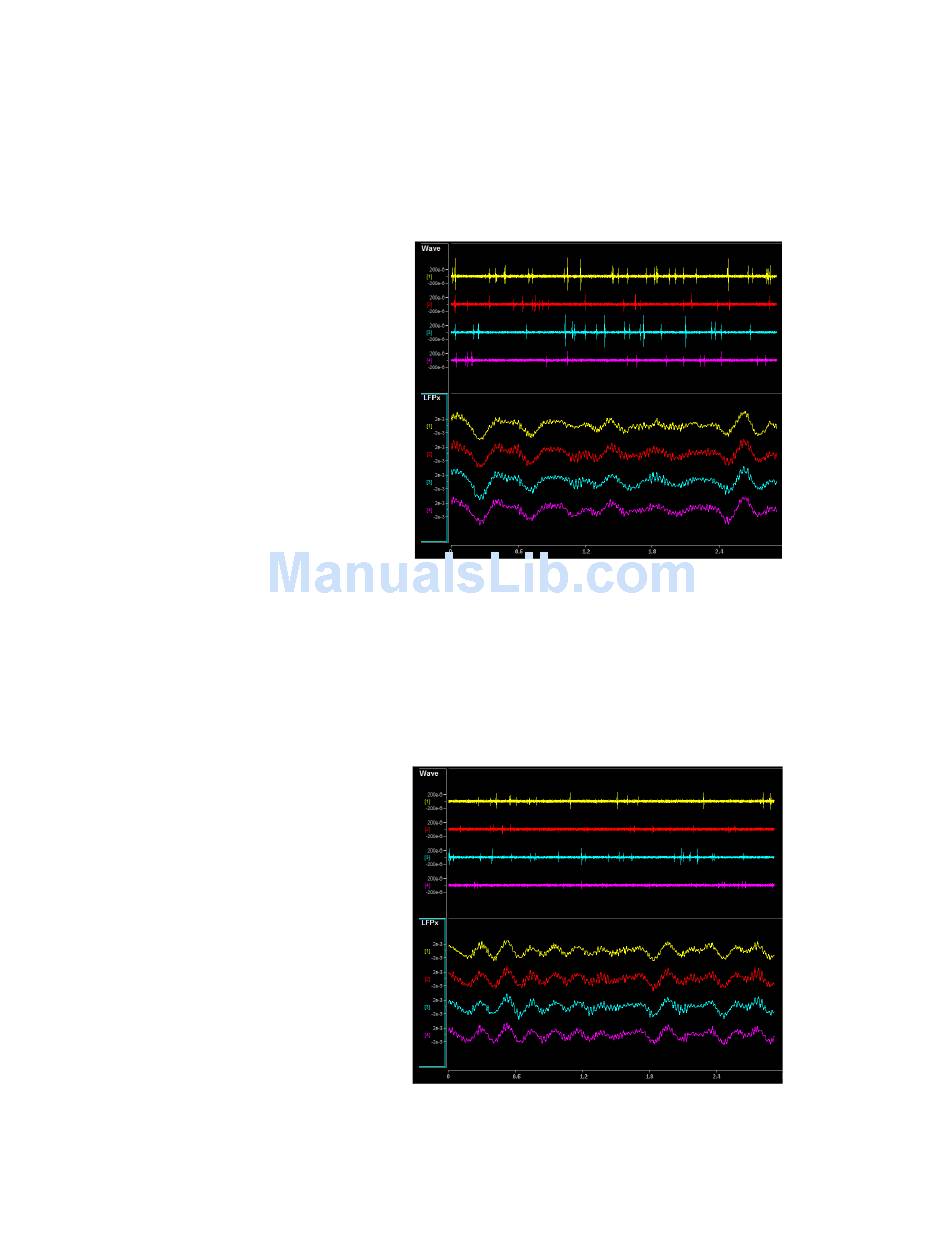

Pictured waveforms were generated by the FB128 and plotted in OpenWorkbench with
the following settings:
Wave Filter Settings: High Pass: 300 Hz, Low Pass: 5000 Hz
LFPx Filter Settings: High Pass: 0 Hz, Low Pass: 300 Hz
HASH
Pictured waveforms were generated by the FB128 and plotted in OpenWorkbench with
the following settings:
Wave Filter Settings: High Pass: 300 Hz, Low Pass: 5000 Hz
Press the Mode button. The active mode is indicated by a lit LED on the
face of the module.
Neurological waveforms, including spike waveforms and LFP.
Wave
LPx
NORMAL mode but with spikes scaled down by a factor of 2.
Wave
LPx
18-5
FB128 Neural Simulator
