TDT RZ2 Manual page 689

System 3
ETM1 Technical Specifications
Maximum Input
Frequency Response
Highpass Filter (Fc)
S/N (typical)
THD (Typical)
Cross-Talk
Attenuation

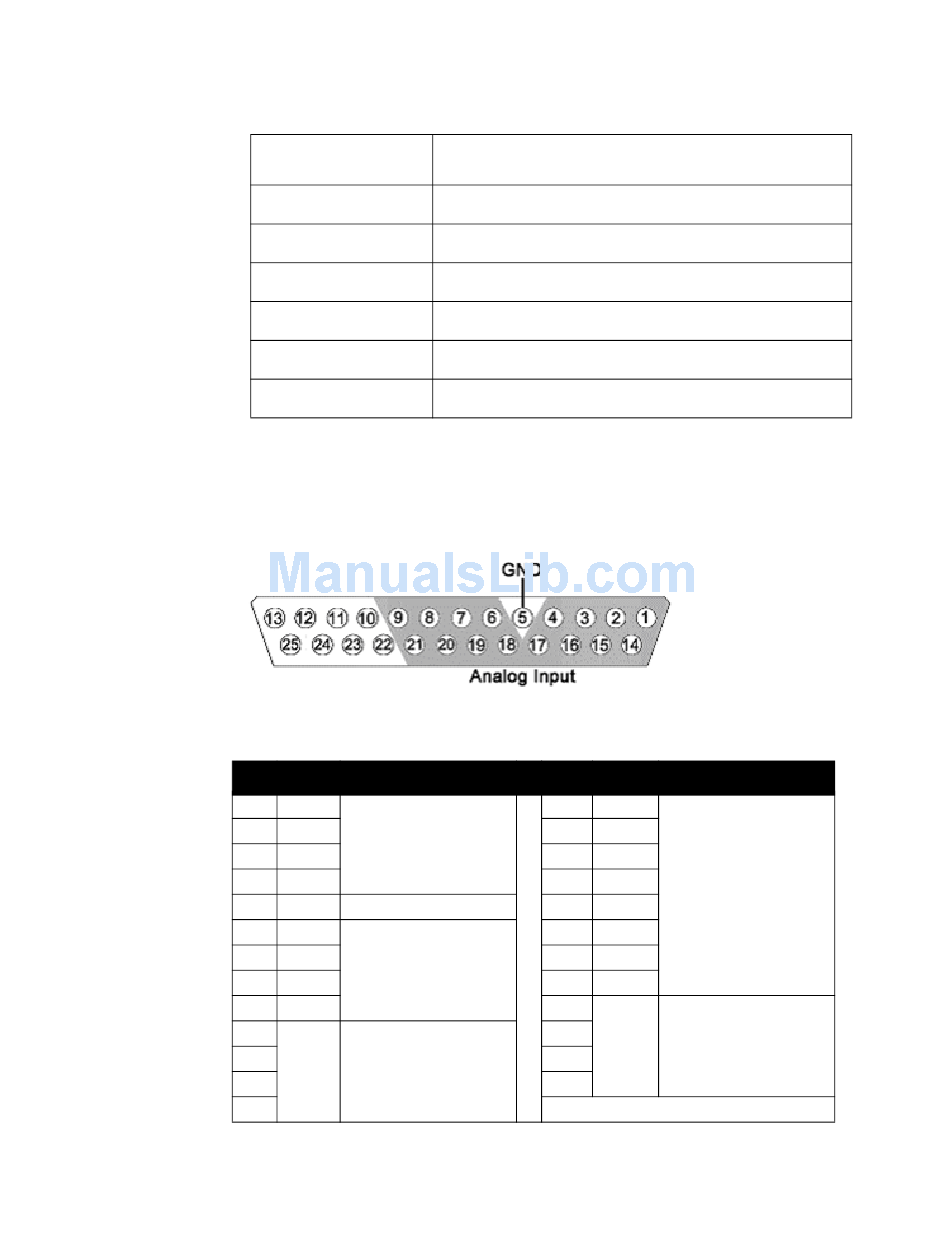

J1 DB25 Pinout
Analog input channels 1-16. The J1 connector is typically used to input signals from
the PP16 Patch Panel.
Note: Female pin-in shown.
Pin Name
1 A1
2 A3
3 A5
4 A7
5 NA
6 A10
7 A12
8 A14
9 A16
10 NA
11
12
13
Should not exceed the maximum input for your amplifier
(such as 4V for the RA16PA)
Flat from 500 - 20,000 Hz
20 Hz
70 dB
0.01% for 1 kHz input at 1 V peak-to-peak
< -70 dB
60 dB
Description
Analog Input Channels
Not Used
Analog Input Channels
Not Used
Pin Name Description
14 A2 Analog Input Channels
15 A4
16 A6
17 A8
18 A9
19 A11
20 A13
21 A15
22 NA Not Used
23
24
25
ETM1 Experiment Test Module
18-31
