Flash Intensity
To calculate the flash intensity, use the following equation:
J=1/2(0.50 μF) (Vref*100)^2
FLYSYS Technical Specifications
Includes FD1 Flash Lamp Driver, LS1130 Flashlamp, and FO1 Liquid Light Guide.
Flash Rate
Flash Duration
Trigger
Flash Intensity (max)
Charge Time
Spectrum
Input Signal (Vref)
Life
Power and Communication

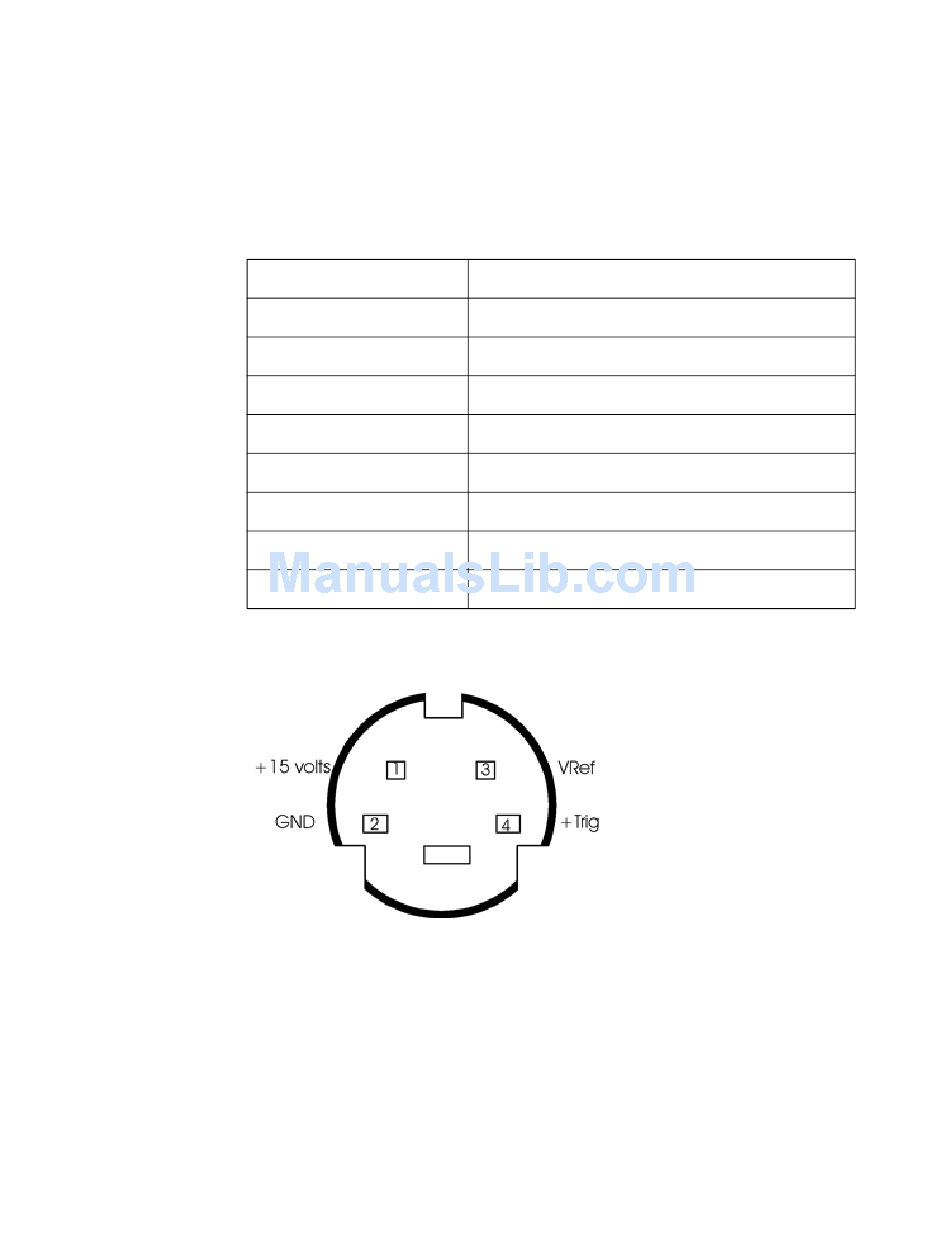

LS1130 and MVS7000 Connector Pinout
Note: Connectors are wired the same.
0.1 - 200 Hz
10 μsec
TTL (5V max)
0.235 Joules
30 msec
350 – 800 nm
4 – 10 V
10 flashes
9
zBus required for FD1
16-35
FLYSYS FlashLamp System
