TDT RZ2 Manual page 241

System 3
Standard Built-In Port
Connecting Headstages and Electrodes
Signals are input via multiple mini-DB80 connectors on the PZ5M back panel. For
high impedance recordings, most users will connect to the input connectors on the
PZ5M back panel using a DB80-DB26 adapter (shown below) or a connection
manifold. The adapter provides direct headstage connections for up to four
headstages.
For low impedance recordings, users will likely use custom cables. If using custom
connectors, see "Pinout Diagrams" on page 6-53.
Powering ON/OFF
The neurodigitizer has both an onboard battery and a connection to mains power.
The device can remain plugged in at all times, but the mains power on the back
panel must be switched to the off position for battery operation. Regular operation is
controlled by the small square power button on the face of the device.
To power on the neurodigitizer using the onboard battery:
1.
2. Press and hold the front panel power button. After one second, release the

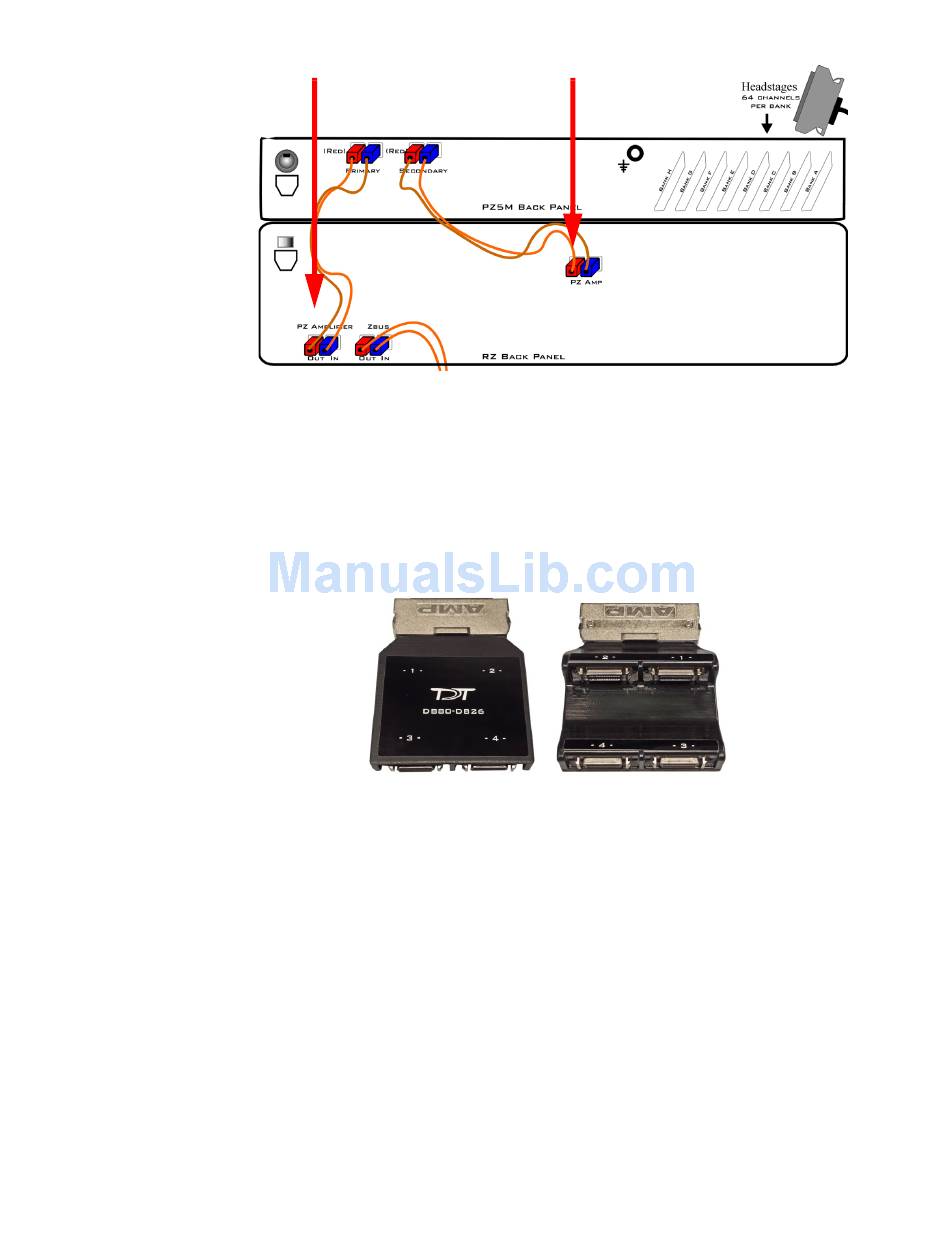

System Connection Diagram for PZ5M‐512 with RZ2
Switch back panel mains power to off.
button.
The neurodigitizer is powered on for battery for operation.
RZDSP-P Card Port
DB80‐DB26 adapter
PZ5M Medically Isolated NeuroDigitizer
6-33
