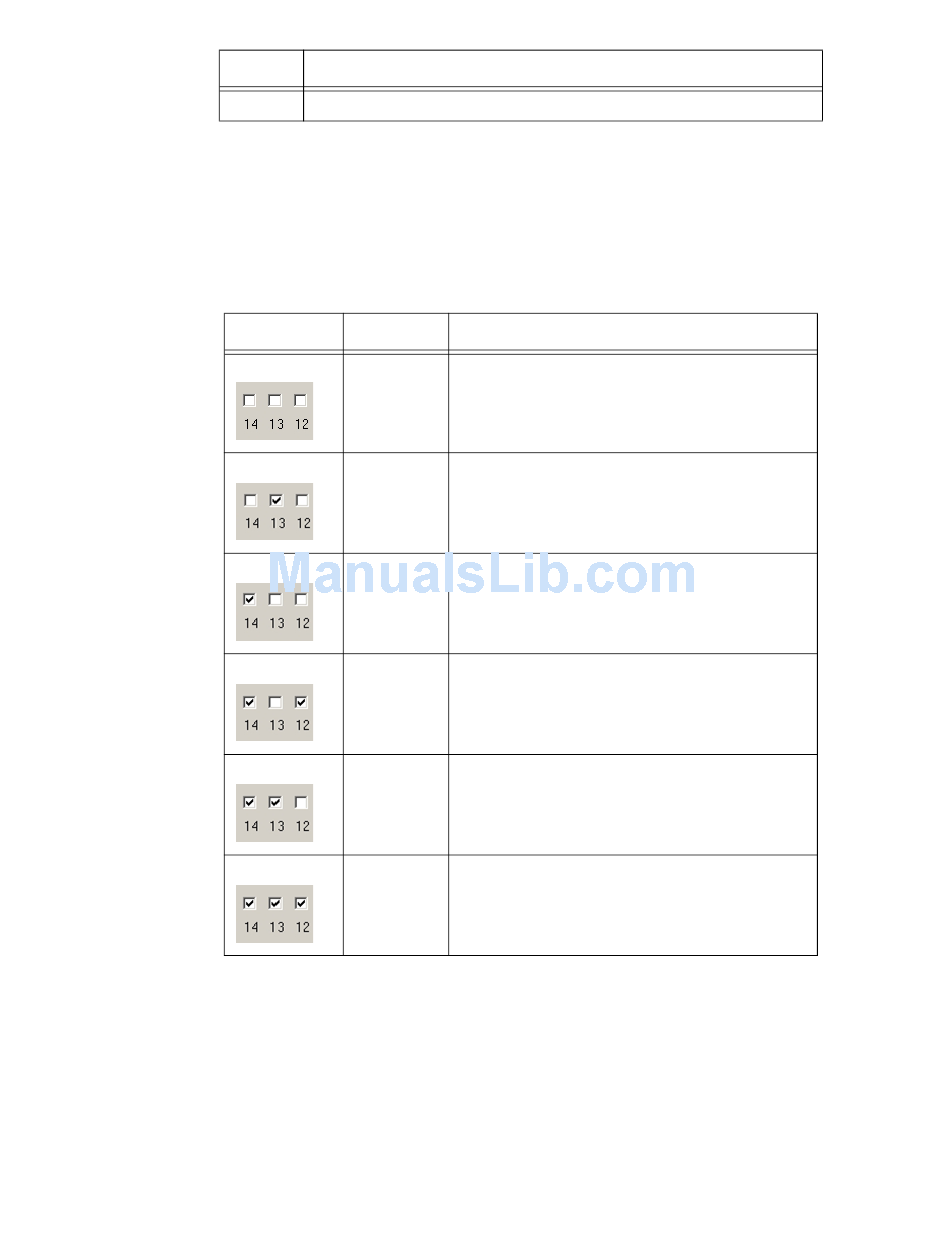

Bit Codes for Controlling the Bit Lights (Boxes 12‐14)
By default, check boxes 12 –14 in the Edit I/O Setup Control dialog box (previous
diagram) are cleared to create the bit code 000. This configures the eight front
panel Bits lights to act as activity lights (glow when high) for the eight bit
addressable digital I/O lines. The Bits lights can also be configured to provide
information about amplifier status or act as activity lights for any of the other four
bytes of digital I/O.
Bit Flags
000
010
100
101
110
111
XLink
The XLink is not supported at this time.
RX7 Technical Specifications
The RX7 is designed for use with the MS16 stimulus isolator. The RX7 is also
equipped with a fiber optic input port for use with Medusa or Adjustable Gain
preamplifiers.
RX7 Stimulator Base Station
Setting the bit to one will disable the D/A upsampler.
Bits set to 1
None Logical level lights for bit-addressable I/O lines
13 Amplifier Clip Warning/Power Status display
14 Enable logical level lights for byte A
12, 14 Enable logical level lights for byte B
13, 14 Enable logical level lights for byte C
12, 13, 14 Enable logical level lights for byte D
