TDT RZ2 Manual page 257

System 3

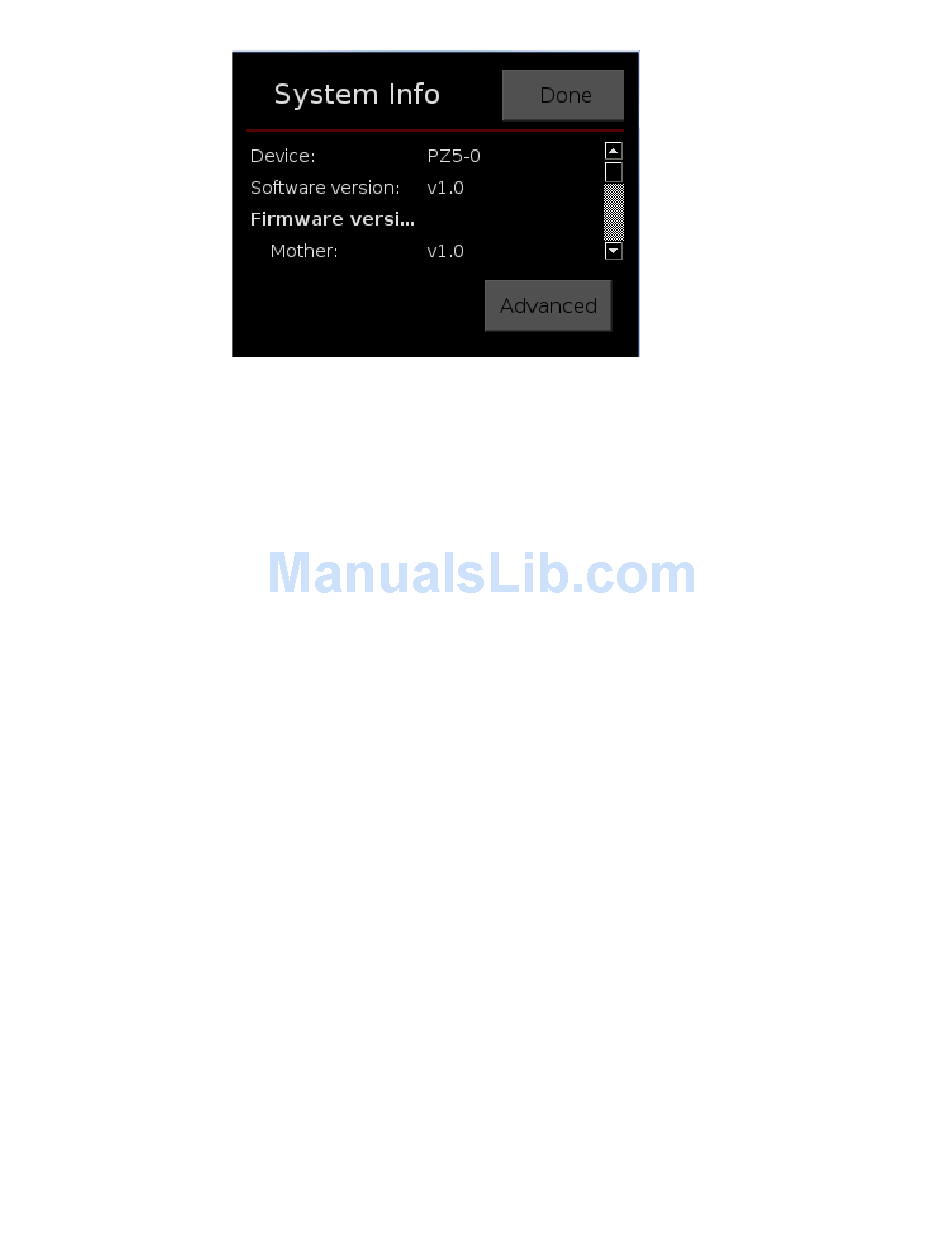

Information displayed includes:
Device
Software version
Firmware version
Hardware version
Battery
Done Button
Return to the Main Configuration screen.
Advanced Button
Password protected settings for TDT use only at this time.
System Update Screen
The system updater connects to a TDT server to download the latest PZ5M software
and automatically update the device. This requires an active and configured Internet
connection. The PZ5M provides two options for network connection: Wifi and
Ethernet. The Wifi connection can be configured on the Wireless Networks screen,
see below. The Ethernet port is located on the back panel.
The System Update screen is displayed by touching Update on the System Setup
screen.
Note: The update process can take up to an hour to complete.
PZ5M model number.
Currently installed version of onboard software.
Currently installed version of firmware.
Version of hardware.
Not used.
PZ5M Medically Isolated NeuroDigitizer
6-49
