TDT RZ2 Manual page 27

System 3
Note: When burning new microcode or if the firmware on the RZ5D is blank, the VFD
screen will report a cycle usage of 99% and the processor status lights will flash
red.
Status Indicators
Cyc:
Bus%:
I/O%:
Opt:
Important! The status lights flash when a DSP goes over the cycle usage limit, even if only for
a particular cycle. This helps identify periodic overages caused by components in time
slices.
PZ Preamplifier Port
The RZ5D acquires digitized signals from a PZ preamplifier or digital headstage
manifold over a fiber optic cable through the port labeled 'PZ' on the front panel.
This port can input up to 32 channels at a maximum sampling rate of ~50 kHz.
The PZ port can be used with any of the PZ preamplifiers including the PZ2, PZ3,

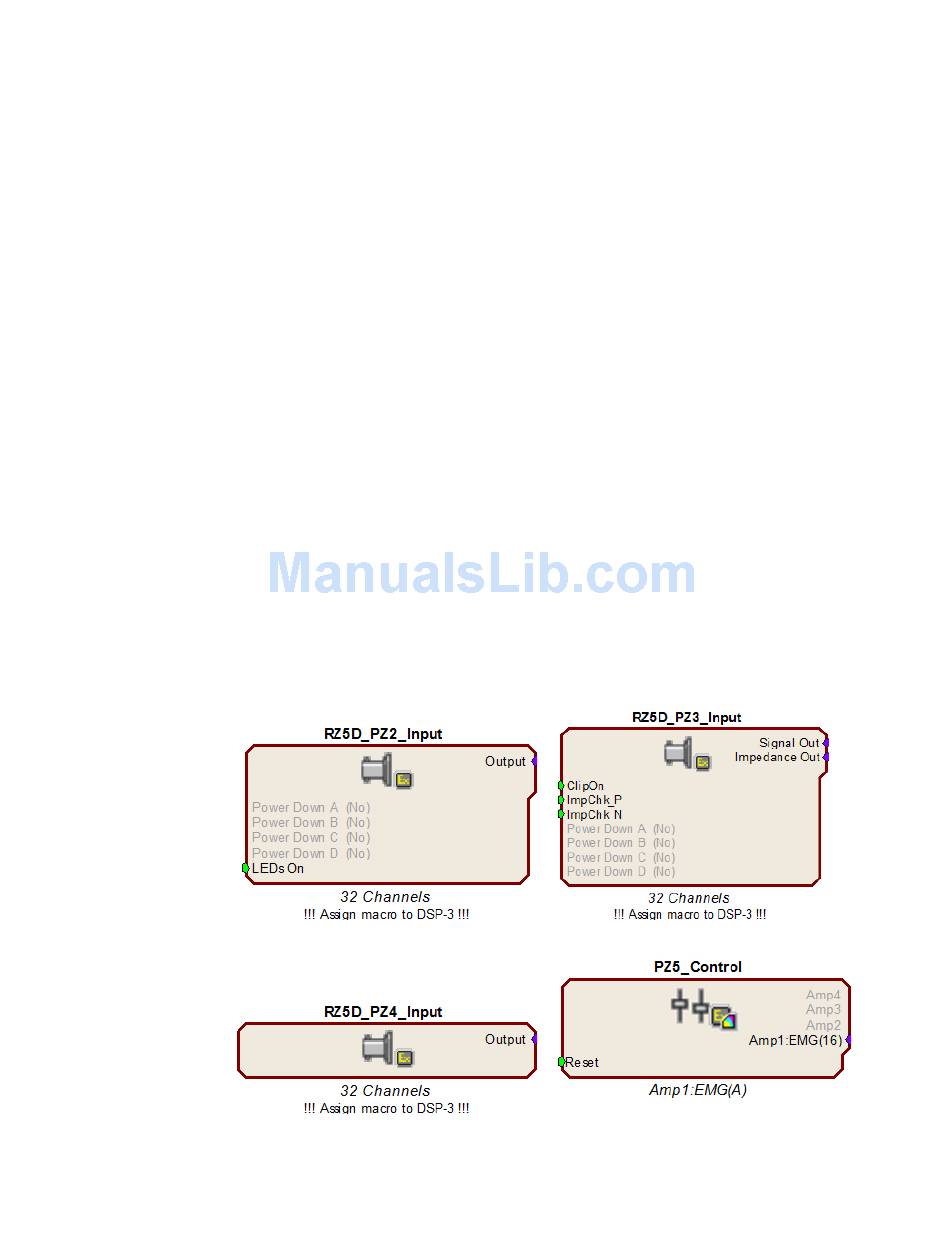

and PZ5 or the PZ4 digital headstage manifold. The PZ5_Control and
RZ5D_PZn_Input macros are used to access neurophysiological data in the processing
chain.
Important! The macro must be placed on DSP-3 in the RPvdsEx circuit. Further, when using
the RZ5D, set the
See the internal macro help for more details.
Description
cycle usage (note: limited to 2 digits; ex: 110 displayed as
10) for QZDSPs, the highest core cycle usage is shown
percentage of internal device's bus capacity used
percentage of data transfer capacity used
connection (sync) status of amplifiers A and B
Use Direct Input
option on the PZ5_Control Setup tab to
1-21
Yes
.
RZ5D BioAmp Processor
