SB64 64‐Channel Stimulator Buffer
This adapter provides multiple ways of connecting up to 64-channels. Two mini-
DB80 connectors, one for direct connection to a PZ5M NeuroDigitizer/Amplifier and
one for connection to up to 64 electrode channels. Two DB37 connectors provide an
additional passive input or output connection. Each DB37 is tied to the corresponding
32 electrode channels and is buffered from the active electronics associated with the
PZ amplifier connection. They can be used to connect stimulation to the
corresponding electrodes, pass electrode signals to a parallel recording system, or
serve as an alternative input connection from a breakout box (such as a a Xltek
EMU128FS).

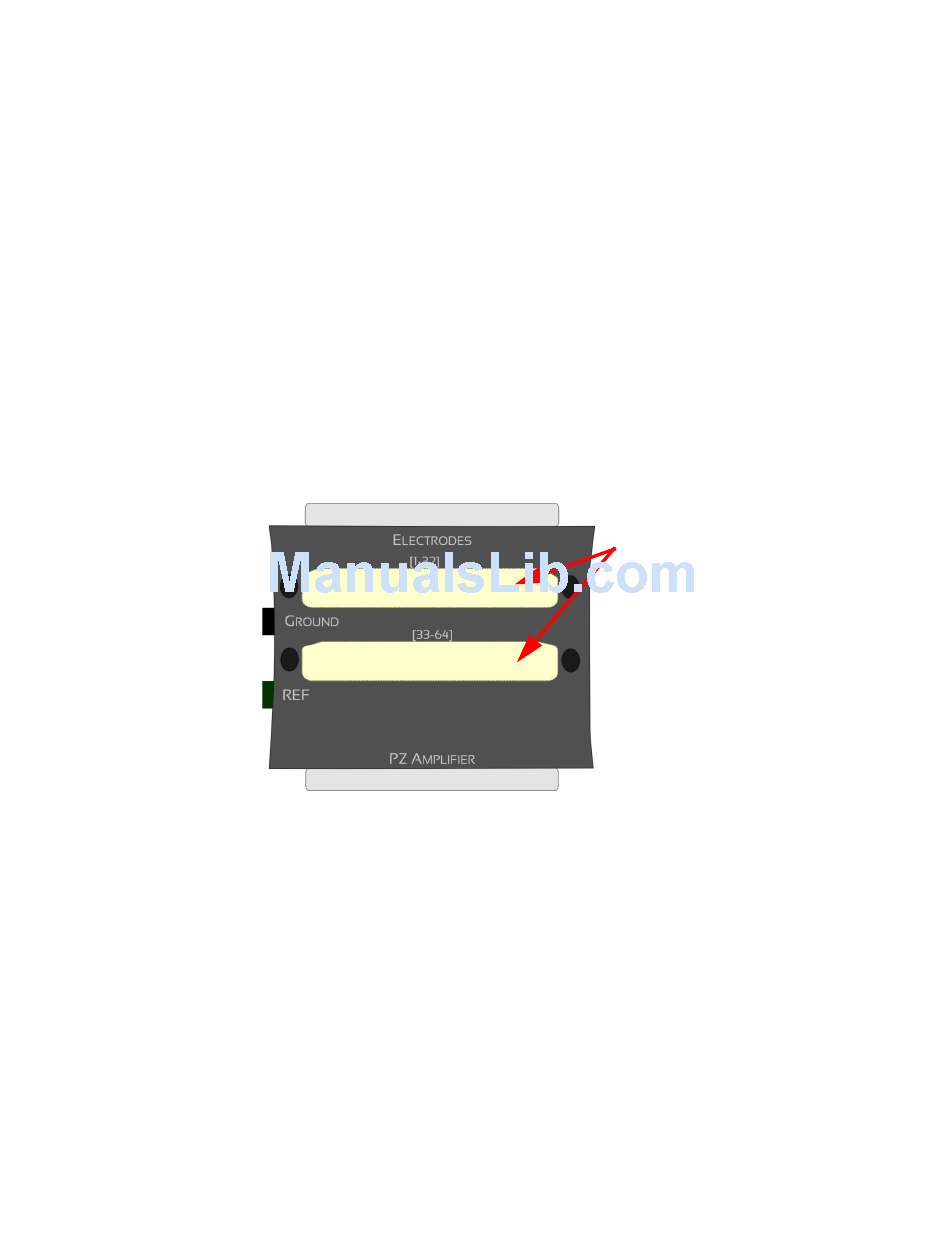

The SB64 uses standard 1.5 mm safety connectors for Ground and Reference
(REF) connections. Front panel numbering of the DB37 connectors corresponds to
TDT amplifier channels. Use caution to avoid miswiring.
Connects to Male to Male Ribbon Cable
Female Mini-DB80
Female Mini-DP80
Female DB37 Connectors
Connect to:
Stimulator
Or
Parallel Recording System
OR
Alternative Breakout Box
