Connectors

LI‐CONN ‐ Low Impedance Connectors
A set of multi-channel low impedance connectors (LI-CONN) for the RA16LI is
available for users who do not require a direct connection between the electrodes
and the headstage. The LI-CONN uses standard 1.5 mm safety connectors to ensure
proper connection between electrodes and the preamplifier.
LI‐CONN‐Z ‐ Low Impedance Connector for the PZ3
The PZ3 is designed to record from low impedance electrodes and electrode caps
with input impedance less than 20 kOhm. Signals are input via multiple DB26
connectors on the PZ3 back panel. A break out box or connector(s) is required for
electrode connection.

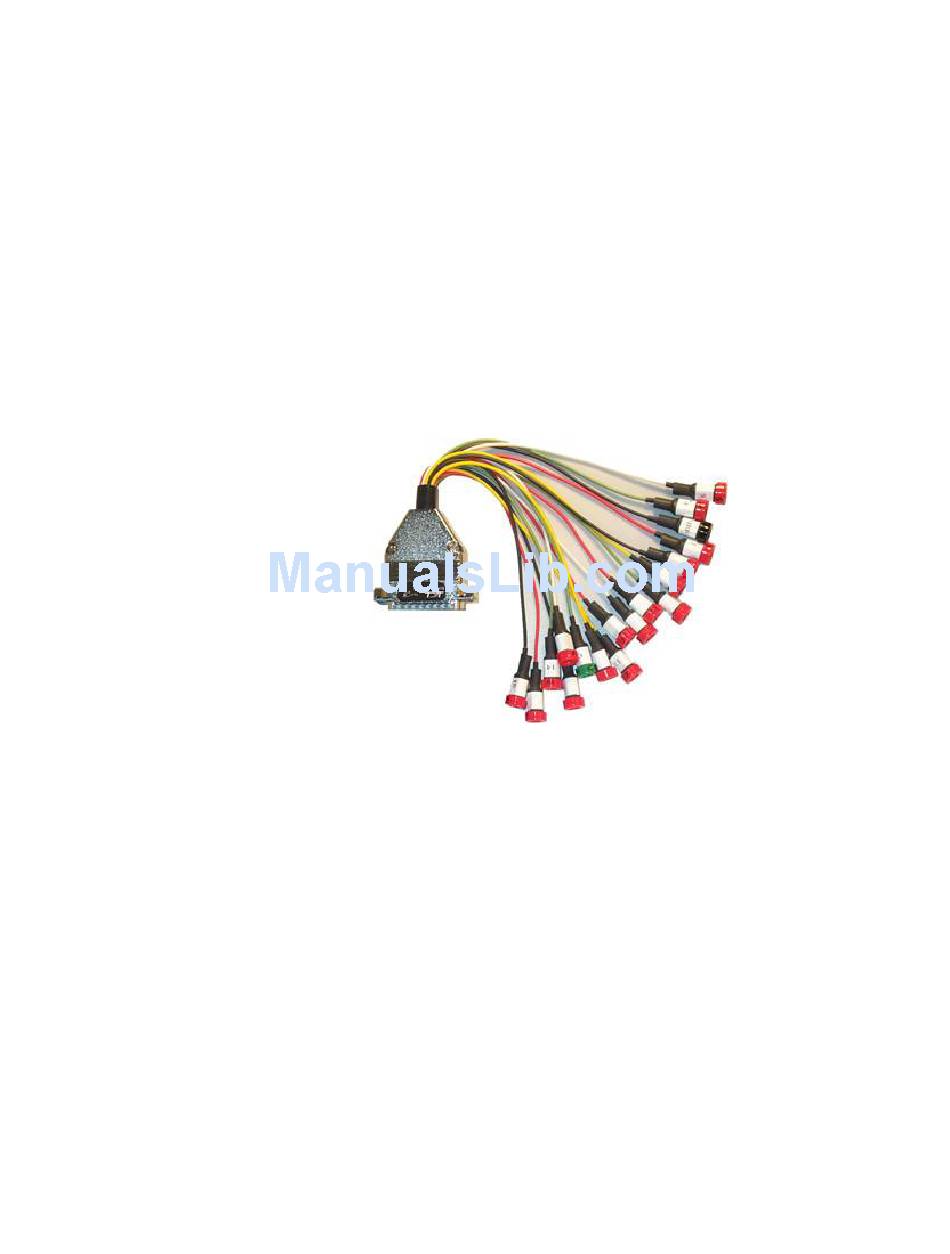

The LI-CONN-Z for
connectors and provides easy connections between electrodes and the amplifier.
Shared Differential
mode features standard 1.5 mm safety
