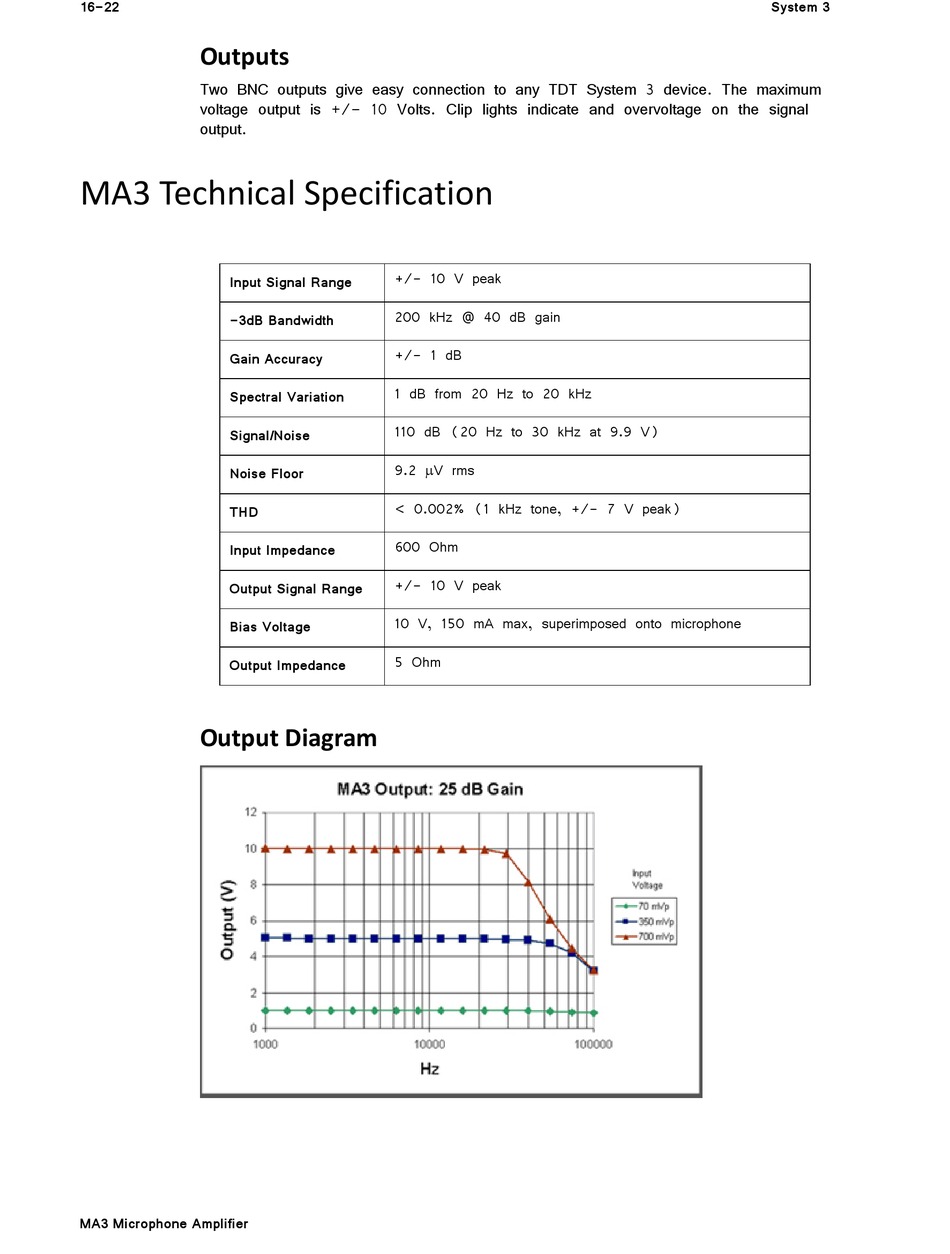

TDT RZ2 Manual page 600

16-22
Outputs
Two BNC outputs give easy connection to any TDT System 3 device. The maximum
voltage output is +/- 10 Volts. Clip lights indicate and overvoltage on the signal
output.
MA3 Technical Specification
Input Signal Range
-3dB Bandwidth
Gain Accuracy
Spectral Variation
Signal/Noise
Noise Floor
THD
Input Impedance
Output Signal Range
Bias Voltage
Output Impedance
Output Diagram
MA3 Microphone Amplifier
+/- 10 V peak
200 kHz @ 40 dB gain
+/- 1 dB
1 dB from 20 Hz to 20 kHz
110 dB (20 Hz to 30 kHz at 9.9 V)
9.2 V rms
< 0.002% (1 kHz tone, +/- 7 V peak)
600 Ohm
+/- 10 V peak
10 V, 150 mA max, superimposed onto microphone
5 Ohm
