TDT RZ2 Manual page 651

System 3
To Change the Host name (NetBIOS name):
•
Direct Connection to a PC
The BH32 interface can be connected directly to a PC or laptop; however, it is
usually necessary to use an Ethernet crossover cable to connect the devices. Once
connected, several steps are required for the PC to recognize the UDP interface
connection. This method may be performed on any operating system which supports
TCP/IP.
To initialize the PC for a direct connection in Windows XP:
1.
2. Click Start | Control Panel then double-click Network Connections.
3. Right-click the desired connection (this is usually a Local Area Connection)
4. Select Internet Protocol (TCP/IP) or if there are multiples, select Internet
5. Click the Properties button.

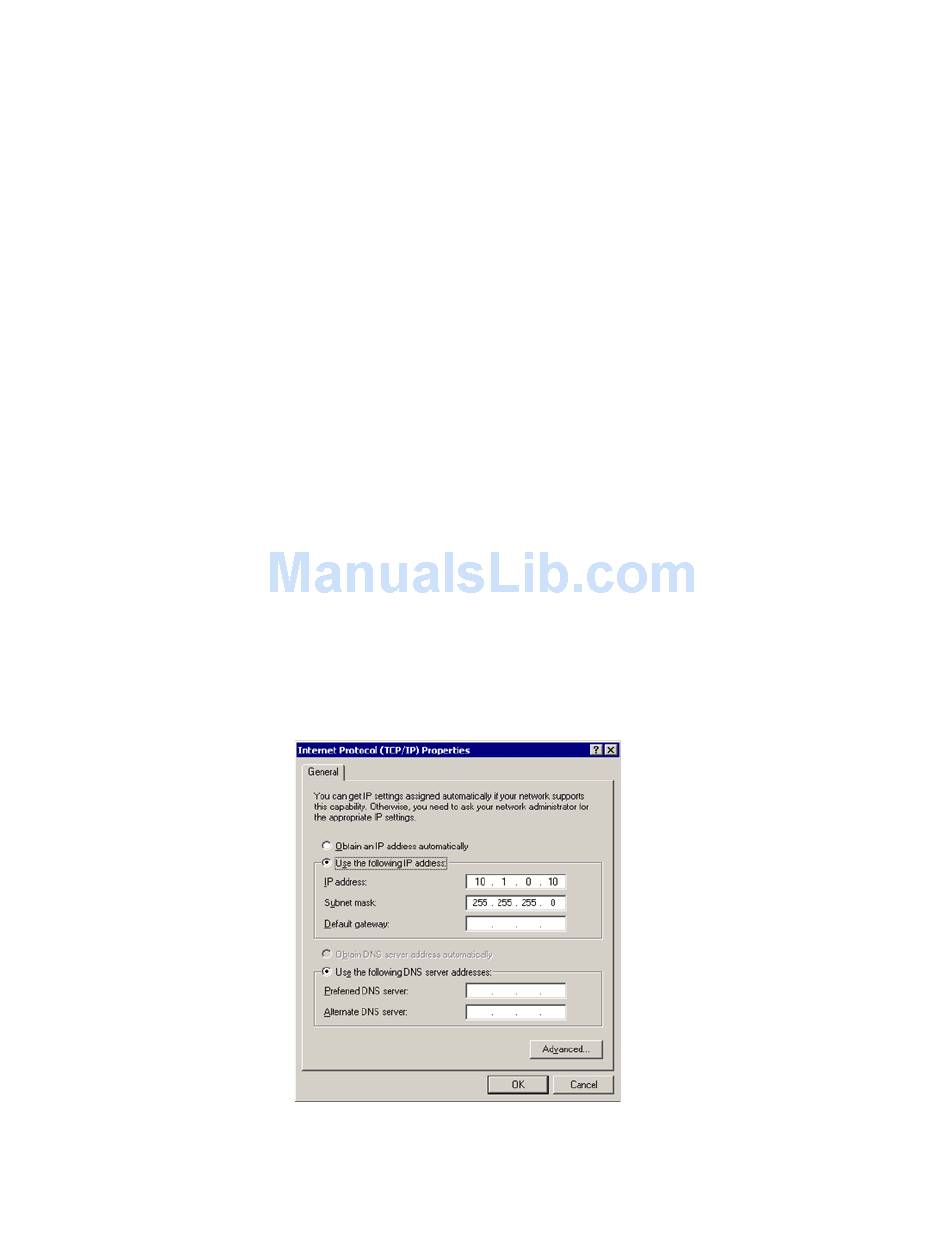

6. Select Use the following IP address and enter these values:
7. Click OK.
The BH32 interface connection should now be recognized by the PC. Cycle power
on the BH32 device, the IP address of the BH32 will be 10.1.0.101.
Type the desired host name in the Host Name box and click the Save
Config button.
Note: The Host name can be no greater than 15 characters long and cannot
contain spaces or the following characters: \ / : * ? " ; | -
Physically connect the BH32 Ethernet interface and the PC via an Ethernet
crossover cable.
and select Properties.
Protocol (TCP/IPv4).
IP address: 10.1.0.x, where x can be any value from 1 to 254 except 100
or 101
Subnet mask: 255.255.255.0
Default gateway: Leave empty
17-33
BH32 Behavioral Cage Controller
