than one headstage is used, all channels will be concatenated together, starting with
connector "-A-", to create the output signal to the RZ base station. The total
channel count of all connected headstages cannot exceed the maximum channel
count for the PZ5. See "PZ5 NeuroDigitizer" on page 6-3, for more information.
ZIF‐Clip® Digital Headstage Technical Specifications
Input referred noise
Input Impedance
A/D
A/D Sample Rate
Maximum Voltage In
Frequency Response
Anti-Aliasing Filter
Distortion (typical)
ZIF-Clip® ZD Digital Headstages

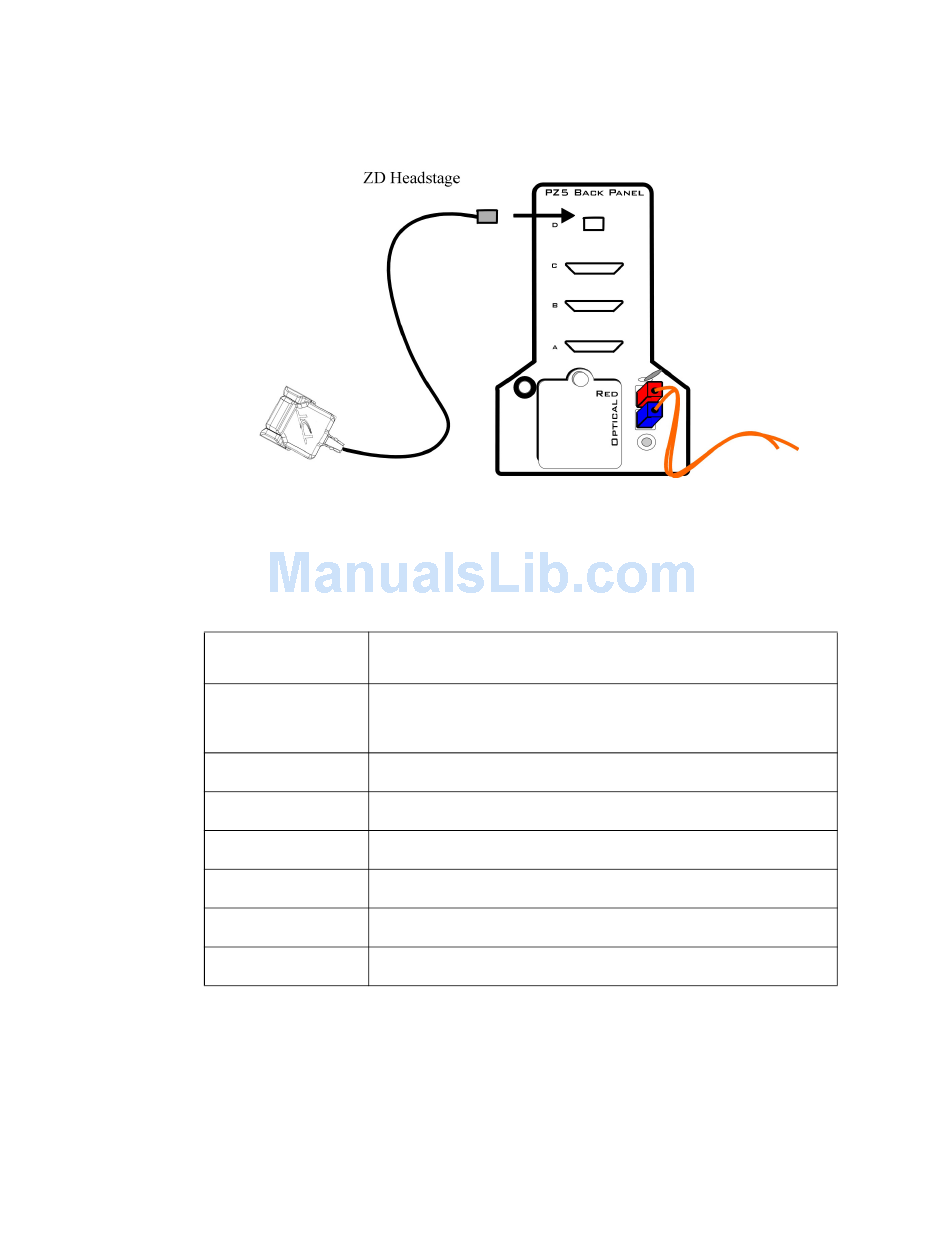

ZIF‐Clip® ZD Digital Headstage to Preamplifier Connection Diagram
2.4 μV
RMS
with amplifier bandwidth
1300 Mohm, 10Hz
13 Mohm, 1kHz
TDT recommends using less than 2 Mohm electrodes
Up to 96 channels, 16-bit successive-approximation
Up to 24414.0625 Hz
+/- 5 mV
3 dB: 0.1 Hz – 10 kHz
3rd order low-pass (-18 dB per octave)
< 0.8%
Typical. Varies slightly (< 15%)
System 3
