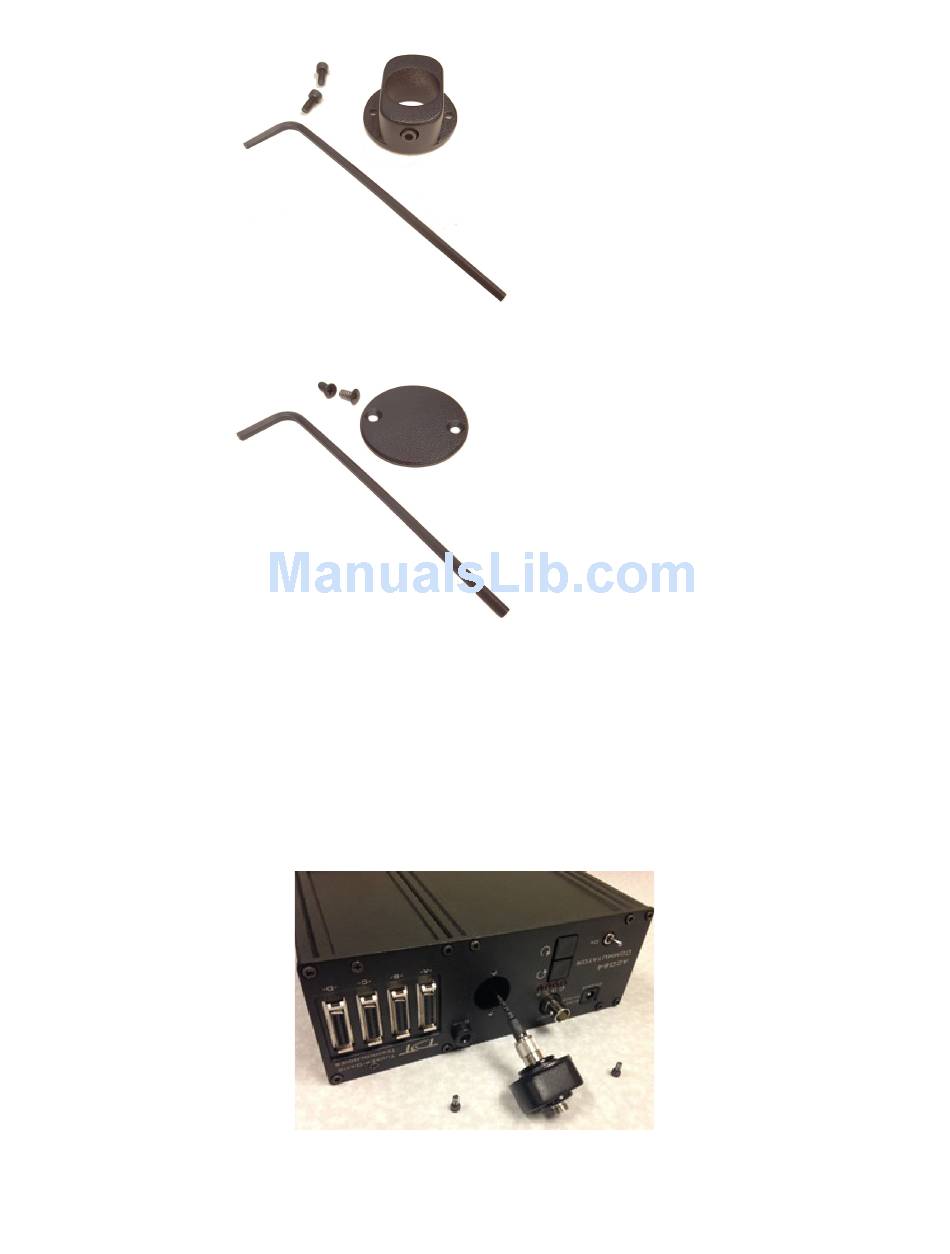

If you purchased the ACO32 or ACO64 with a FORJ and wish to remove it, use
the kit below to cover the opening where the FORJ was previously mounted.
Note: the two configurations use different screws, so be sure to save all screws.
Replacing the Optical Fiber (ACO64)
The FORJ assembly can be removed and re-installed by the user to replace the
optical fiber.
To remove a currently installed FORJ:
1.
2. Use the hex driver to remove the two screws securing the encoder clamping
Use a 3/32" Allen Hex driver to remove the two screws securing the fiber
optic rotary joint to the commutator face.
plates.
