TDT RZ2 Manual page 528

13-10
Specifications might vary based on custom order:
Specification
n Rows X n Electrodes
Metal
Wire Diameter
Insulation
Electrode Spacing
Row Separation
Tip Angle
Tip Length
Attached G/R Wires
See the
specifications.

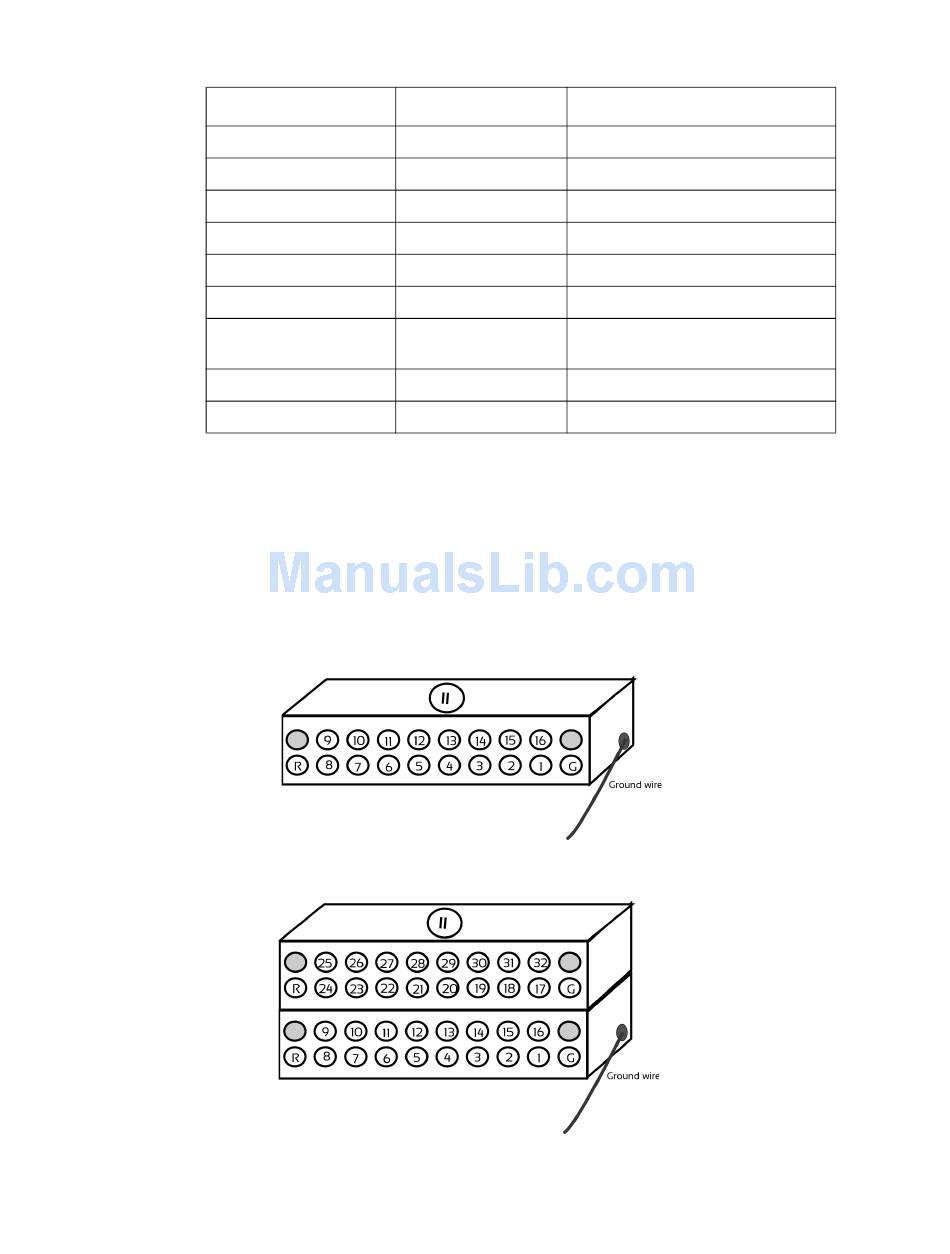

Pinout Diagram
Omnetics dual row 18-pin nano connector(s) (0.025 mil pitch; <2x7x4mm)
Ground wire is attached adjacent to row 1.
16 Channel Connector
Row 2
Row 1
32 Channel Connector
Row 4
Row 3
Row 2
Row 1
Omnetics Based Microwire Arrays
2X8
Tungsten
50 μm
Polyimide
250 μm
500 μm
Blunt Cut
(0 degrees)
2mm
None
Online Order Form
(PDF format) for more information on ordering
Default
Max channels = 32
33 μm
175 μm, 350 μm, 500 μm
1000 μm, 1500 μm, 2000 μm
30, 45, 60 degrees
0.5 - 4 mm
Ground, Reference
System 3
Options
