CHAPTER 7 PICK-UP / FEEDING SYSTEM

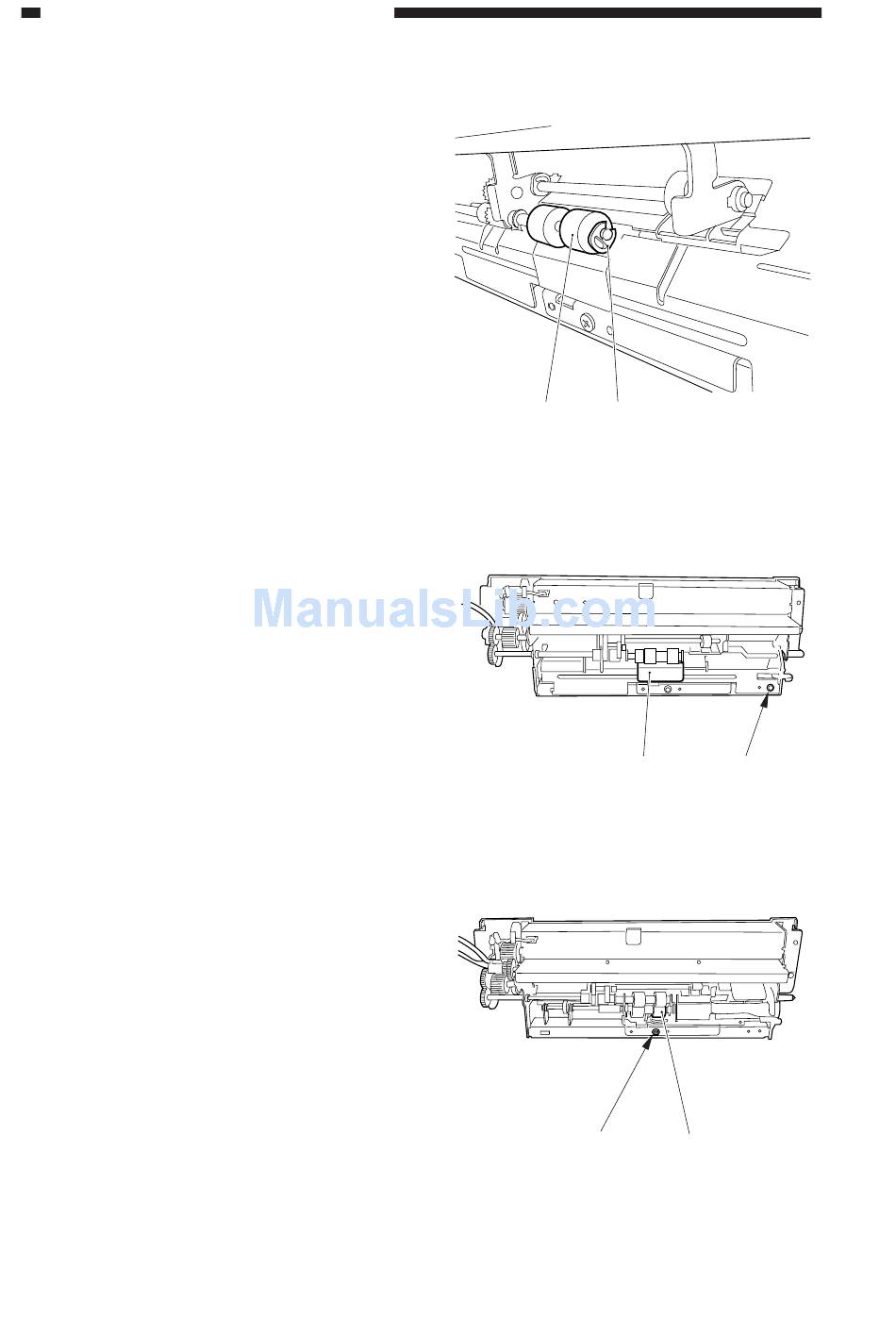

8. Removing the Duplexing Unit Feed
Roller
1) Remove the duplexing pickup assembly.
2) Remove the resin E-ring [1].
3) Remove the feed roller [2].
9. Removing the Duplex Unit
Separation Roller
1) Remove the duplexing pickup assembly.
2) Remove the screw [1], and remove the
face plate [2].
3) Remove the screw [3], and remove the
separation roller assembly [4].
7-56
COPYRIGHT © 2002 CANON INC. CANON CLC1100/1130/1150/1160/1180 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[1]
[2]
Figure 7-719
[2]
Figure 7-720
[3]
[4]
Figure 7-721
[1]
