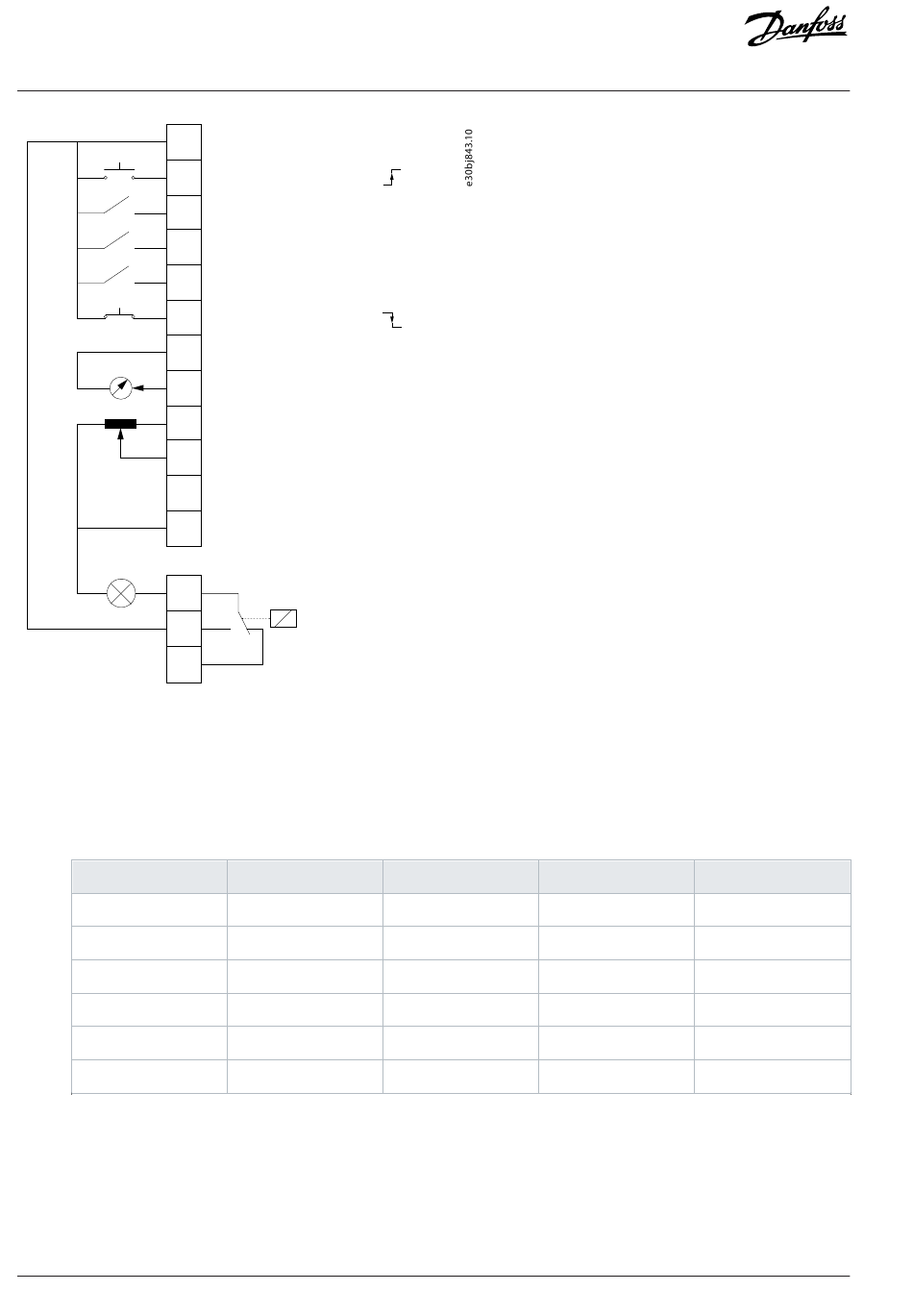

Figure 40: Default Connections
1.
Set P 5.4.1 Application Selection to [23] 3-Wire Control Mode.
When [23] 3-Wire Control Mode is selected, the following parameters are automatically set to the values shown in the table.
Table 19: Default Settings
Category
Operation mode
DI 1 - T13
DI 2 - T14
DI/O - T15
DI 3 - T17
DI 4 - T18
62
| Danfoss A/S © 2024.03
24V
Start (pulse )
DI1
DI2 Reverse (1) / Forward (0)
DIO Reset
DI3 Jog
DI4
Stop (pulse )
GND
AO1 Output Frequency
10V
Speed Reference 1
AI1
AI2
GND
Fault
RELAY
Parameter index Parameter name
5.4.2 Operation Mode
9.4.1.2 T13 Digital Input
9.4.1.3 T14 Digital Input
9.4.1.4 T15 Digital Input
9.4.1.5 T17 Digital Input
9.4.1.6 T18 Digital Input
Default setting Parameter number
[0] Speed Open Loop 100
[9] Latched start 510
[10] Reversing 511
[1] Reset 512
[14] Jog 513
[6] Stop inverse 515
