Application Guide | iC2-Micro Frequency Converters
Table 7: Control Panel Elements Description (continued)
Legend
Name of element
7
RUN LED
8
Run
9
REM/LOC
10
Back
11
Drive Status Indica-
tors
Control Panel 2.0 OP2 Basic Configurations
3.2.6
Overview
3.2.6.1
Basic configurations of the control panel include:
Readout status of the motor and the drive which includes warnings and faults.
l
Navigate to the menus in order to view or change parameter settings for the drive.
l
Understanding Readout Screens
3.2.6.2
When the drive is in ready state, the control panel 2.0 OP2 display shows the Home screen. By default, as a factory setting, the Home
screen is shown as follows.
1(1)
1
0.0Hz
Frequency

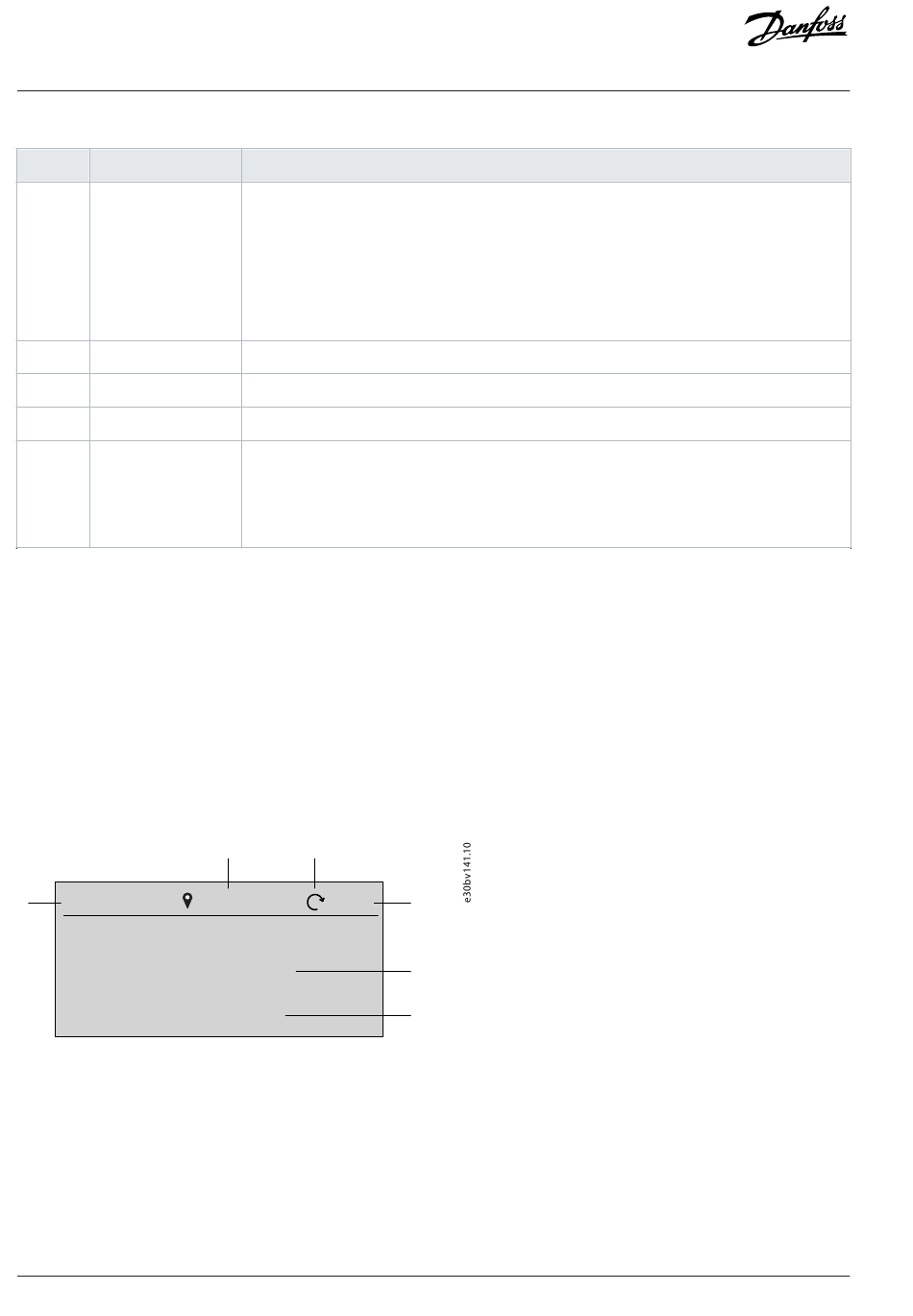

Figure 10: Home Screen
The following are the legends and description of the Home screen.
30
| Danfoss A/S © 2024.03
Description
The indicator has the following states:
• On: The drive is in normal operation.
• Off: The drive has stopped.
• Flash: The indicator is in this state when:
- In the motor-stopping process (ramp down).
- The drive received a RUN command, but no frequency output.
Starts the operation of the drive.
Toggles the drive between remote and local operation.
Navigates to previously viewed screen or a menu level above the current menu.
The related LEDs indicate the status of the drive.
• [WARN]: A steady yellow light indicates a warning.
• [READY]: A steady green light indicates that the drive is ready.
• [FAULT]: A flashing red light indicates a fault.
2
3
50.0 Hz
LOC
4
5
6
AB413939445838en-000301 / 130R1254
