Application Guide | iC2-Micro Frequency Converters
q1: Motor Data
P4.2.2.1 Nominal Power
P4.2.2.2 Nominal Voltage
P4.2.2.3 Nominal Current
P4.2.2.4 Nominal Frequency
P4.2.2.5 Nominal Speed
P4.2.1.2 Number of Poles
Quick
Access
q2:
Application
Selection
q3: Motor
Control

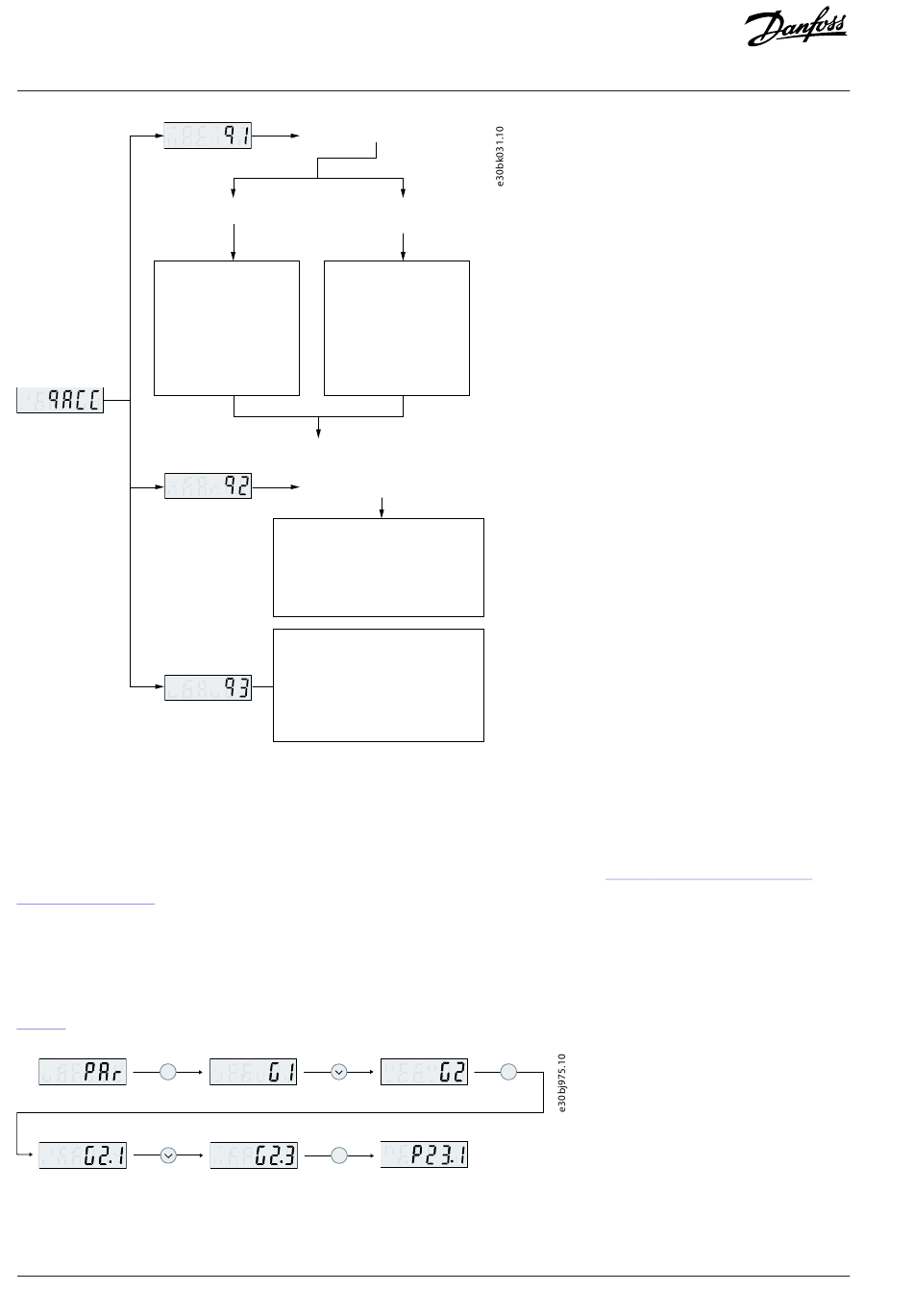

Figure 5: Quick Access Functions
Parameter Group Screen and Navigation
3.2.4.3.3
Overview
Press the Up/Down buttons to select the all parameters menu. See overview of full parameters in
Navigation. Press OK to enter the sub-menus.
Screen and
To navigate through and within the different parameter groups, use the navigation buttons of the control panel.
Use the Up/Down button of the control panel to navigate to different parameter groups.
l
The Back button is used to navigate to a level higher and the OK button to a level lower in the parameter/parameter group screens.
l
Figure 6
shows how to navigate to a parameter and the example considered is P 2.3.1 Overvoltage Controller Enable.
OK
Figure 6: Parameter Navigation
26
| Danfoss A/S © 2024.03
P4.2.1.1 Motor Type
*[0] IM Motor
[1] SPM or [3] IPM
P4.2.2.3 Nominal Current
P4.2.2.5 Nominal Speed
P4.2.3.7 Motor Cont. Rated
Torque
P4.2.4.1 Back EMF
P4.2.1.2 Number of Poles
P4.2.1.3 AMA
P5.4.1 Application Selection
*[20] Speed Control Mode
[21] Process Control Mode
[22] Multi Speed Control Mode
[23] 3-wire Control Mode
[24] Torque Control Mode
P5.5.3.3 Reference Maximum
P5.5.3.4 Reference Minimum
P5.5.4.2 Ramp 1 Accel. Time
P5.5.4.3 Ramp 1 Decel. Time
P2.3.14 Max Output Frequency
P5.8.2 Motor Speed High Limit
OK
PM Motor
OK
3.2.4.3.1 Overview of Menu Group
AB413939445838en-000301 / 130R1254
