Installation Guide
In-back/Out-top Cooling Kit for FA11-FA12
iC7 Series Frequency Converters
1 Overview
Description
1.1
The in-back/out-top cooling kit fits FA11 and FA12 frequency converters mounted in Rittal TS8 and VX25 cabinets with widths of 600 mm
(24 in) or 800 mm (32 in). When the kit is installed, air flows into the back duct and out through the top duct. See
1
2

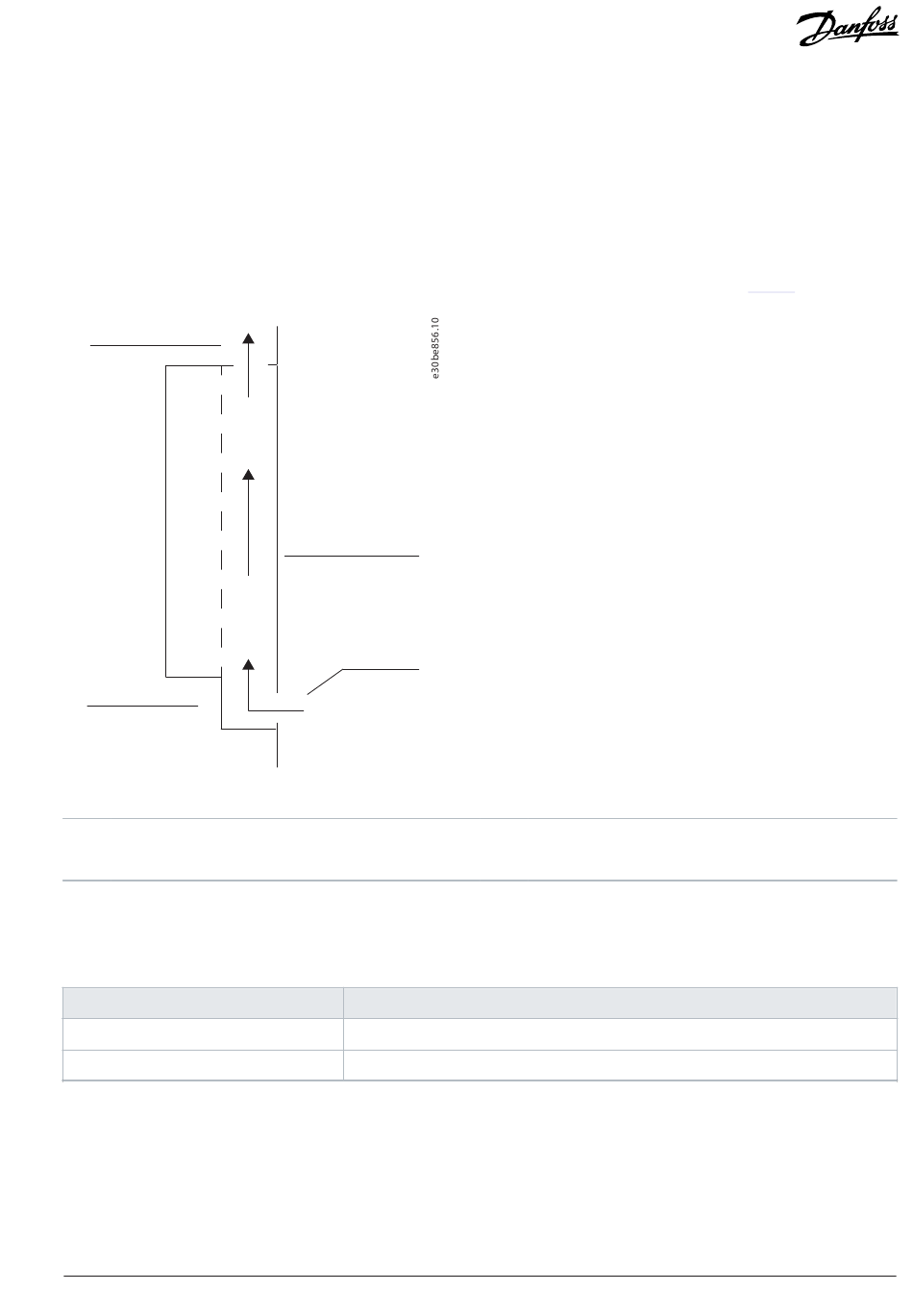

Figure 1: Direction of Airflow with Kit Installed
1
Top duct (exhaust)
3
Airflow direction
Kit Numbers
1.2
Use these instructions with the following kits.
Table 1: In-back/Out-top Cooling Kits
Number
176F4061
176F4062
Danfoss A/S © 2024.09
3
4
2
4
Kit description
In-back/out-top cooling kit for FA11 frequency converters
In-back/out-top cooling kit for FA12 frequency converters
Cooling back channel
Bottom duct (intake)
AN361429223580en-000201 / 136R0251 |
Figure
1.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iC7 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss iC7 Series

  • Page 1 Installation Guide In-back/Out-top Cooling Kit for FA11-FA12 iC7 Series Frequency Converters 1 Overview Description The in-back/out-top cooling kit fits FA11 and FA12 frequency converters mounted in Rittal TS8 and VX25 cabinets with widths of 600 mm (24 in) or 800 mm (32 in). When the kit is installed, air flows into the back duct and out through the top duct. See...
  • Page 2 Safety Information   NOTICE QUALIFIED PERSONNEL Only qualified, Danfoss authorized personnel are allowed to install the parts described in these installation instructions. Disassembly and reassembly of the frequency converter must be done in accordance with the service guide.  Use the standard fastener torque values from the service guide, unless the torque value is specified in these instructions.
  • Page 3 APPLYING GASKETS This kit contains self-adhesive gaskets to ensure a proper seal between metal parts. Before affixing a gasket, check that the part matches the gasket and that no holes are covered.  Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 4 Figure 2: Overview of In-back/Out-top Cooling Kit Frequency converter Rittal cabinet Bottom gasket M5x14 screw Bottom cover M5 hex nut Top duct assembly Clip-on nut Back gasket Back duct M6x12 screw M5x18 screw | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 5 The opening must match the frequency converter vent opening. Drill 6 screw holes around the vent opening using the dimensions in the template. The holes must match the holes in the inner flange of the back duct. Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 6 7 (0.3) 2X 1335 (52.6) 1357 (53.4) 1368 (53.9) 3 (0.1) 1513 (59.6) 1524 (60.0) 2X 1545 (60.8) 1645 (64.7) Figure 3: Vent Dimensions for Mounting Plate in 600 mm (24 in) Cabinet | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 7 Cut out the vent opening in the cabinet backplate using the template dimensions. The opening must match the frequency converter vent opening. Drill 8 screw holes (6 mm) around the vent opening using the dimensions in the template. Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 8 18 (0.7) 1383 (54.4) 4X 1394 (54.9) 1396 (55.0) 16X Ø 6 (0.2) 1590 (62.6) 4X 1592 (62.7) 1603 (63.1) Figure 5: Vent Dimensions for Backplate in 600 mm (24 in) Cabinet | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 9 TS9 cabinets, or Figure 8 for Vx25 cabinets. The opening must match the frequency converter vent opening. Drill 6 screw holes (6 mm) around the vent opening using the dimensions in the template. Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 10 160 (6.3) 160 (6.3) 89 (3.5) 14 (0.6) 131 (5.2) 159 (6.2) 14 (0.6) 4 (0.15) 384 (15.1) 6X 6 (0.2) Figure 8: Dimensions of Opening in Top Plate of VX25 Cabinet | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 11 With the rubber seal in place, carefully slide the inner sleeve of the duct into the outer sleeve. Figure 9: Assembly of Telescopic Duct Inner sleeve of duct Ribbed EPDM rubber seal Outer sleeve of duct Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 12 Figure 10: Installation of the Top Duct Over the Top Vent Threaded stud Top duct M5x14 screw M5x12 screw Top of frequency converter Cooling back channel Upper flange of duct Lower flange of duct | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 13 Torque screws to 2.3 Nm (20 in-lb). FA11 frequency converters require 8 screws, and FA12 frequency converters require 10 screws. Figure 11: Installation of the Bottom Cover Frequency converter Cooling back channel Bottom gasket Bottom cover M5x14 screws Drain hole Mounting plate Cabinet rails Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 14 Insert the plastic brackets on the mounting plate into the brackets installed on the cabinet rails in the previous step. For VX25 cabinets, see step 2 in Figure For TS8 cabinets, see step 2 in Figure Figure 12: Rittal VX25 Cabinet - Installation of Mounting Brackets and Mounting Plate | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 15 Slowly push the top of the frequency converter back against the mounting plate until the top 3 pem nuts line up with the holes in the frequency converter. Secure the top of the frequency converter using 3 M10 screws. Torque the 6 M10 screws to 19 Nm (170 in-lb). Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 16 Fasten the inner flange of the back duct with 6 M6x12 screws (T30). Torque to 3.9 Nm (35 in-lb). Fasten the outer flange of the duct with 8 M5x18 screws (T25). Torque fasteners to 2.3 Nm (20 in-lb). | Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251...
  • Page 17 Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12 Installation Figure 14: Installation of the Backplate and Back Duct Backplate Mounting plate M5 clip-on nut Back duct M5x18 screw M6x12 screw 8-hole gaskets 6-hole gaskets Rittal cabinet Frequency converter   Danfoss A/S © 2024.09 AN361429223580en-000201 / 136R0251 |...
  • Page 18 Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without changes to form, fit or function of the product. All trademarks in this material are property of Danfoss A/S or Danfoss group companies.
