Control Panel Buttons And Indicators - Danfoss iC2 Application Manual

Application Guide | iC2-Micro Frequency Converters

Control Panel Buttons and Indicators

3.2.3
15
MON
1 PGM
TOR
WARN READY
2
3
OK
4
5
6 7

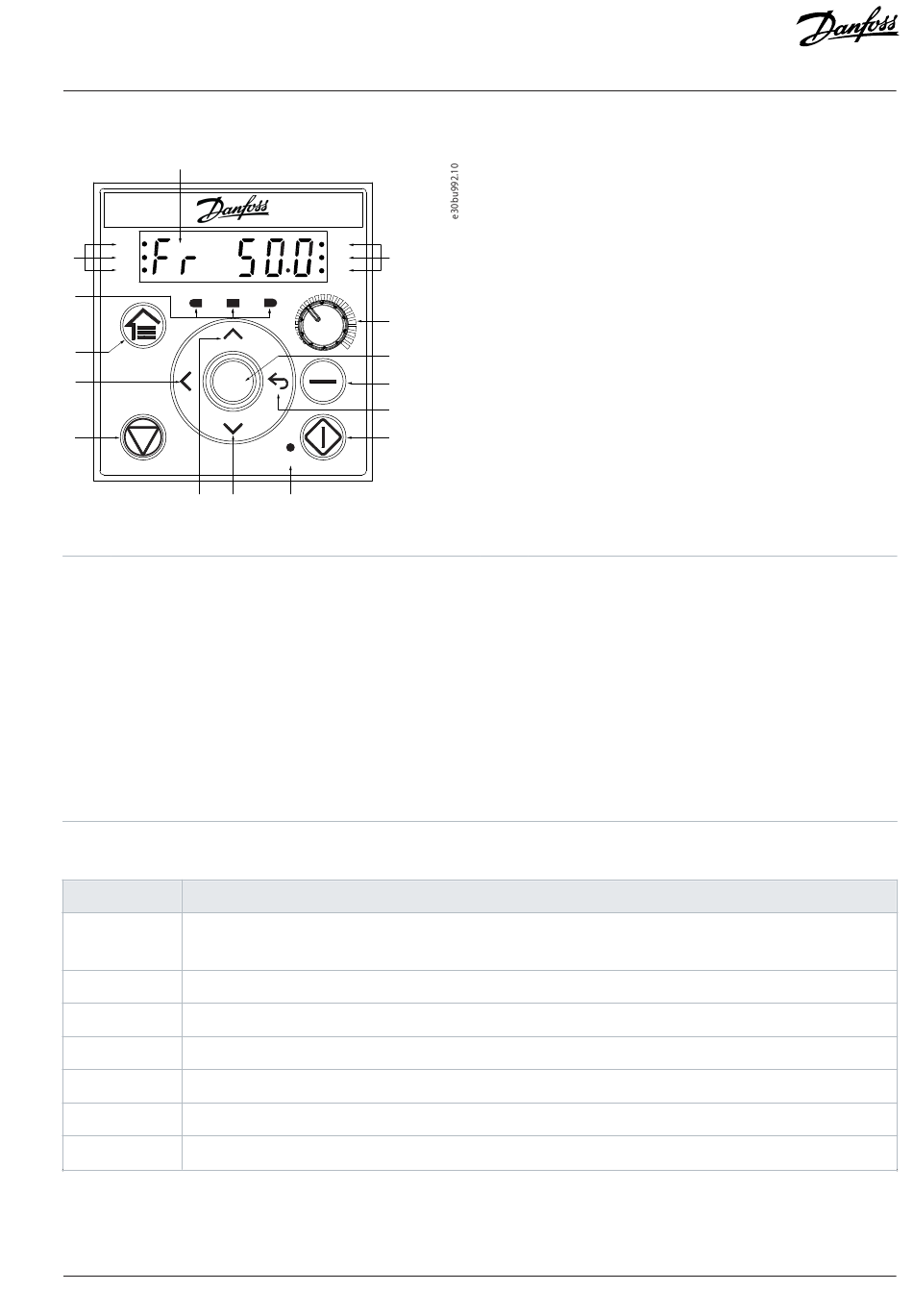

Figure 1: Control Panel
1
Status indicators
3
Home/Menu
5
Stop/Reset
7
Down
9
Start
11
Remote/Local
13
Potentiometer
15
Main display
Table 2: Operation Buttons and Potentiometer
Name Function
Home/Menu Toggles between status view and main menu.
Long press to access the shortcut menu for quickly reading and editing parameters.
Up/Down Switches status/parameter group/parameter numbers, and tunes the parameter values.
Left Moves the cursor 1 bit to the left.
Back Navigates to the previous step in the menu structure or cancels the setting during tuning parameter values.
OK Confirms the operation.
Remote/Local Toggles between the remote mode and local mode.
Start Starts the drive in local mode.
Danfoss A/S © 2024.03
LOC
REV 14
ST2
FAULT
13
12
REM
11
LOC
10
9
RUN
8
2
Operating indicators
4
Left
6
Up
8
Run indicator
10
Back
12
OK
14
Status indicators
AB413939445838en-000301 / 130R1254 |
21
