Application Guide | iC2-Micro Frequency Converters
Selection number
Selection name
45
Latched Start Reverse
46
Pulse PWM Input
51
External Interlock
60
Counter A (up)
61
Counter A (down)
62
Reset Counter A
63
Counter B (up)
64
Counter B (down)
65
Reset Counter B
101
Sleep
Speed [RPM]
Time [sec]
a
Pulse
Timer
Sample time
Time counter
Time start

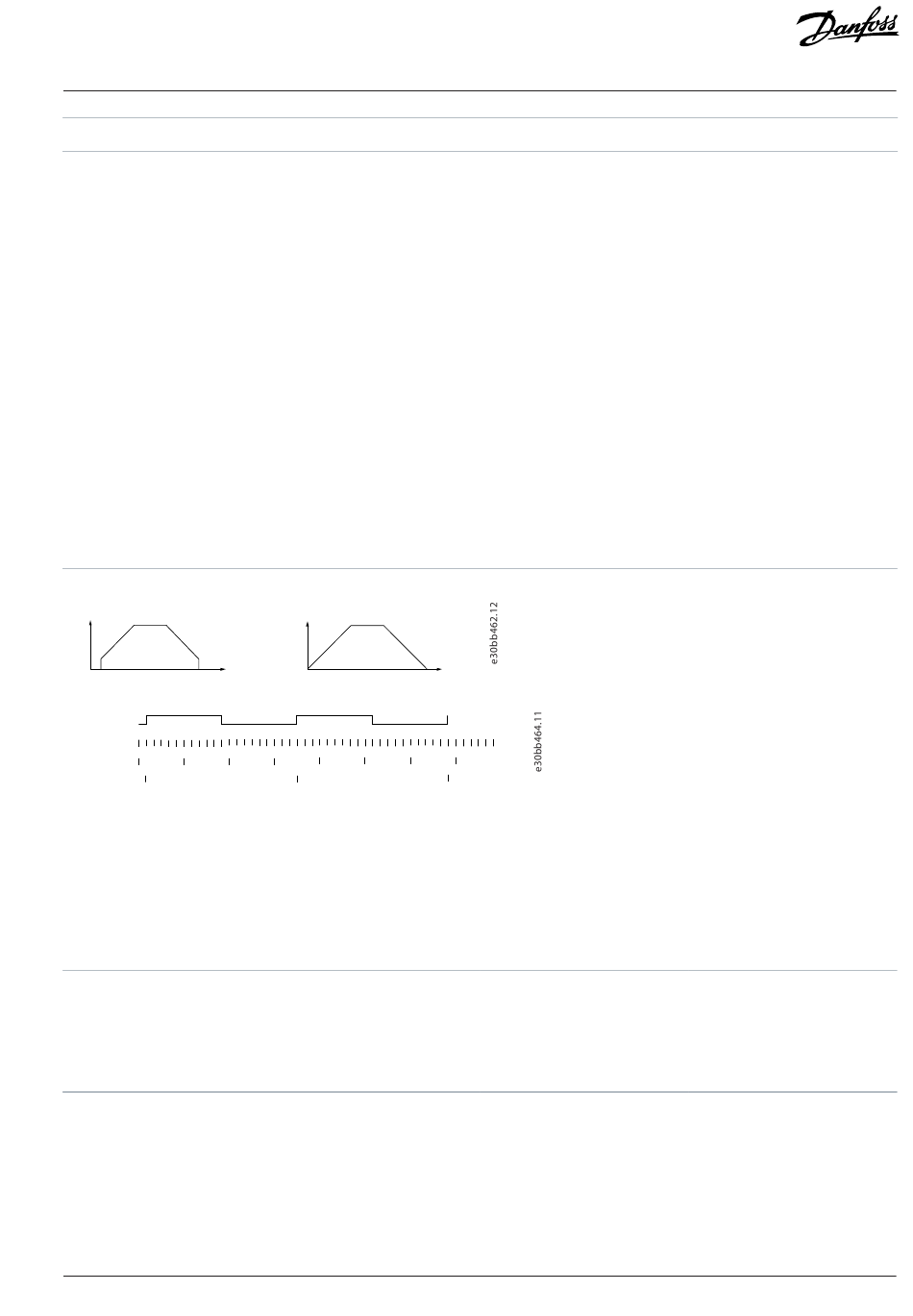

Figure 81: Duration between Pulse Flanks
T15 as Digital Output (Menu Index 9.4.2)
7.9.2.2
P 9.4.2.1 T15 Mode
Select [0] Input to define terminal 15 as a digital input. Select [1] Output to define terminal 15 as a digital output.
Default value:
0 [Input]
Parameter
501
number:
Data type:
enum
The following are the selections for the parameter.
Danfoss A/S © 2024.03
Speed [RPM]
Time [sec]
b
Read timer:
Read timer:
20 timer tides
20 timer tides
Selection description
The motor starts to run reverse when a pulse is applied for
minimum 4 ms. The motor stops when stop commands are
given.
To enable variable duty cycle pulse signal as the reference.
This function makes it possible to give an external fault to
the frequency converter. This fault is treated as an internally
generated fault.
Input for increment counting in the SLC counter A.
Input for decrement counting in the SLC counter A.
Input for reset of counter A.
Input for increment counting in the SLC counter B.
Input for decrement counting in the SLC counter B.
Input for reset of counter B.
A signal applied puts the frequency converter into sleep mode.
Parameter type:
Unit:
Access type:
AB413939445838en-000301 / 130R1254 |
Selection
Read/Write
235
