Application Guide | iC2-Micro Frequency Converters
T18 as Pulse Input (Menu Index 9.4.4)
7.9.2.4
The pulse input parameters are used to define an appropriate window for the impulse reference area by configuring the scaling and filter
settings for the pulse inputs. Input terminals 18 act as frequency reference inputs. Set terminal 18 (P 9.4.1.6 T18 Digital Input) to [32]
Pulse input.
Ref.
P 9.4.4.3
T18
High Ref./
Feedb. Value
P 9.4.4.4
T18
Low Ref./
Feedb. Value
P 9.4.4.2 T18
Low Frequency

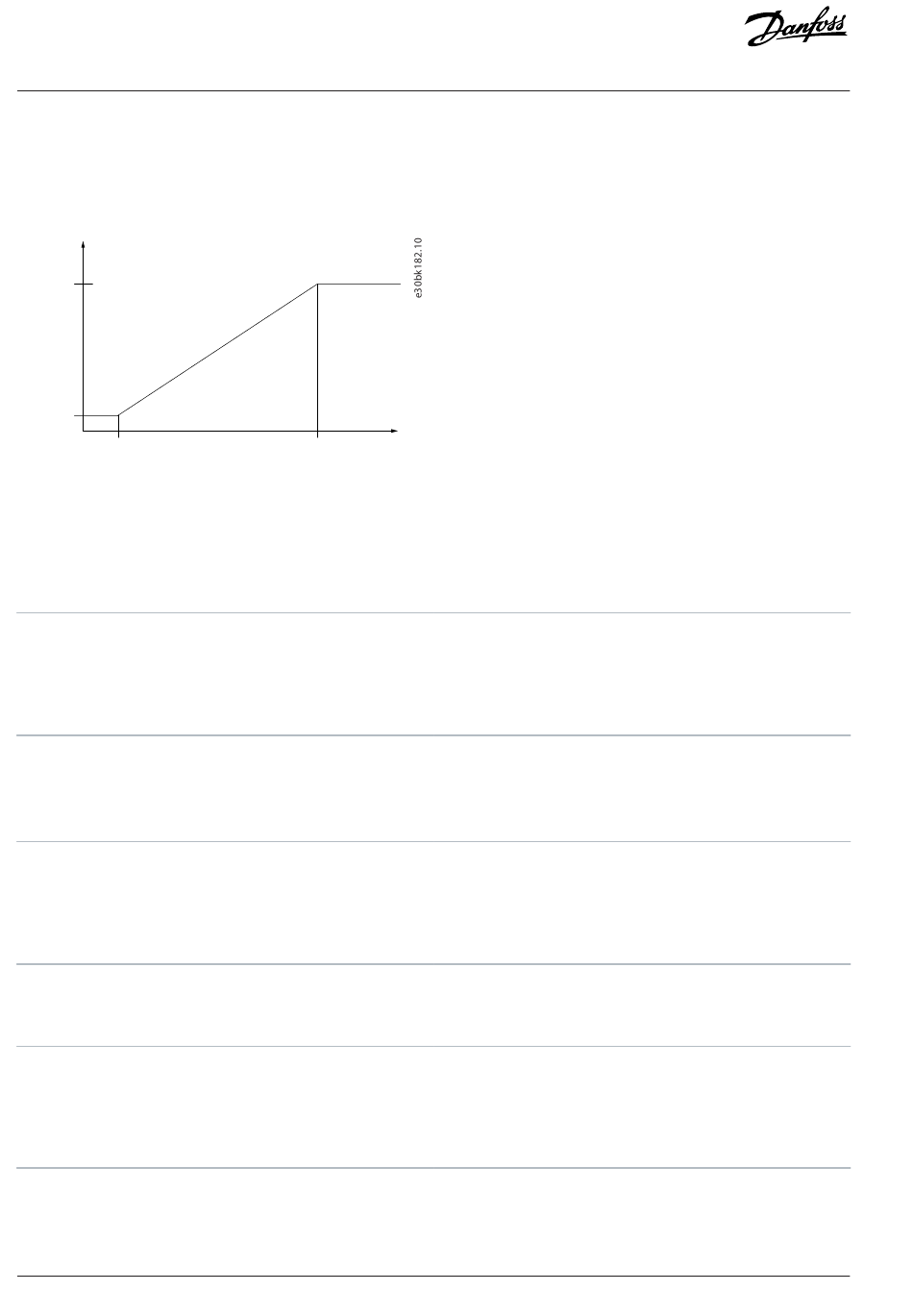

Figure 84: Pulse Input
P 9.4.4.1 T18 High Frequency
Enter the high frequency corresponding to the high motor shaft speed (that is high reference value) in P 9.4.4.3 Term. 18 High Ref./Feedb.
Value.
Default value:
32000
Parameter
556
number:
Data type:
uint 32
P 9.4.4.2 T18 Low Frequency
Enter the low frequency corresponding to the low motor shaft speed (that is low reference value) in P 9.4.4.4 Term. 18 Low Ref./Feedb.
Value.
Default value:
4
Parameter
555
number:
Data type:
uint32
P 9.4.4.3 T18 High Ref./Feedb. Value
Enter the high reference value for the motor shaft speed and the high feedback value.
Default value:
Size Related
Parameter
558
number:
Data type:
int32
P 9.4.4.4 T18 Low Ref./Feedb. Value
Enter the low reference value for the motor shaft speed and the low feedback value.
244
| Danfoss A/S © 2024.03
P 9.4.4.1 T18
Input
(Hz)
High Frequency
Parameter type:
Unit:
Access type:
Parameter type:
Unit:
Access type:
Parameter type:
Unit:
Access type:
Range (1–32000)
Hz
Read/Write
Range (0–31999)
Hz
Read/Write
Range (-4999.000–4999.000)
Hz
Read/Write
AB413939445838en-000301 / 130R1254
