P 9.5.1.3 T31 Output Max Scale
Scale for the maximum output (20 mA) of the analog signal at terminal 31. Set the value to be the percentage of the full range of the
variable selected in P 9.5.1.2 Terminal 31 Analog Output.
Default value:
100.00
Parameter
694
Number
Data type:
uint16
Current
(mA)
20
0/4
0% P 9.5.14 P 9.5.13
T31 Output T31 Output
Min Scale Max Scale

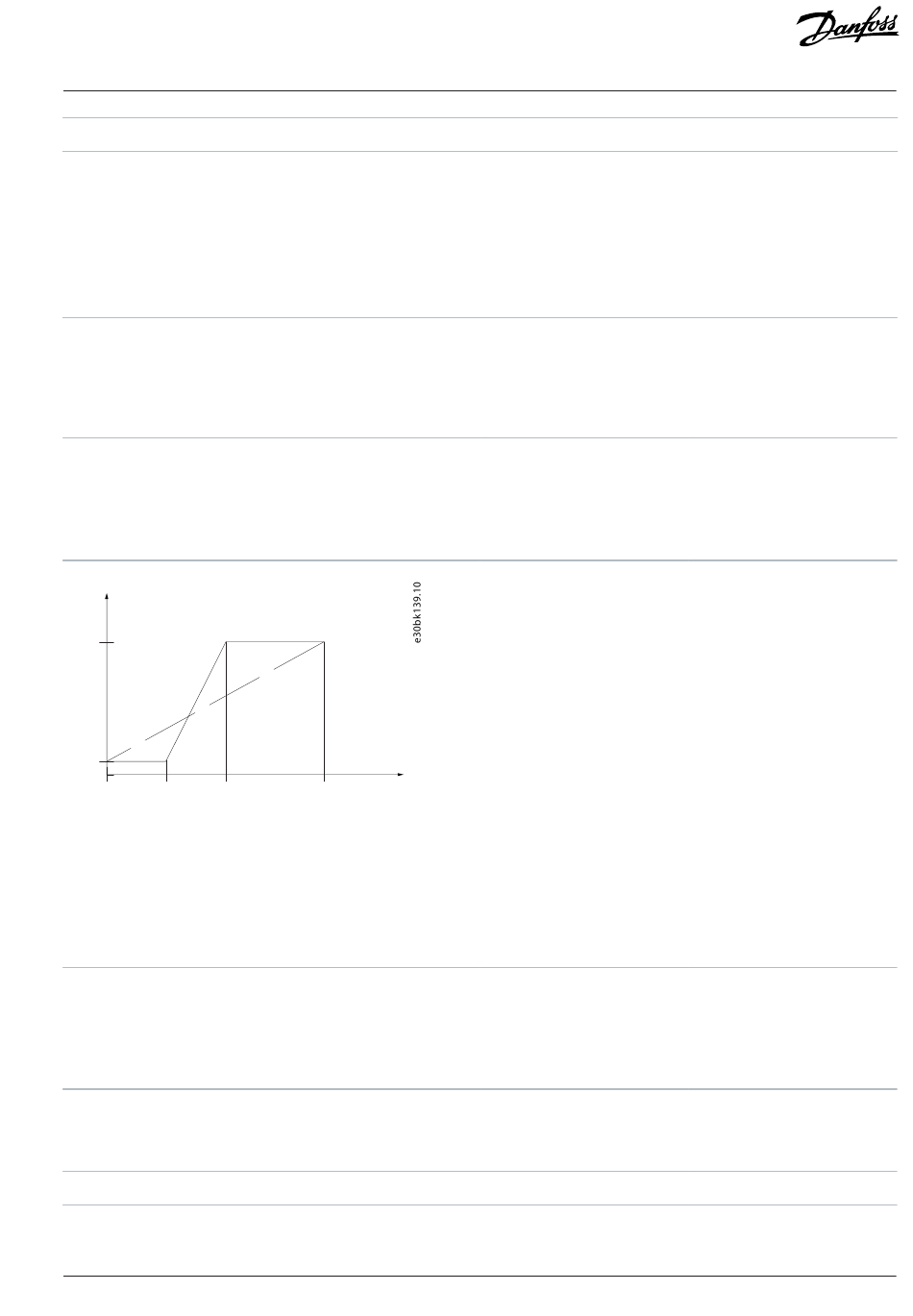

Figure 85: Output Scale versus Current
P 9.5.1.4 T31 Output Min Scale
Scale for the maximum output (20 mA) of the analog signal at terminal 31. Set the value to be the percentage of the full range of the
variable selected in P 9.5.1.2 Terminal 31 Analog Output.
Default value:
0
Parameter
693
Number
Data type:
uint16
P 9.5.1.5 T31 Output Bus Control
Holds the analog level of Output 31 if controlled by bus.
Default value:
0
