Application Guide | iC2-Micro Frequency Converters
1(1)
0.0 Hz
Ramp
5.5.4.1 Ramp 1 Type Selec
5.5.4.2 Ramp 1 Accel. Time

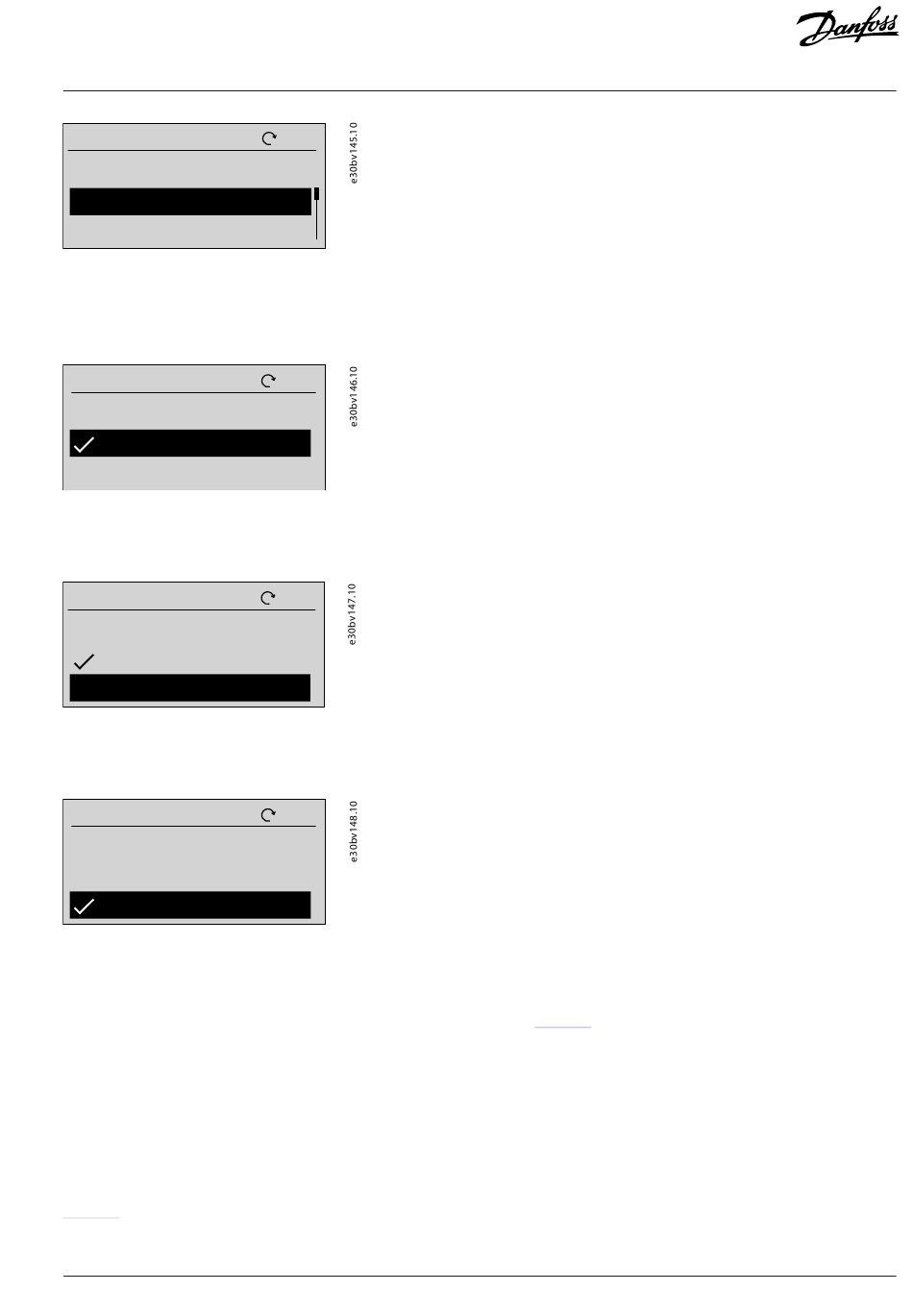

Figure 14: Changing Selections in a Parameter
1. To view the selections of the parameter, press OK. The selections available for the parameter is shown. A tick icon in the front of the
selection indicates the selected choice.
1(1)
0.0 Hz
Ramp 1 Type Selector
0 Linear
1 Sine Ramp
Figure 15: Selections in a Parameter (Example)
2. Use the up or down arrow to browse through the selections.
1(1)
0.0 Hz
Ramp 1 Type Selector
0 Linear
1 Sine Ramp
Figure 16: Browsing through the Selections (Example)
3. Press OK at the required selection. The tick icon is moved to this selection.
1(1)
0.0 Hz
Ramp 1 Type Selector
0 Linear
1 Sine Ramp
Figure 17: Confirming the Selections (Example)
Changing Parameter Value
3.2.6.6
In the example, the parameter P 5.5.4.2 Ramp 1 Accel. Time is considered and
1. Go to the parameter P 5.5.4.2 Ramp 1 Accel. Time and press the OK button.
2. Press the OK button again to enter value edit screen. To go to the values before or after the decimals, use the left or right arrow button.
A black highlight on the digit indicates the location where the cursor is active.
3. Use the up or down arrow button of the Control Panel 2.0 OP2 to increase or decrease the value.
4. Press OK to confirm the changes.
Figure 18
shows all the screens relevant to change the value of a parameter.
Danfoss A/S © 2024.03
LOC
LOC
LOC
LOC
Figure 18
show the change of value from 3 s to 5 s.
AB413939445838en-000301 / 130R1254 |
33
