Table 9: Menu Screen
Menu
Quick Access
All Parameters
Events
Display Setting
Backup & Restore
Basic navigation handling techniques
To navigate through and within the different functionalities or parameter groups, use the navigation buttons of the Control Panel
l
2.0 OP2.
Use the Back button to navigate to a higher level, and the OK button to navigate to a lower level.
l

Parameter Group Screens and Overall Navigation

3.2.6.4

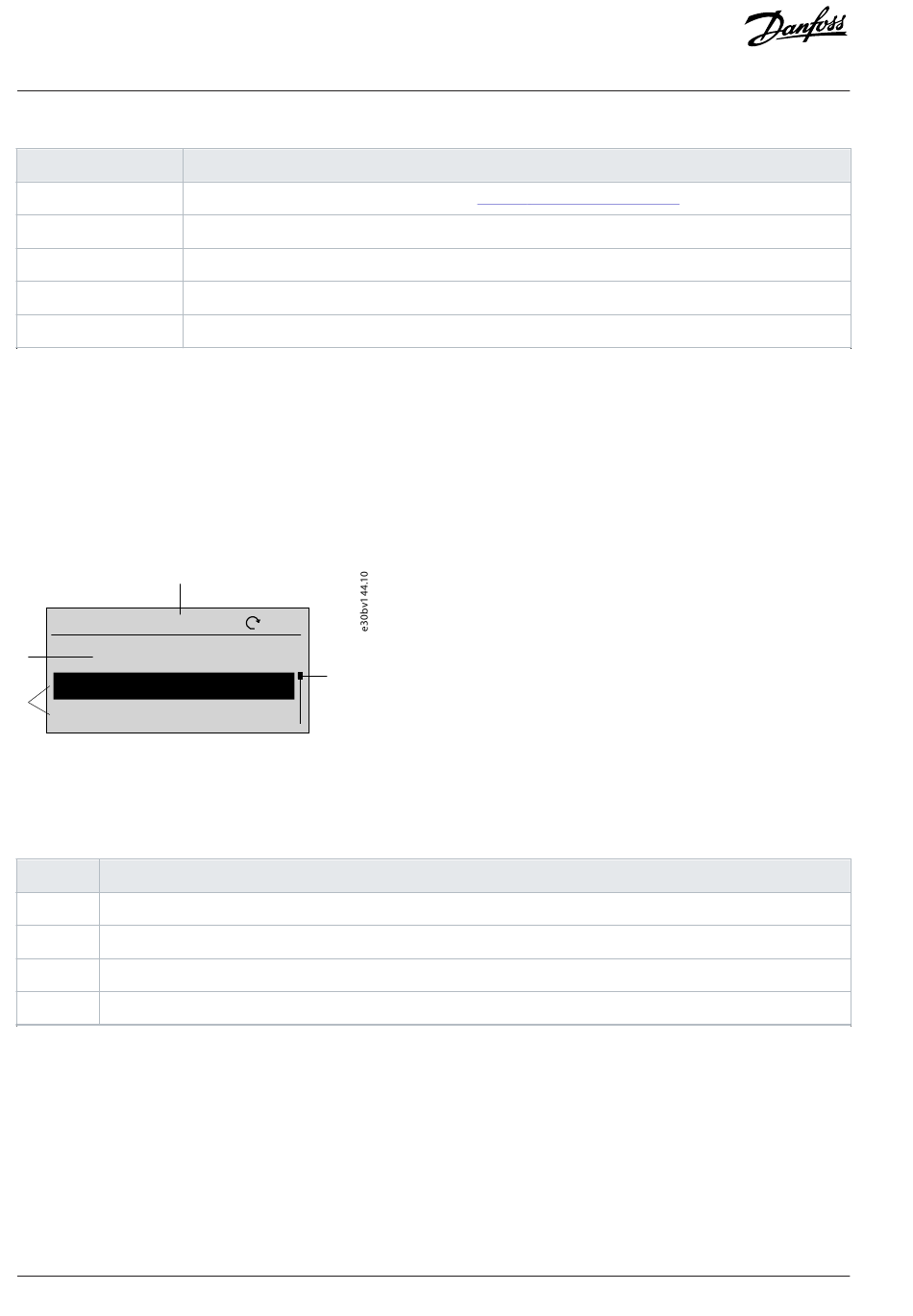

All Parameters menu includes all parameters for configuration. A typical parameter group screen is shown as below.
1
1(1) 0.0 Hz
All Parameters
2
1 Grid
3
2 Power conversion & DC
Figure 13: Parameter Group Screen
The following information is contained in the parameter group screen:
Table 10: Legend Table
Legend Description
1 Control state of the drive. The value in the middle without setpoint icon shows the output frequency.
2 Name of the menu, group, and parameter that is currently active in the drive.
3 Group, sub-group, or parameter list.
4 Scrollbar

Changing Selections in a Parameter

3.2.6.5
In this example, the parameter P 5.5.4.1 Ramp 1 Type Selectoris considered. When a parameter has selections, a black highlight is active
on the parameter index and name, as shown.
32
| Danfoss A/S © 2024.03
Function
Quick access for setting up a drive quickly. See
View and set the parameters.
Event list (including fault and warning that has occurred in the drive).
Set language and adjust the display backlight.
Backup and restore the drive information.
LOC
4
3.2.4.3.2 Quick Access Navigation.
