Replace MM LITE Power Supply Fuses

Fuses on the MM LITE power supply must be replaced if they become damaged.
Required Tools and Equipment
• Small flat-blade screwdriver.
• 5 x 20 mm, 250V, 10 A time-lag fuses (Littelfuse 218 or equivalent).
• 6.3 x 32 mm, 250V AC (125V DC), 10 A ceramic slow blow fuses (Littelfuse 326 or
equivalent).
Procedure
Power Entry Module
MagneMover LITE User Manual
Front View
Rear View

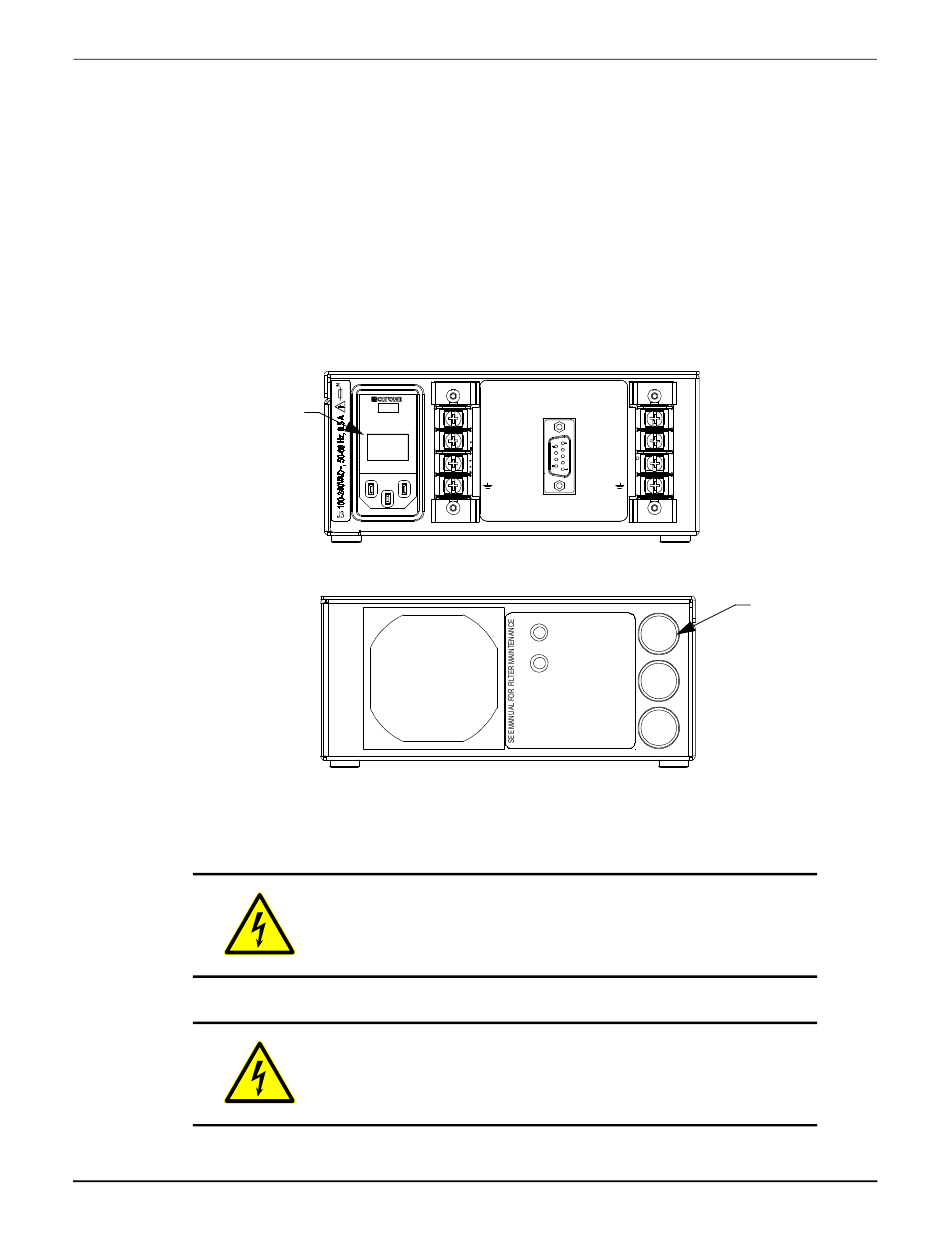

Figure 7-32: MM LITE Power Supply Fuse Locations
SHOCK HAZARD
115V AC, 6.8 A or 230V AC, 3.4 A
AC power must be disconnected before servicing.
SHOCK HAZARD
The power supply is double pole/neutral fused.
AC power must be disconnected before servicing.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
J1 J2
36 VDC 36 VDC
300W / 8A MAX 300W / 8A MAX
V+ V+
PROPULSION PROPULSION
V+ V+
LOGIC LOGIC
V- V-
RETURN RETURN
GND GND
J4 DC ENABLE
(SEE MANUAL FOR PINOUT)
F1
LOGIC
PROPULSION 1
T, 250V, 10A
PROPULSION
F2
PROPULSION 2
T, 250V, 10A
F3
LOGIC
T, 250V, 10A
Maintenance
Repair
DC Fuse
Holders
