5. Lift the linkage plate off the pucks.
M6 Shoulder Screw
Thrust Washer
Elastomer Washer
Flange Bearing
Linkage Plate
Thrust Washer
6. With both pucks in the fixture, hold the left puck in place and lift the right puck out of
the fixture and away from the left puck.
MagneMover LITE User Manual
(2X)
(2X)
(2X)
(2X)
(2X)

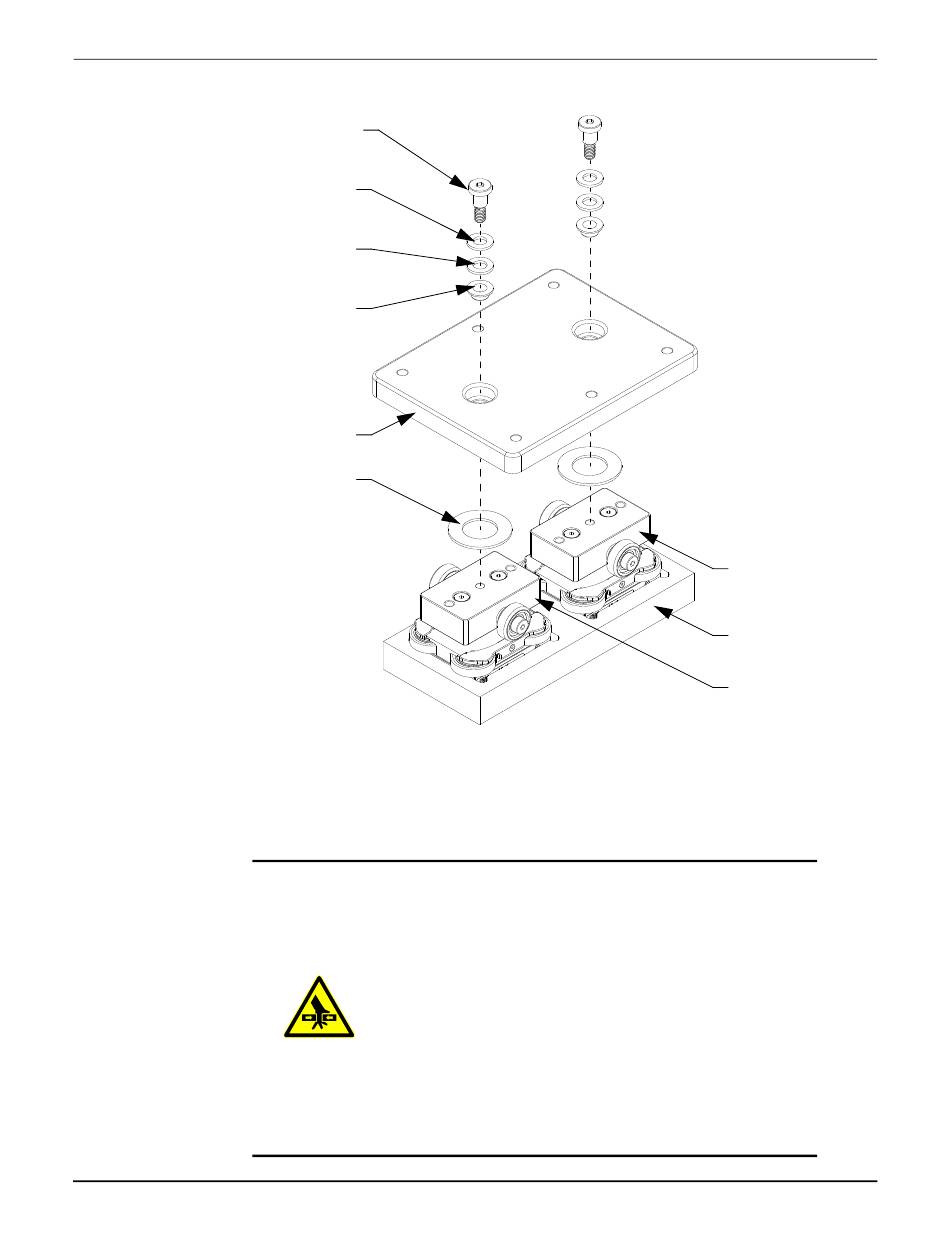

Figure 7-28: Remove Tandem Wheeled Puck Linkage Plate Assembly
PINCH/CRUSH HAZARD: Strong magnets in use.
To avoid injury from strong magnetic attractive
forces:
• Handle only one vehicle (puck) or magnet array at
a time.
• Do not place any body parts (for example, fingers)
between a magnet array and any ferrous material
or another magnet array.
• Vehicles (pucks) and magnet arrays not being used
must be secured individually in isolated packag-
ing.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Maintenance
Repair
Wheeled Puck
Installation
Fixture
Wheeled Puck
421
