Installation
Option Installation

Assemble Precision Rail Support Posts

Loosely assemble the precision rail support posts as shown
NOTE: This step can be skipped if the support posts are supplied preassembled.
Low Head Socket
Cap Screw (2X)
M8 x 16 mm SHC Screw
M8 Flat Washer
Post Mount Cap
1. Insert two M8 T-nuts into the channel on the top of the post mount and rotate into posi-
tion.
2. Loosely attach the support post to the post mount with two M8 x 16 mm SHC screws
and M8 washers. Finger-tighten then back off one-half turn to provide the parts a small
amount of movement relative to each other to allow adjustment.
3. Loosely attach the appropriate spine plate to the post mount with two M6 x 16 mm
Low Head SHC screws. Finger-tighten then back off one-half turn to provide the parts
a small amount of movement relative to each other to allow adjustment.
NOTE: Make sure that the rail mounting edge of the spine plate is oriented towards
282
M6 x 10 mm
(2X)
(2X)
M8 T-Nut
(2X)

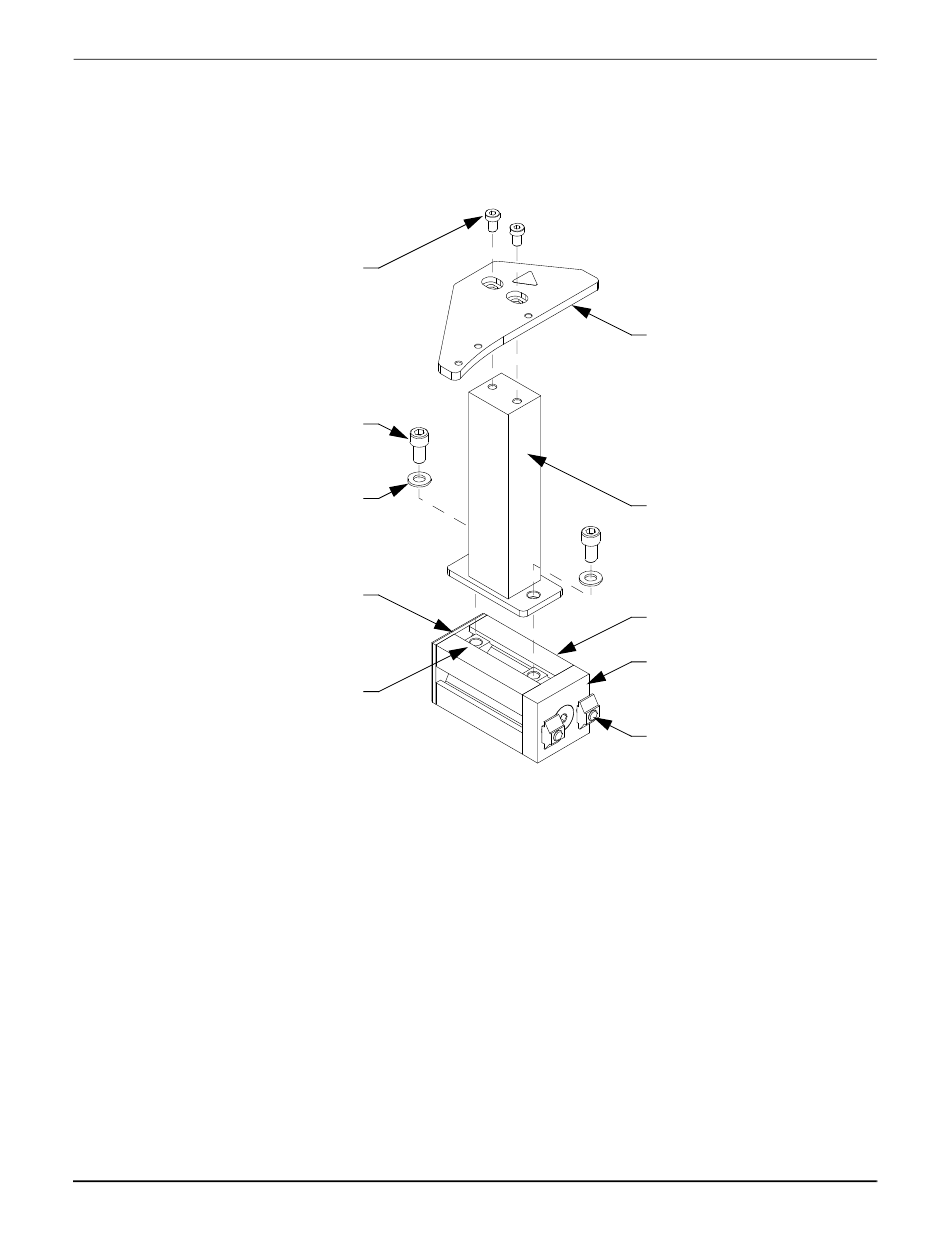

Figure 5-29: Precision Rail Support Post Assembly
the connector plate on the post mount.
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Figure 5-29.
Spine Plate
Support Post
Post Mount
Connector Plate
M8 T-Nut
M8 x 20 SHC Screw
(2X)
