MagneMover Transport System Options

Precision Rails

The precision rail option provides customized stainless steel or high carbon steel (typical) pre-
cision ground rails in place of the integral rails on the standard MagneMover LITE motors.
When using the precision rail option, MM LITE railless motors are used with a precision rail
that is aligned above the motors and supports the vehicles using precision sealed bearings.
Precision rail option specifications:
• Maximum acceleration: Up to 4 m/s
• Maximum velocity: 2 m/s.
• Maximum payload: Up to 2.5 kg (5 kg with dual array vehicle).
• Location repeatability: ±0.5 mm.
• Station repeatability: ±0.1 mm with calibration.
The precision rail option does not support the use of the MM LITE switches.
Spine Plate
Support Post
Post Mount

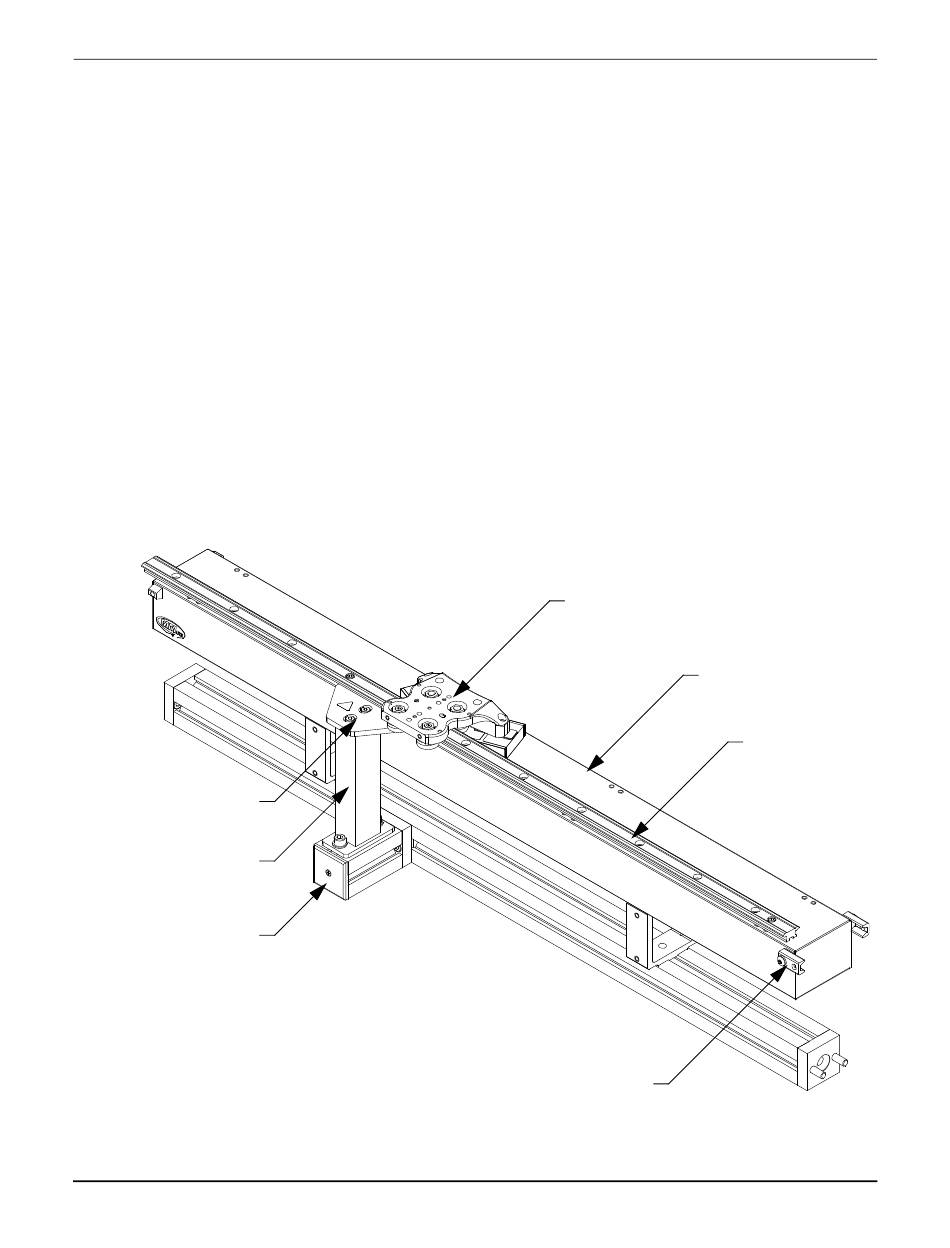

Figure 1-4: Detailed View of MagneMover LITE Precision Rail Option Components
• V-brace – Used for align and secure adjacent railless motors to each other.
MagneMover LITE User Manual
Railless Motor V-brace
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
MagneMover LITE Overview
2
in straights; payload dependent.
Vehicle
(Dual Array Shown)
Railless Motor
(1000 mm shown)
Introduction
Precision Rail
