Pallet; Precision Locator Glide Puck With Basic Pallet Mechanical Drawing - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Specifications and Site Requirements
Mechanical Specifications

Pallet

700-1663-00
18.50 2X 37.5±0.05
7.50
2X 50±0.03
65.0
2X 20.00
5.012
(5 H7) 7.000
5.000
2X 2.0
33.88
30.38

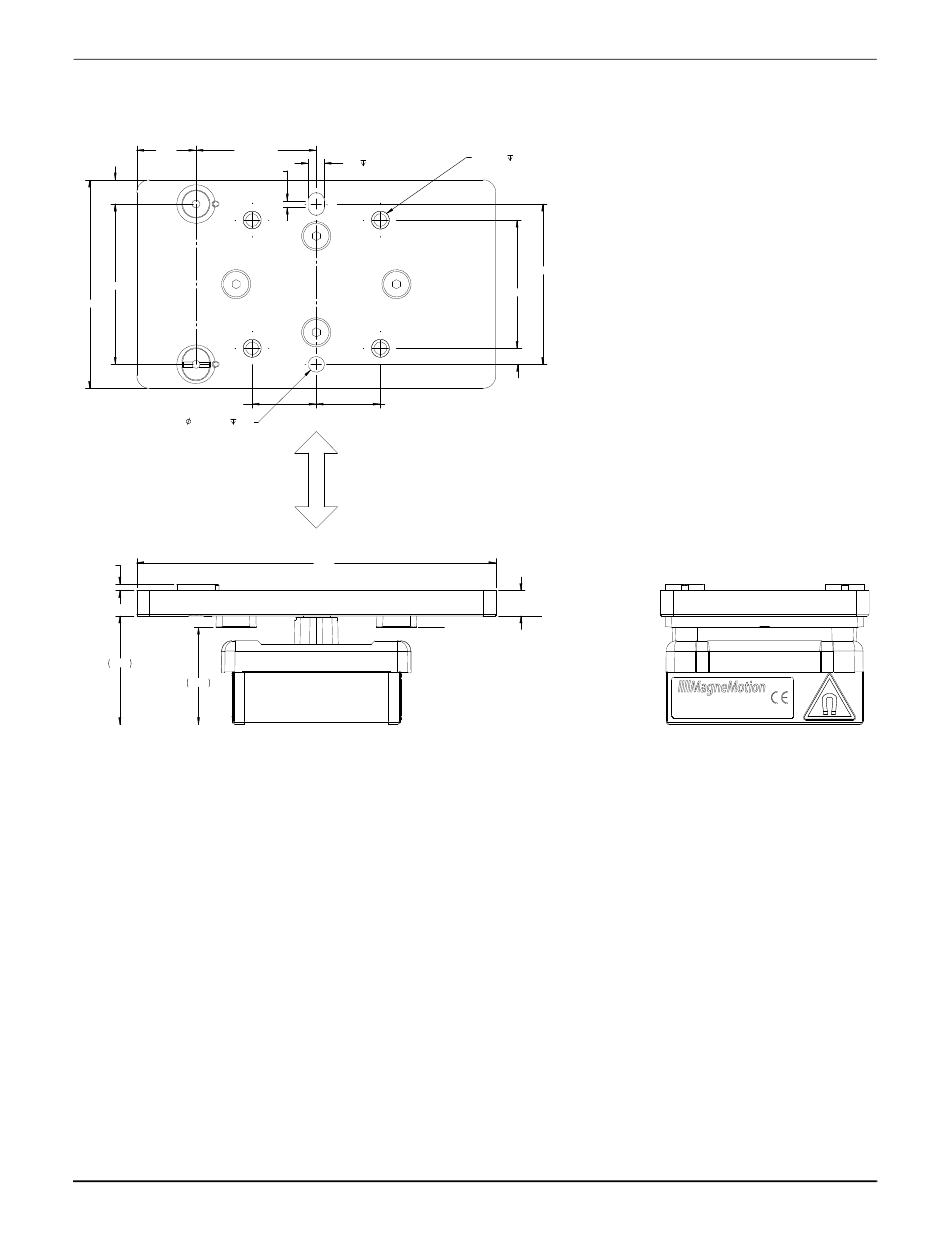

Figure 4-54: Precision Locator Glide Puck with Basic Pallet Mechanical Drawing
Exposed Materials
• 6061-T6 Aluminum, Hardcoat Anodized per MIL-A8625-F, Type III, Class 2, Black.
• 18-8 (A2) Hardened Stainless Steel with Thin Dense Chrome plating.
• Stainless Steel.
• 316/316L/316L #2 Stainless Steel.
• PEEK/PTFE.
• UHMW Polyethylene.
204
5.08
7.0
5.00
2.0
2X 20.00
DIRECTION OF MOTION
112.0
RUNNING SURFACE
ON MOTORS
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
4X M4x0.7 4MM LOCKING 304SS DRY FILM LUBE HELICOIL
(TORQUE SCREWS TO 11 IN-LBS MAX, NO LOCTITE)
C L
50.00
2X 40.00
2X 5.00
[0.313±0.002]
7.94±0.05
RUNNING SURFACE AT
PRECISION LOCATOR STATION
All Dimensions in Millimeters
MagneMotion
