3. Attach the parallel path legs at the appropriate locations (if not already installed) as
shown in
M8 T-Nut
(4X)
M8 x 25 mm Screw
A. Insert one M8 T-nut and rotate into position in the channel on the side of each
beam at the position for the leg. T-nuts must be inserted so that the spring steel
tabs are facing toward the beam, then rotated clockwise into place.
B. Insert one M8 T-nut and rotate into position in the channel on the top of the leg
to attach the beam.
C. Position the leg over the T-nuts and use a machinist square to make sure that it
is properly positioned.
D. Locate an angle bracket at each beam/leg junction, apply Loctite 243 to two
M8 x 25 mm screws per bracket and install. Tighten enough to secure the
bracket while still allowing it to move.
NOTE: Make sure that the angle bracket is configured for 50 mm use by
MagneMover LITE User Manual
Figure 5-3.
(4X)

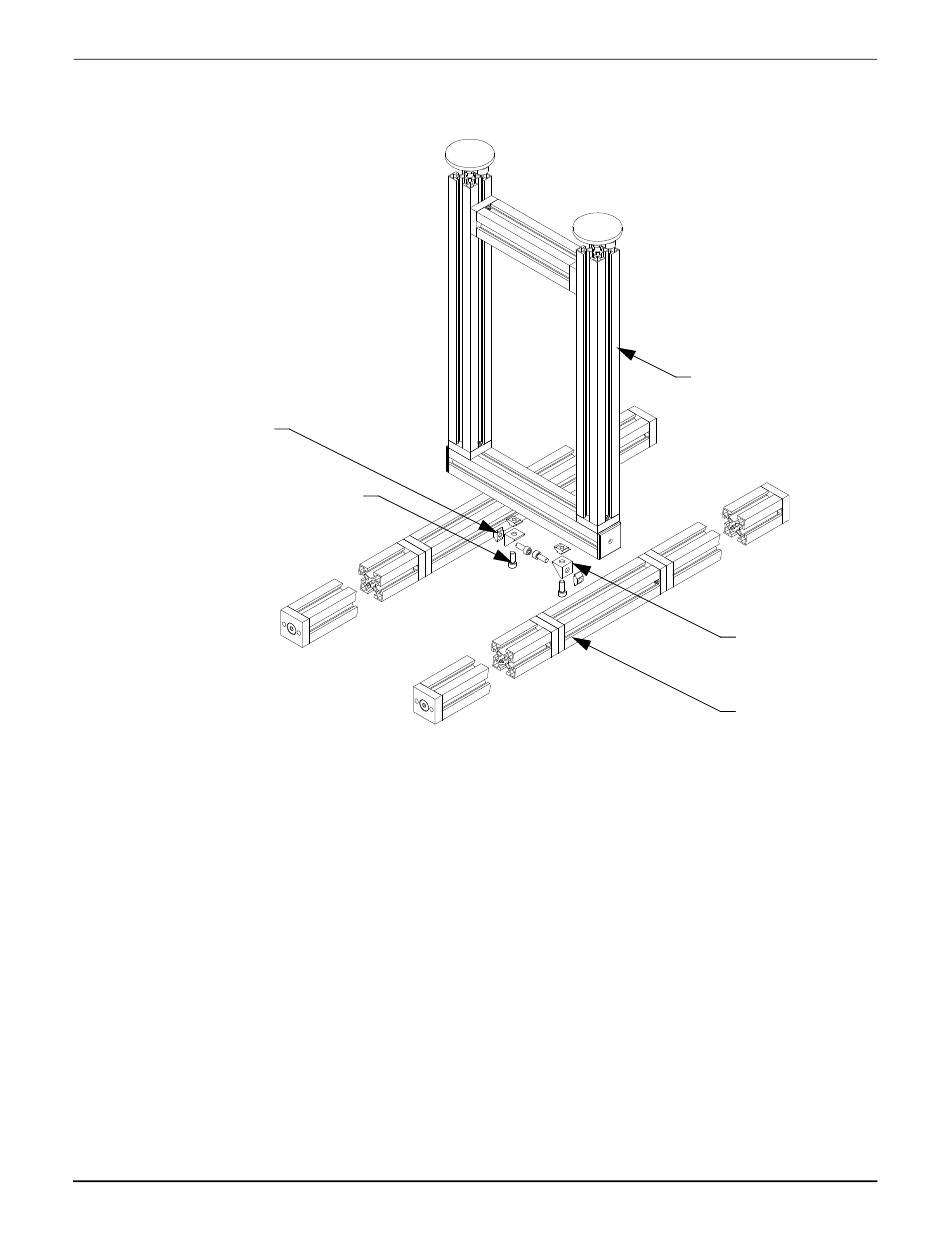

Figure 5-3: Legs on a Parallel Path Beam Assembly
placing the inserts into the bracket with the hole in the insert to the
outside of the bracket as shown in
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Transport System Installation
Leg Stand Assembly
Angle Bracket
(2X)
Beam
Figure 5-4.
Installation
