Switch Configuration

MM LITE
Straight Motor
MM LITE
Right Switch
Motor Gap
• Node Types at switch: Merge, Diverge.
• Provides a diverge from one path into two (single entry, curve exit, straight exit).
• Provides a merge of two paths into one (straight entry, curve entry, merged exit).
MagneMover LITE User Manual
Top View

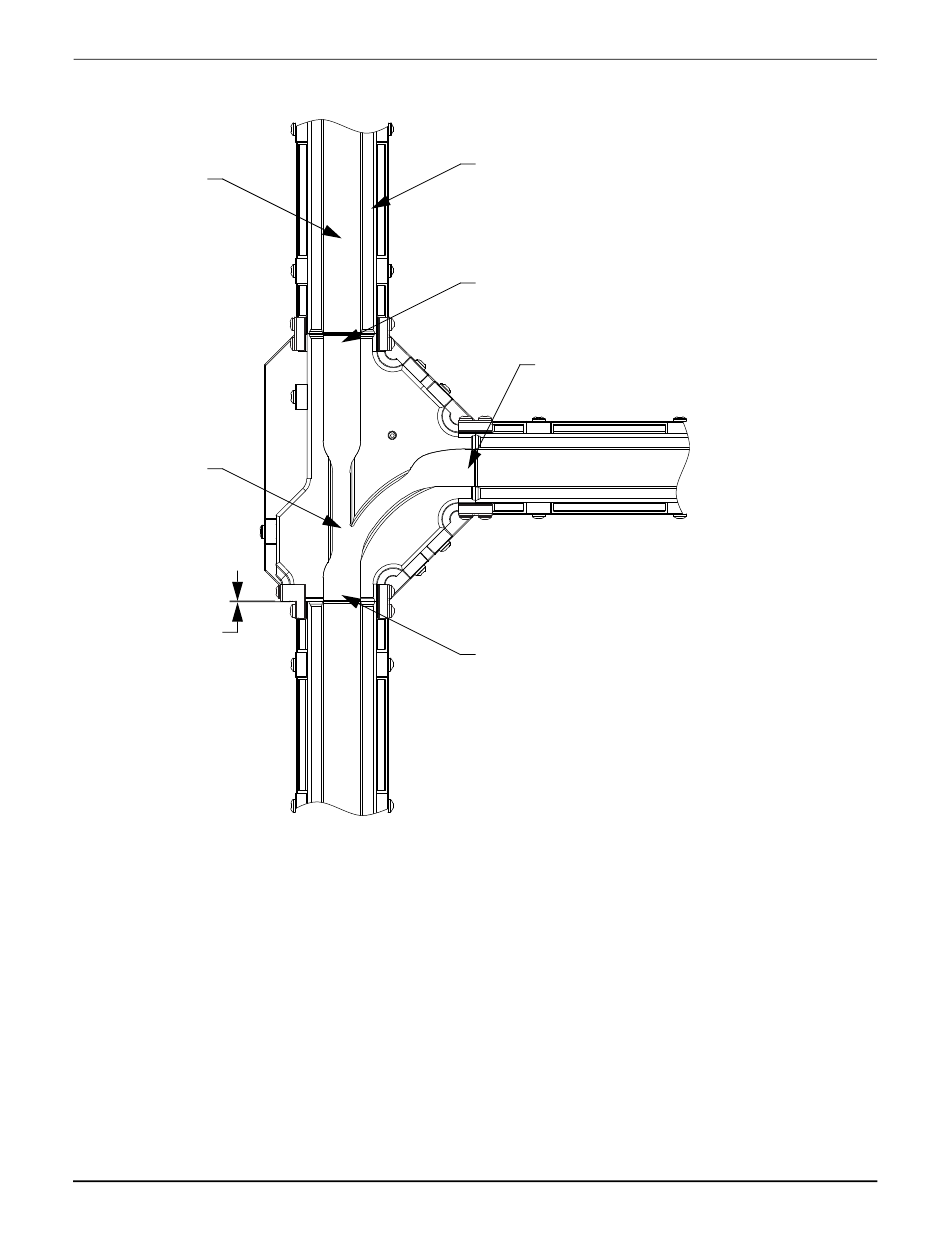

Figure 3-66: Switch Configuration
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Transport System Configuration
Rails
Straight Entry/Straight Exit
Curve Entry/Curve Exit
Merged Exit/Single Entry
Design Guidelines
