Precision Rail Lubrication Pump Connector; Precision Rail Lubrication Pump Controls And Indicators; Precision Rail Optional Lubricator Pump Control Pinout - Rockwell Automation MagneMotion MagneMover LITE Original Instructions Manual

Specifications and Site Requirements
Electrical Specifications

Precision Rail Lubrication Pump Connector

The pinouts for the connector on the lubrication pump and the mating cable are provided in
Table 4-34.

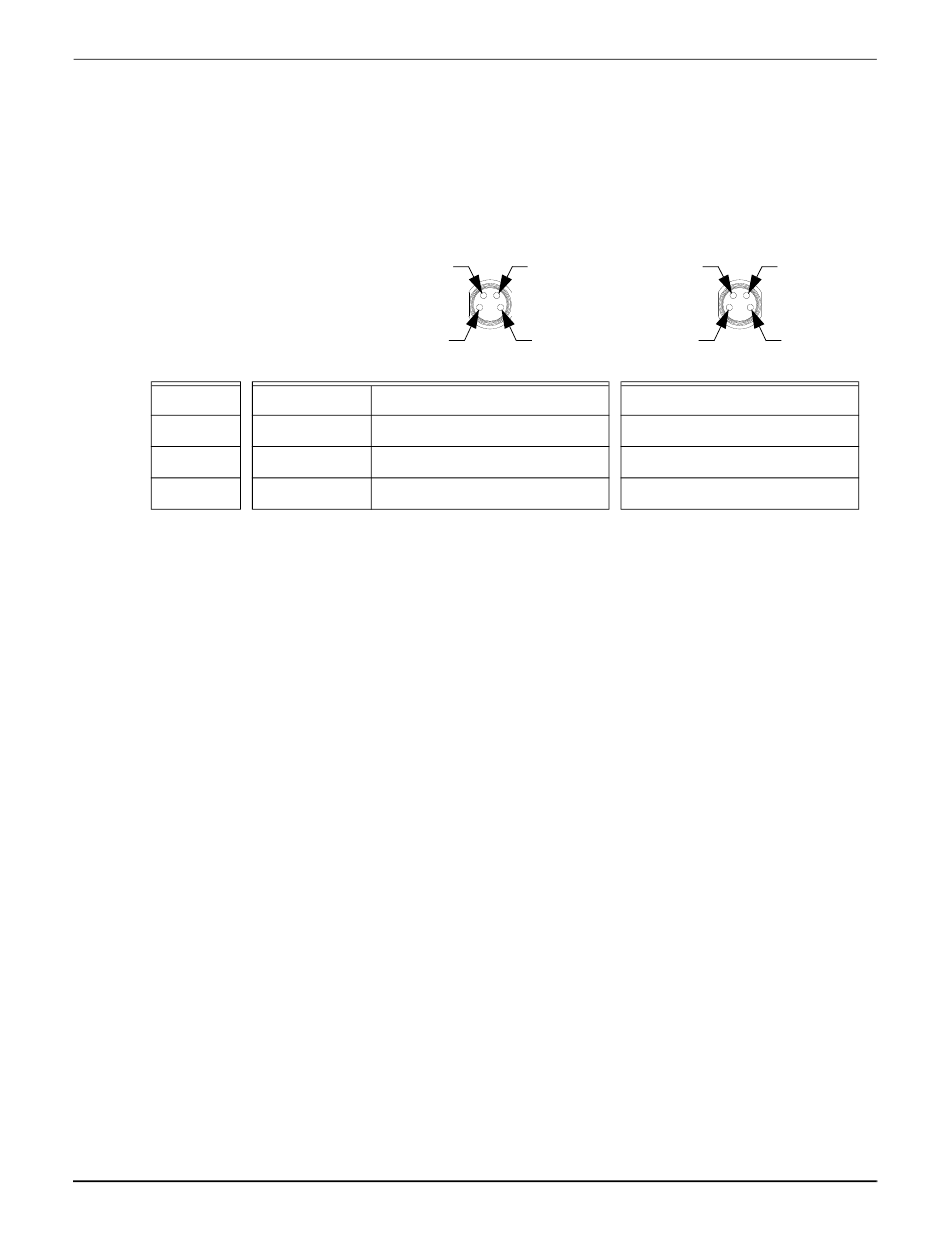

Table 4-34: Precision Rail Optional Lubricator Pump Control Pinout
+V DC
—
GND
—

Precision Rail Lubrication Pump Controls and Indicators

The lubrication pump has two status indicators on the body of the pump and an LCD status
display and button on the top, which is shown in
used to set the operating configuration and monitor the pump status, see the manufacturers
documentation for detailed information.
224
Control Cable
3
Individual
4
Wires M8, 4-Pin, Socket
Brn
Wht
Blu
Blk
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
2
1
1
2
3
4
Figure 4-64. The indicators and display are
Pump
2 3
1 4
M8, 4-Pin, Plug
1
2
3
4
MagneMotion
