Curved Motors
1.
Locate an inner cover against the bracket on the inside of the curve.
2.
Install two M5 x 8 mm screws to secure the cover.
3.
Locate an outer curve cover against the motor mount on the outside of the curve.
4.
Install two M5 x 8 mm screws to secure the cover.
5.
Tighten the four M5 screws to 1.6 N•m [14 in•lb] with a Phillips bit.
MagneMover LITE User Manual

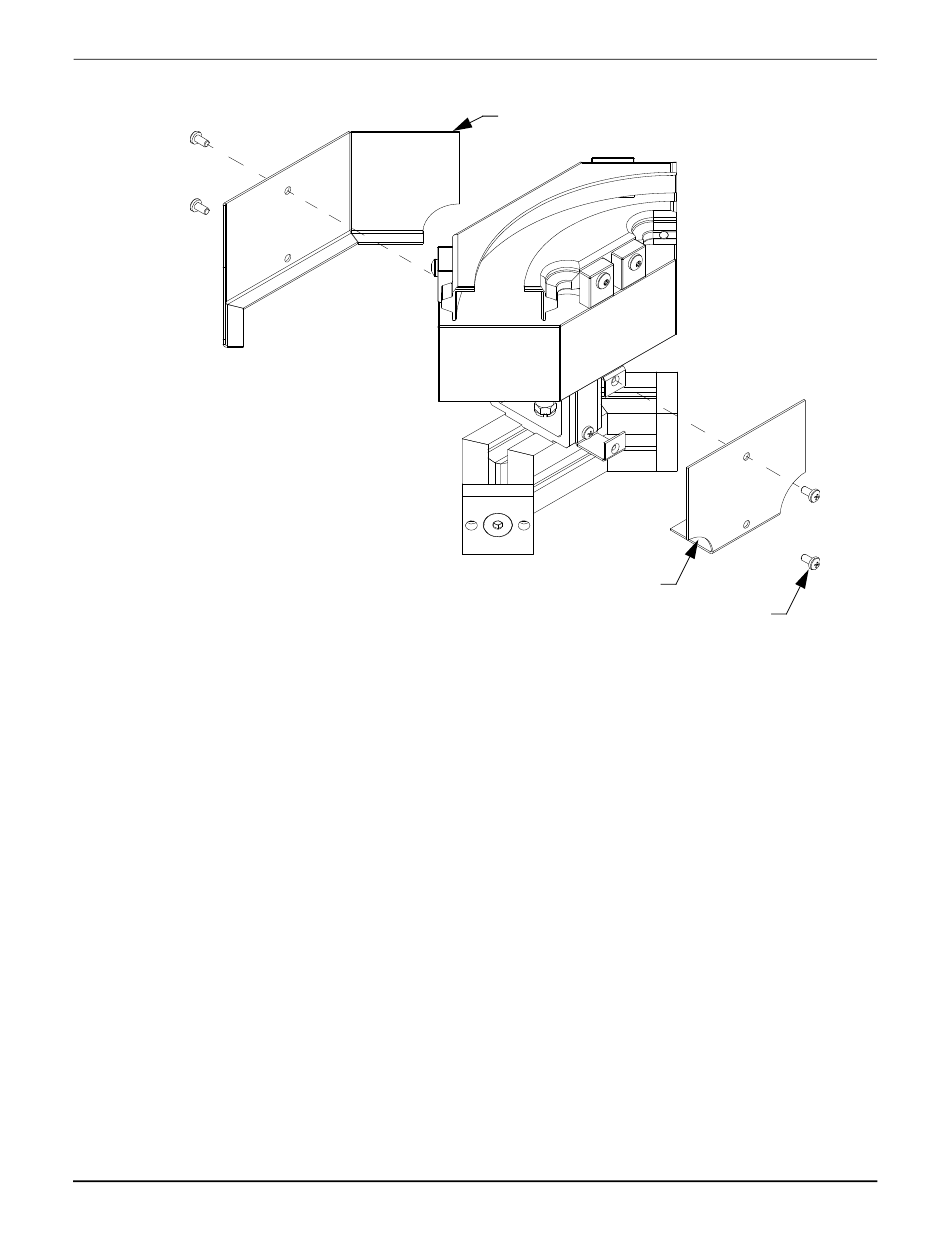

Figure 5-26: Installing Curved Motor Cable Chase Covers
Rockwell Automation Publication MMI-UM002F-EN-P - October 2022
Transport System Installation
Outer Cover
Inner Cover
M5 Screw
Installation
(4X)
279
